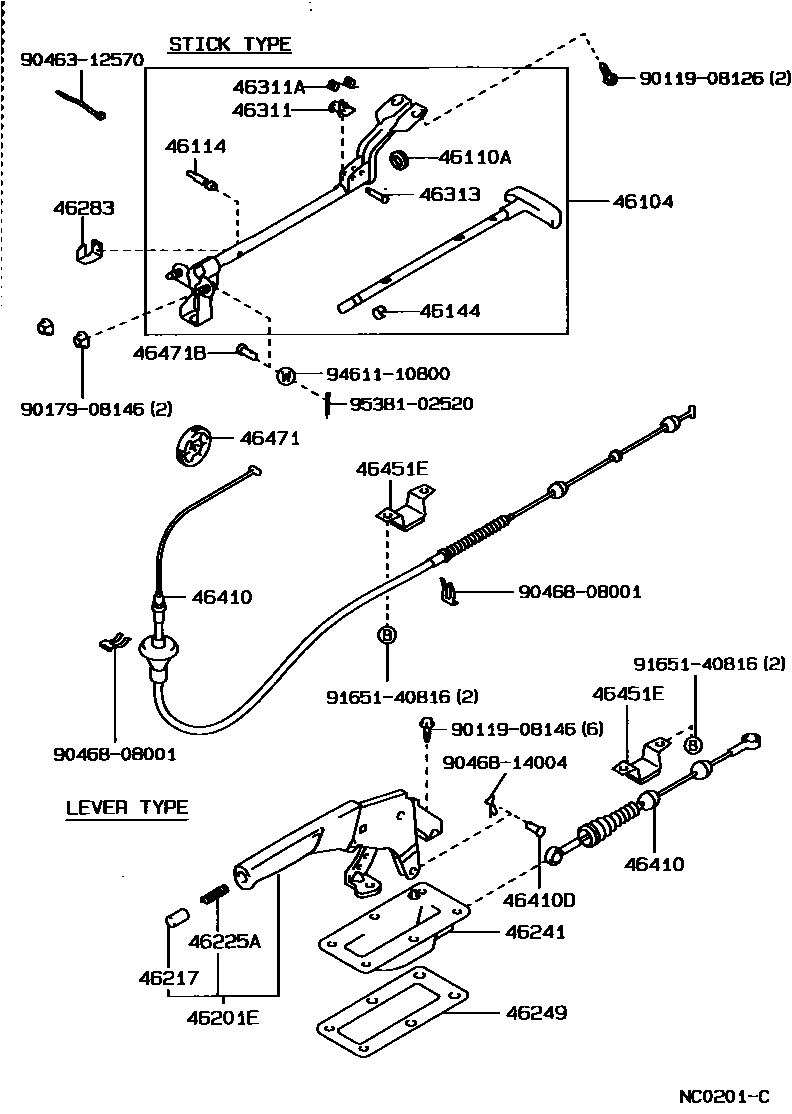

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

46104HANDLE SUB-ASSY, PARKING BRAKE CONTROL

main46104-30110iLS130..4H198709-199110

main46104-30120iYS132..4H198709-199110

46110ABUSH OR RING, O (FOR PARKING BRAKE PLUNGER)

main90386-11195iLS130,YS132..4H198709-199110

46114PIN, PARKING BRAKE PLUNGER

main46114-20010iLS130,YS132..4H198709-199110

46144ANTI-RATTLE, PARKING BRAKE PLUNGER

main46144-30020iLS130,YS132..4H198709-199110

46201PEDAL SUB-ASSY, PARKING BRAKE

main46201-30090iGS131,MS132,135..RHD..ATM198709-198908

main46201-30110iGS131,MS133,135..RHD..ATM198908-199110

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-30061-12iMS132..LHD;MS132..RHD..5F;LS130,YS132..4F198709-198803

MAROON,TRIM3#

main46201-30061-16iMS132..RHD..5F..SAL;MS132..LHD..(ROY,SAL)198709-198803

SABLE,TRIM4#

main46201-30061-24iMS132..LHD;MS132..RHD..5F;LS130,YS132..4F198709-198803

BLUE,TRIM8#

main46201-30062-12iMS132..LHD;MS132..RHD..5F;LS130,YS132..4F198803-199110

MAROON,TRIM3#

main46201-30062-14iMS132..LHD;MS132..RHD..5F;LS130,YS132..4F198803-199110

BLUE,TRIM8#

main46201-30062-16iMS132..RHD..5F..SAL;MS132..LHD..(ROY,SAL)198803-199110

SABLE,TRIM4#

main46201-30081-12iMS133,135..LHD198709-198803

MAROON,TRIM3#

main46201-30081-16iMS133,135..LHD198709-198803

SABLE,TRIM4#

main46201-30081-24iMS133,135..LHD198709-198803

BLUE,TRIM8#

main46201-30082-12iGS131,MS133..5F;MS133,135..LHD..4FC198803-199110

MAROON,TRIM3#

main46201-30082-14iMS133..5F;MS133..4FC..GCC;GS131,MS135..LHD198803-199110

BLUE,TRIM8#

main46201-30082-16iMS133..4FC..GCC;GS131,MS135..LHD;MS133..5F..(SAL,SALEX)198803-199110

SABLE,TRIM4#

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-10020-10iMS132..RHD..5F..SAL;MS13#..LHD..(ROY,SAL,SALEX)198709-198711

SABLE,TRIM4#

main46217-10020-20iMS132,135..LHD;MS132..RHD..5F;LS130,MS133,YS132..4F,4FC,5F198709-198711

BLUE,TRIM8#

main46217-10020-42iMS132,135..LHD;MS132..RHD..5F;LS130,MS133,YS132..4F,4FC,5F198709-198711

MAROON,TRIM3#

main46217-12020-06iMS133..4FC..GCC;MS132..RHD..5F..SAL;MS133..5F..(SAL,SALEX);GS131,MS132,135..LHD..(ROY,SAL)198803-199110

SABLE,TRIM4#

main46217-12020-D0iMS132..WG;MS132,135..LHD..ROY;LS130,MS132,133,YS132..(4F,4FC,5F)..(DLX,SALEX,STD)198807-198809

MAROON,TRIM3#

main46217-12020-J0iMS132,135..LHD;MS132..RHD..5F;MS133..4FC..GCC;GS131,LS130,MS133,YS132..(4F,5F)..(SAL,SALEX,STD)198807-199110

DARK BLUE,TRIM8#

main46217-20020-20iMS132..RHD..5F..SAL;MS13#..LHD..(ROY,SAL,SALEX)198711-198712

SABLE,TRIM4#

main46217-20020-42iMS132,135..LHD;MS132..RHD..5F;LS130,MS133,YS132..4F,4FC,5F198711-198712

MAROON,TRIM3#

main46217-20020-54iMS132,135..LHD;MS132..RHD..5F;LS130,MS133,YS132..4F,4FC,5F198711-198712

DARK BLUE,TRIM8#

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10085iMS132,135..LHD;MS132..RHD..5F;MS133..4FC..GCC;GS131,LS130,MS133,YS132..4F,5F198709-199110

46241BOOT, PARKING BRAKE LEVER

main46241-30010iMS132,135..LHD;MS132..RHD..5F;MS133..4FC..GCC;GS131,LS130,MS133,YS132..4F,5F198709-199110

46249SHIELD, PARKING BRAKE HOLE

main46249-30010iMS132,135..LHD;MS132..RHD..5F;MS133..4FC..GCC;GS131,LS130,MS133,YS132..4F,5F198709-199110

46283PROTECTOR, PARKING BRAKE SIGNAL SWITCH

main46283-30020iYS132..4H;GS131,LS130,MS13#..RHD..(4FC,4H,4HC)198709-199110

46311PAWL, PARKING BRAKE

main46311-30041×2iLS130,YS132..4H198709-199110

46311ASPRING(FOR PARKING BRAKE PAWL)

main90506-07007iGS131,MS132,135..RHD..ATM198709-198908

main90508-08106iLS130,YS132..4H198709-199110

46313PIN, PARKING BRAKE PAWL

main46313-40010×2iLS130,YS132..4H198709-199110

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-30310iGS131,MS133..5F;MS133,135..LHD..4FC198709-199110

main46410-30390iMS135..RHD198709-198710

main46410-30430iLS130..4H198709-199110

main46410-30450iYS132..4H198709-199110

main46410-30460iMS132..RHD..ATM198709-198908

main46410-30480iMS132..LHD;MS132..RHD..5F;LS130,YS132..4F198709-199110

main46410-30510iGS131,MS133,135..RHD..ATM198710-199110

46410DPIN(FOR PARKING BRAKE FRONT CABLE)

main90240-08021iMS132,135..LHD;MS132..RHD..5F;MS133..4FC..GCC;GS131,LS130,MS133,YS132..4F,5F198709-199110

main90249-10012iGS131,MS13#..RHD..ATM198709-199110

46451EBRACKET, CABLE GUIDE SUPPORT, NO.1

main46451-30080iMS132;MS133,135..LHD..4FC;GS131,LS130,MS133,YS132..MTM198709-199110

46471PULLEY, WIRE

main46471-30010iLS130,YS132..4H198709-199110

46471BPIN, W/HOLE(FOR WIRE PULLEY SET)

main90240-08062iLS130,YS132..4H198709-199110

9011908126

main90119-08126

9011908146

main90119-08146

9017908146

main90179-08146

9046312570

main90463-12570

9046808001

main90468-08001

9046814004

main90468-14004

9165140816

main91651-40816

9461110800

main94611-10800

9538102520

main95381-02520
