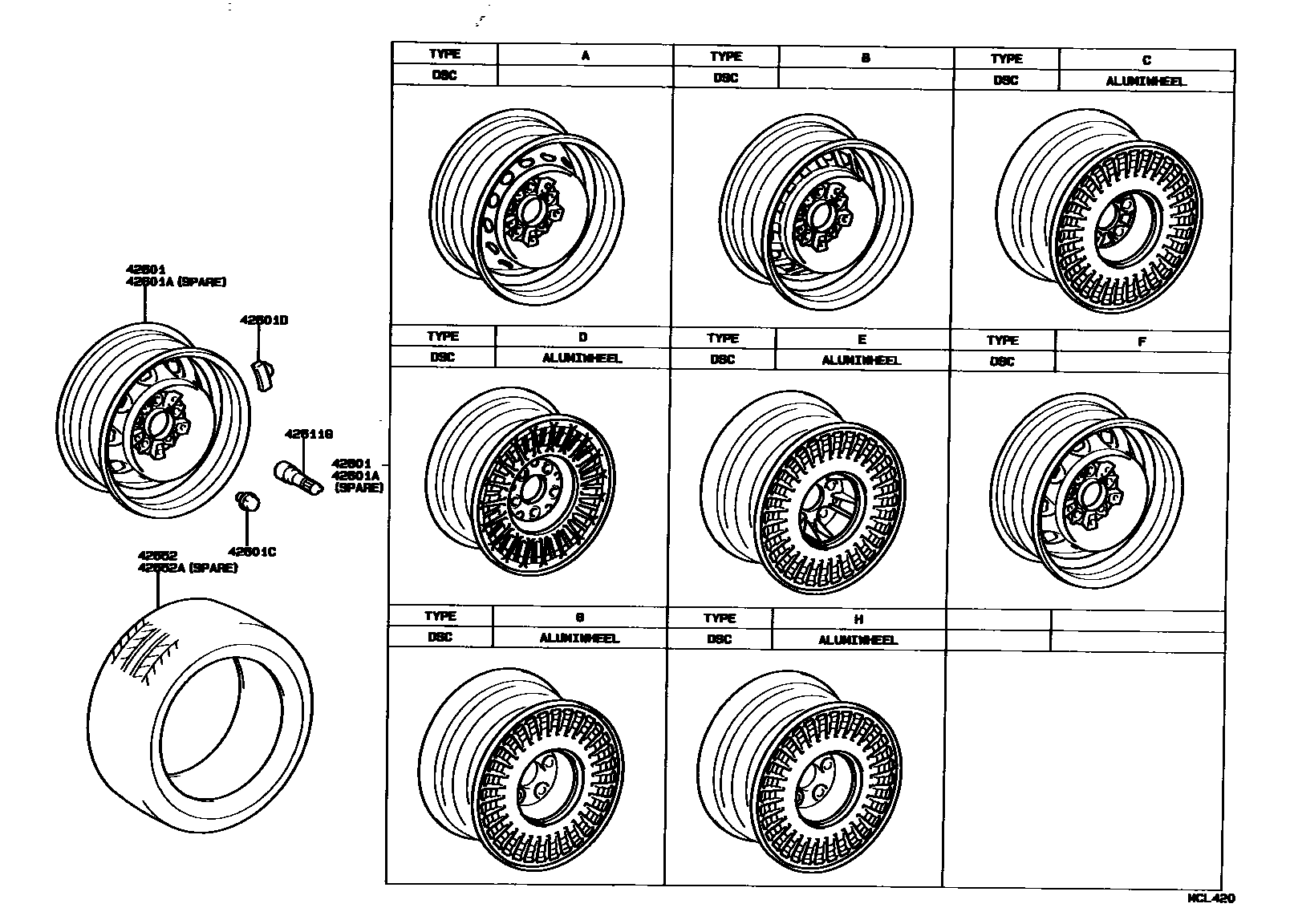

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
5JX14,TYPE F,SILVER
5.5JX14,TYPE A,W/TUBE,SILVER
main42611-30440-03×4iLS130,MS132,YS132..4F,4H; MS132,135..SED..(4FC,4HC,5F)..GEN;MS132,133..(HT,SED)..(SAL,SALEX)..GCC198709-198802
5.5JX14,TYPE B,DARK SILVER
main42611-30450-03×4iLS130,MS132,YS132..4F,4H; MS132,135..SED..(4FC,4HC,5F)..GEN;MS132,133..(HT,SED)..(SAL,SALEX)..GCC198709-198802
5.5JX14,TYPE A,DRAK SILVER
5.5JJX14,TYPE D,PHILIPPINE SPEC,ALUMINUM WHEEL
6.5JJX15,TYPE E
6.5JJX15,TYPE G, STEEL,SILVER,040 ,166 ,167 ,202 ,3E6 ,4H6 ,8E6 ,869; 6.5JJX15,TYPE G, STEEL,SILVER,050 ,166 ,182 ,202 ,3E6 ,4H6 ,8G2 ,869
15X6.5JJ,TYPE H
14X5.5JJ,TYPE D
14X5.5JJ,TYPE D
14X5.5JJ,TYPE D,ALUMINUM WHEEL
42601AWHEEL, DISC (FOR SPARE)
5JX14,TYPE F,SILVER
5.5JX14,TYPE A,SILVER
5.5JX14,TYPE B,DARK SILVER
main42611-30450-03iLS130,MS132,YS132..4F,4H; MS132,135..SED..(4FC,4HC,5F)..GEN;MS132,133..(HT,SED)..(SAL,SALEX)..GCC198709-198802
5.5JX14,TYPE A,DRAK SILVER
5.5JJX14,TYPE D,PHILIPPINE SPEC,ALUMINUM WHEEL
6.5JJX15,TYPE E
15X6.5JJ,TYPE H
14X5.5JJ,TYPE D
14X5.5JJ,TYPE D
14X5.5JJ,TYPE D
42601CNUT, HUB (FOR AXLE)
main90942-01062×20iMS132..LHD..SED..(ROY,SAL)..GEN; MS132..WG;MS132..SED..SAL..GCC;MS132..RHD..(ROY,SAL); MS133;MS135..GEN198709-198809
W(ALUMINUM WHEEL)
42601DWEIGHT, BALANCE (FOR DISC WHEEL)
20G,T=8
30G,T=10
40G,T=9.5
50G,T=9.5
60G,T=9.5
70G,T=9.5
80G,T=9.5
10G,T=7.5
main90942-03092iMS132..LHD..SED..(ROY,SAL)..GEN; MS132..WG;MS132..SED..SAL..GCC;MS132..RHD..(ROY,SAL); MS133;MS135..GEN198709-198809
10G,W(ALUMINUM WHEEL)
main90942-03093iMS132..LHD..SED..(ROY,SAL)..GEN; MS132..WG;MS132..SED..SAL..GCC;MS132..RHD..(ROY,SAL); MS133;MS135..GEN198709-198809
20G,W(ALUMINUM WHEEL)
main90942-03094iMS132..LHD..SED..(ROY,SAL)..GEN; MS132..WG..GEN;MS132..SAL..GCC;MS132..RHD..(ROY,SAL); MS133;MS135..GEN198809-198908
30G,W(ALUMINUM WHEEL)
main90942-03095iMS132..LHD..SED..(ROY,SAL)..GEN; MS132..WG..GEN;MS132..SAL..GCC;MS132..RHD..(ROY,SAL); MS133;MS135..GEN198809-198908
40G,W(ALUMINUM WHEEL)
main90942-03096iMS132..LHD..SED..(ROY,SAL)..GEN; MS132..WG..GEN;MS132..SAL..GCC;MS132..RHD..(ROY,SAL); MS133;MS135..GEN198809-198908
50G,W(ALUMINUM WHEEL)
main90942-03097iMS132..LHD..SED..(ROY,SAL)..GEN; MS132..WG;MS132..SED..SAL..GCC;MS132..RHD..(ROY,SAL); MS133;MS135..GEN198709-198809
60G,W(ALUMINUM WHEEL)
15G
25G
35G
45G
55G
65G
75G
main90942-03146iMS132..SED..(ROY,SAL); MS132..WG;MS133..SAL..GEN; MS133..GCC;MS135..GEN; MS133..STD198908-199110
10G,W(ALUMINUM WHEEL)
main90942-03147iMS132..SED..(ROY,SAL); MS132..WG;MS133..SAL..GEN; MS133..GCC;MS135..GEN; MS133..STD198908-199110
15G,W(ALUMINUM WHEEL)
main90942-03148iMS132..SED..(ROY,SAL); MS132..WG;MS133..SAL..GEN; MS133..GCC;MS135..GEN; MS133..STD198908-199110
20G,W(ALUMINUM WHEEL)
main90942-03149iMS132..SED..(ROY,SAL); MS132..WG;MS133..SAL..GEN; MS133..GCC;MS135..GEN; MS133..STD198908-199110
25G,W(ALUMINUM WHEEL)
main90942-03150iMS132..SED..(ROY,SAL); MS132..WG;MS133..SAL..GEN; MS133..GCC;MS135..GEN; MS133..STD198908-199110
30G,W(ALUMINUM WHEEL)
main90942-03151iMS132..SED..(ROY,SAL); MS132..WG;MS133..SAL..GEN; MS133..GCC;MS135..GEN; MS133..STD198908-199110
35G,W(ALUMINUM WHEEL)
40G
main90942-03153iMS132..SED..(ROY,SAL); MS132..WG;MS133..SAL..GEN; MS133..GCC;MS135..GEN; MS133..STD198908-199110
45G,W(ALUMINUM WHEEL)
main90942-03154iMS132..SED..(ROY,SAL); MS132..WG;MS133..SAL..GEN; MS133..GCC;MS135..GEN; MS133..STD198908-199110
50G,W(ALUMINUM WHEEL)
main90942-03155iMS132..SED..(ROY,SAL); MS132..WG;MS133..SAL..GEN; MS133..GCC;MS135..GEN; MS133..STD198908-199110
55G,W(ALUMINUM WHEEL)
main90942-03156iMS132..SED..(ROY,SAL); MS132..WG;MS133..SAL..GEN; MS133..GCC;MS135..GEN; MS133..STD198908-199110
60G,W(ALUMINUM WHEEL)
5G
main90942-03167iMS132..SED..(ROY,SAL); MS132..WG;MS133..SAL..GEN; MS133..GCC;MS135..GEN; MS133..STD198908-199110
5G,W(ALUMINUM WHEEL)
main90942-03187iMS132..LHD..SED..(ROY,SAL)..GEN; MS132..WG..GEN;MS132..SAL..GCC;MS132..RHD..(ROY,SAL); MS133;MS135..GEN198809-198908
7.5G,W(ALUMINUM WHEEL)
main90942-03188iMS132..LHD..SED..(ROY,SAL)..GEN; MS132..WG..GEN;MS132..SAL..GCC;MS132..RHD..(ROY,SAL); MS133;MS135..GEN198809-198908
12.5G,W(ALUMINUM WHEEL)
main90942-03189iMS132..LHD..SED..(ROY,SAL)..GEN; MS132..WG..GEN;MS132..SAL..GCC;MS132..RHD..(ROY,SAL); MS133;MS135..GEN198809-198908
17.5G,W(ALUMINUM WHEEL)
22.5G
27.5G
main90942-03192iMS132..LHD..SED..(ROY,SAL)..GEN; MS132..WG..GEN;MS132..SAL..GCC;MS132..RHD..(ROY,SAL); MS133;MS135..GEN198809-198908
32.5G,W(ALUMINUM WHEEL)
main90942-03193iMS132..LHD..SED..(ROY,SAL)..GEN; MS132..WG..GEN;MS132..SAL..GCC;MS132..RHD..(ROY,SAL); MS133;MS135..GEN198809-198908
37.5G,W(ALUMINUM WHEEL)
7.5G,T=7.5
12.5G,T=7.5
17.5G,T=9.5
22.5G,T=9.5
27.5G,T=9.5
32.5G,T=9.5
37.5G,T=9.5
main90942-03208iMS132..SED..(ROY,SAL); MS132..WG;MS133..SAL..GEN; MS133..GCC;MS135..GEN; MS133..STD198908-199110
7.5G,T=6.1,W(ALUMINUM WHEEL)
main90942-03209iMS132..SED..(ROY,SAL); MS132..WG;MS133..SAL..GEN; MS133..GCC;MS135..GEN; MS133..STD198908-199110
12.5G,T=7.0,W(ALUMINUM WHEEL)
main90942-03210iMS132..SED..(ROY,SAL); MS132..WG;MS133..SAL..GEN; MS133..GCC;MS135..GEN; MS133..STD198908-199110
17.5G,T=8.0,W(ALUMINUM WHEEL)
main90942-03211iMS132..SED..(ROY,SAL); MS132..WG;MS133..SAL..GEN; MS133..GCC;MS135..GEN; MS133..STD198908-199110
22.5G,T=8.0,W(ALUMINUM WHEEL)
main90942-03212iMS132..SED..(ROY,SAL); MS132..WG;MS133..SAL..GEN; MS133..GCC;MS135..GEN; MS133..STD198908-199110
27.5G,T=8.0,W(ALUMINUM WHEEL)
main90942-03213iMS132..SED..(ROY,SAL); MS132..WG;MS133..SAL..GEN; MS133..GCC;MS135..GEN; MS133..STD198908-199110
32.5G,T=8.0,W(ALUMINUM WHEEL)
main90942-03214iMS132..SED..(ROY,SAL); MS132..WG;MS133..SAL..GEN; MS133..GCC;MS135..GEN; MS133..STD198908-199110
37.5G,T=8.0,W(ALUMINUM WHEEL)
42611GVALVE (FOR TUBELESS TIRE)
42652TIRE
6.40-14-6
185SR14,W(TUBE)
185/80R14 90S,W/TUBE
6.95-14-6,W(TUBE)
185SR14
195/70HR14
205/65R15 93H
185/80R14 90S
195/70R14 90H
205/65R15 93H
6.95-14-4
42652ATIRE (FOR SPARE)
6.40-14-6
185SR14,W(TUBE)
185/80R14 90S,W/TUBE
6.95-14-6,W(TUBE)
185SR14
195/70HR14
205/65R15 93H
185/80R14 90S
195/70R14 90H
205/65R15 93H
6.95-14-4
7 parts on this diagram · 2 diagrams in section
