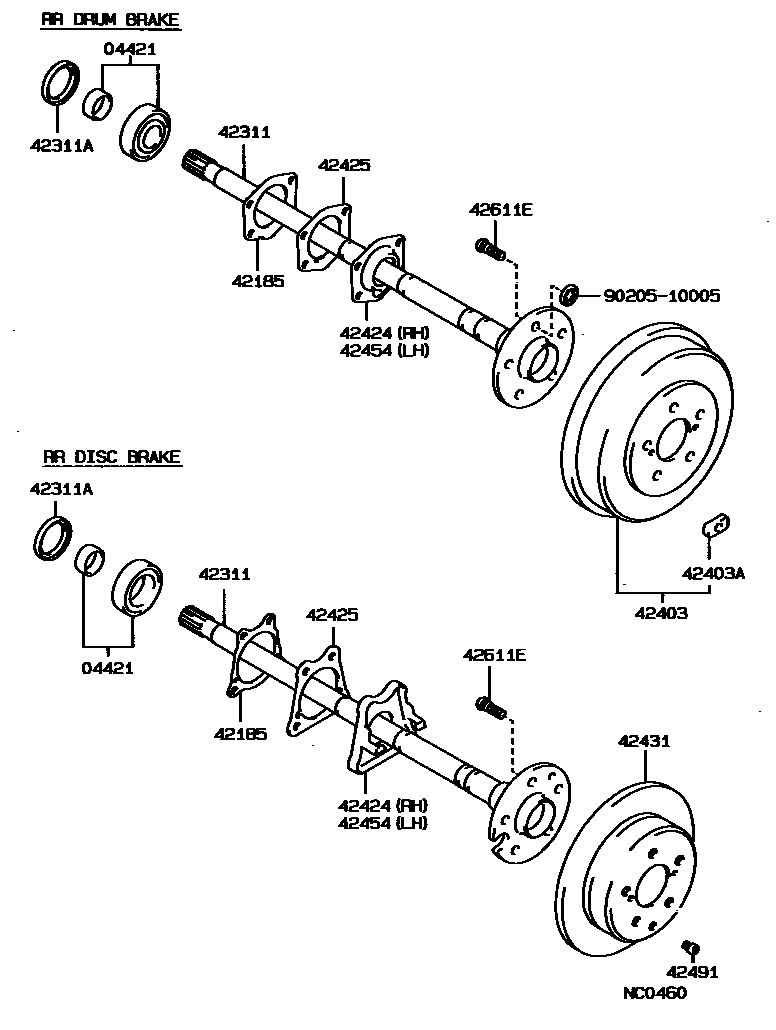

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1 0004 1 0005 1

04421BEARING KIT, REAR AXLE SHAFT

main04421-30030×2iMS132..RHD;GS131,LS130,YS132;MS132..LHD..SED..(DLX,SAL,STD)198709-198908

main04421-30051iMS132..WG198709-198908

main04421-30060×2iMS132..ROY198709-199110

W(RR DISC BRAKE)

42185GASKET, REAR AXLE HOUSING END

main42185-22030×2iGS131,MS133,135198709-199110

main42185-30061×2iLS130,MS132,YS132..DLX,SAL,STD198709-199110

main42185-30090×2iMS132..ROY198709-199110

42311SHAFT, REAR AXLE

main42311-30070×2iLS130,MS132,YS132..SED..(DLX,SAL,STD)198908-199001

main42311-30071×2iLS130,MS132,YS132..SED..(DLX,SAL,STD)199001-199110

main42311-30080×2iMS132..ROY198908-199001

main42311-30081×2iMS132..ROY199001-199110

main42311-30100×2iGS131,MS133,135198709-199110

main42311-31020×2iMS132..WG198709-198908

main42311-31021×2iMS132..WG199001-199110

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-43003×2iGS131,MS133,135198709-199110

main90311-52059×2iLS130,MS132,YS132..SED198709-199110

main90311-58118×2iMS132..WG198709-199110

42403DRUM SUB-ASSY, REAR BRAKE

main42431-30111×2iLS130,MS132,YS132..DLX,SAL,STD198709-199110

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01100iLS130,MS132,YS132..DLX,SAL,STD198709-199110

40.5G

main90937-01117iLS130,MS132,YS132..DLX,SAL,STD198709-199110

10G

main90937-01118iLS130,MS132,YS132..DLX,SAL,STD198709-199110

20G

main90937-01119iLS130,MS132,YS132..DLX,SAL,STD198709-199110

30G

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42405-30010iMS132..ROY198709-199110

main42424-30040iLS130,MS132,YS132..SED..(DLX,SAL,STD)198709-199110

main42424-31010iMS132..WG198709-199110

42425GASKET, REAR AXLE BEARING RETAINER

main42425-30031×2iLS130,MS132,YS132..DLX,SAL,STD198709-199110

main42425-30040×2iMS132..ROY198709-199110

42431DISC, REAR

main42431-30100×2iMS132..ROY198709-199110

main42431-30120×2iGS131,MS133,135198709-199110

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42406-30010iMS132..ROY198709-199110

main42424-30040iLS130,MS132,YS132..SED..(DLX,SAL,STD)198709-199110

main42424-31010iMS132..WG198709-199110

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020×2iMS132..ROY;GS131,MS133,135198709-199110

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02047×10iGS131,LS130,MS13#,YS132198709-199110

9020510005

main90205-10005

13 parts on this diagram · 5 diagrams in section
