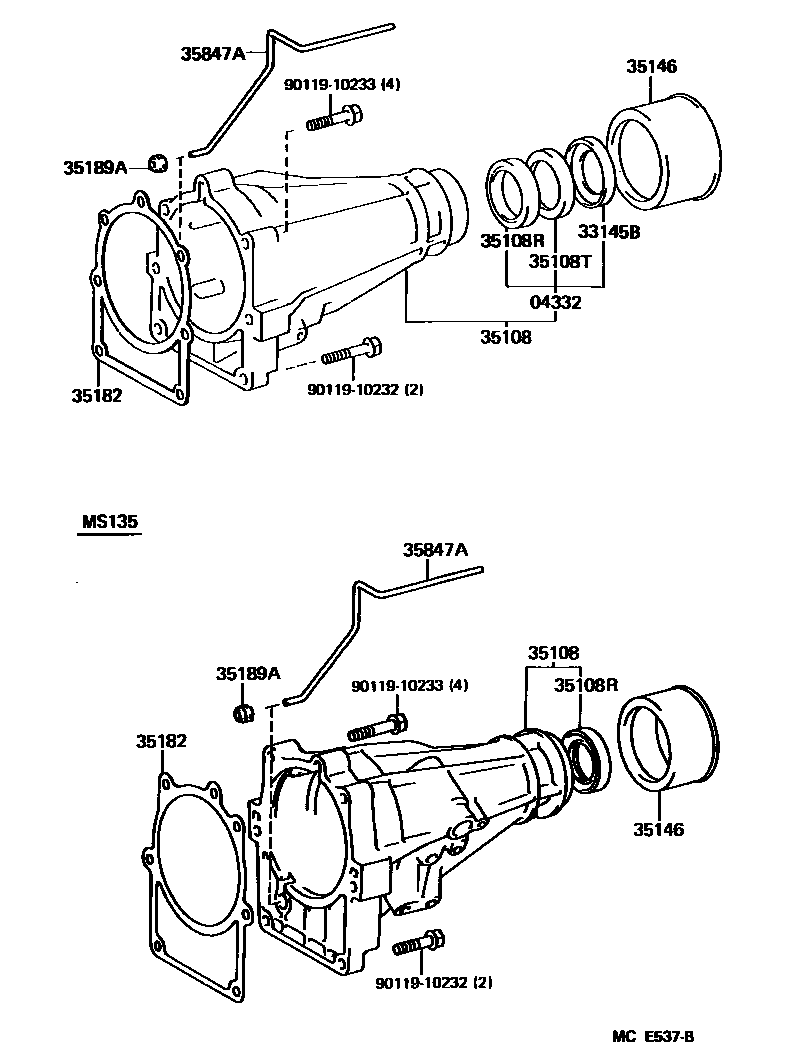

EXTENSION HOUSING (ATM)

04332SEAL KIT, OIL(FOR AUTOMATIC EXTENSION HOUSING)

main04332-30030iMS132,133..ATM198709-198807

33145BRETAINER, EXTENSION HOUSING DUST SEAL

main33145-30010iGS131,MS132,133..ATM198709-199110

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-30092iMS132,133..ATM198709-198807

main35108-30110iMS135198709-198807

main35108-30111iMS135198807-199110

main35108-30130iGS131,MS132,133..ATM198807-199110

35108RSEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90311-38030iGS131,MS132,133..ATM198804-199110

main90311-38040iMS132,133..ATM198709-198804

main90311-40001iMS135198709-199110

35108TSEAL, DUST (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90303-38010iGS131,MS132,133..ATM198709-199110

35146DEFLECTOR, EXTENSION HOUSING DUST (ATM)

main33146-30010iMS132,133..ATM198709-198710

35182GASKET, EXTENSION HOUSING (ATM)

main35182-22010iGS131,MS13#..ATM198709-199008

main35182-28010iMS135199008-199012

35189AGASKET, EXTENSION HOUSING BUSH APPLY TUBE

main35189-30010iGS131,MS13#..ATM198709-199110

35847ATUBE, EXTENSION HOUSING BUSH APPLY

main35847-30020iGS131,MS13#..ATM198709-199110

9011910232

main90119-10232

9011910233

main90119-10233

11 parts on this diagram · 1 diagram in section
