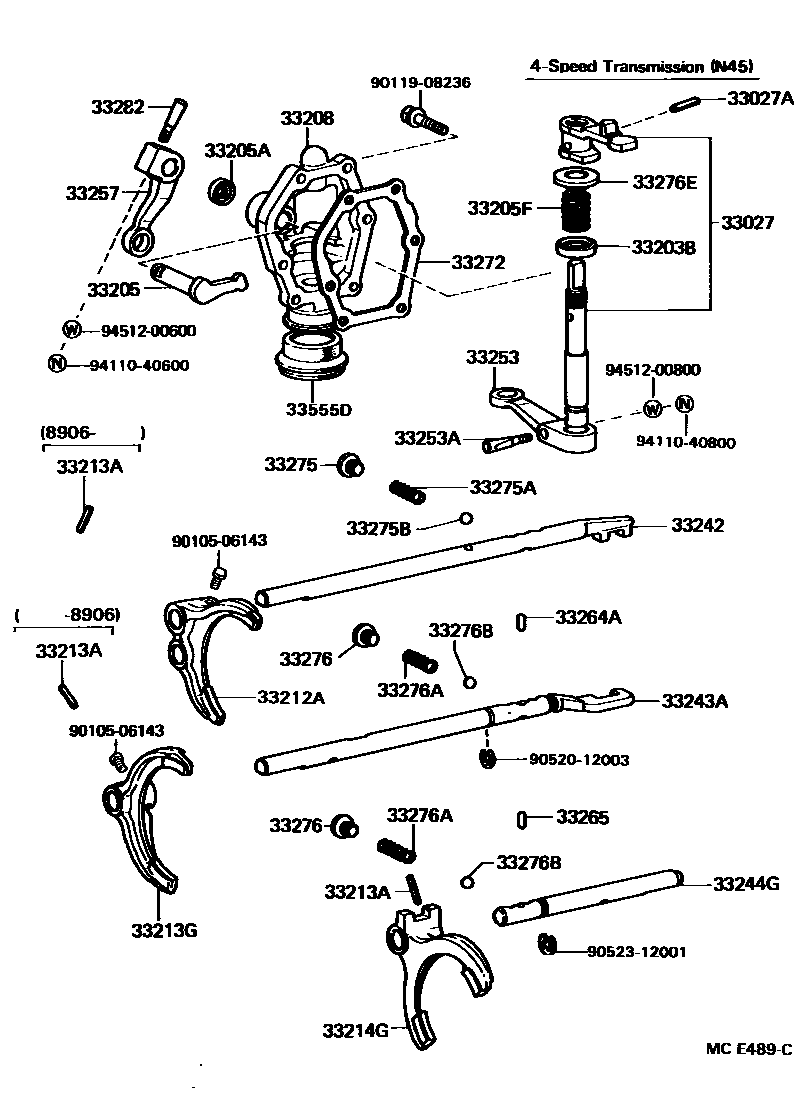

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1 0002 1 0003 1 0004 1

33027SHAFT SET, SHIFT LEVER

main33027-30020iLS130..4H198709-199008

main33027-30030iLS130..4H199008-199110

33027APIN, SLOTTED SPRING(FOR SHIFT LEVER SHAFT SET)

main90254-05001iLS130..4H198709-199110

33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1

main33262-30051iYS132..4H198709-199110

33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)

main90311-18002iLS130..4H198709-199110

33205SHAFT SUB-ASSY, SELECT LEVER

main33262-30030iLS130..4H198709-199110

33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)

main90311-16001iYS132..4H198709-199110

main90313-13001iLS130..4H198709-199110

33205FSPRING, COMPRESSION(FOR SELECT RETURN)

main90501-16036iLS130..4H198709-199110

33208HOUSING SUB-ASSY, SHIFT LEVER SHAFT

main33271-30030iLS130..4H198709-199110

33212AFORK, GEAR SHIFT, NO.1

main33212-22020iYS132;GS131,LS130,MS132,133..4F,5F198709-199110

main33212-30041iLS130..4H198709-198910

main33212-30042iLS130..4H198910-199110

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05001×3iLS130..4H198709-198910

main90254-05016iYS132;GS131,LS130,MS132,133..4F,5F198709-199110

33213GFORK, GEAR SHIFT, NO.2

main33213-22030iYS132;GS131,LS130,MS132,133..4F,5F198709-199110

main33213-30041iLS130..4H198709-198910

main33213-30042iLS130..4H198910-199110

33214GFORK, GEAR SHIFT, NO.3

main33214-22030iGS131,MS132,133..5F198709-199110

main33214-30031iLS130..4H198709-199110

33242SHAFT, GEAR SHIFT FORK, NO.1

main33242-22020iGS131,LS130,MS132,133,YS132..4F,5F198709-199108

main33242-30040iLS130..4H198709-198910

main33242-30041iLS130..4H198910

main33242-30050iYS132..4H198709-199110

main33242-30080iGS131,LS130,MS132,133,YS132..4F,5F199108-199110

33243ASHAFT, GEAR SHIFT FORK, NO.2

main33243-30081iLS130..4H198709-198910

main33243-30082iLS130..4H198910-199110

main33243-30100iYS132..4H198709-199110

33244GSHAFT, GEAR SHIFT FORK, NO.3

main33244-30040iLS130..4H198709-199008

main33244-30041iLS130..4H199008-199110

33253LEVER, SHIFT OUTER, NO.1

main33253-30150iLS130..4H198709-199110

main33253-30171iYS132..4H198709-199110

33253APIN, LEVER LOCK (FOR SHIFT OUTER LEVER)

main33281-16020iLS130..4H198709-199110

33257LEVER, SELECT OUTER

main33257-30040iLS130..4H198709-199110

main33257-30060iYS132..4H198709-199110

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main33264-22010iYS132;GS131,LS130,MS132,133..4F,5F198709-199110

33264APLUG, INTERLOCK HOLE

main90250-06006iLS130..4H198709-199110

L=13.4,OD=6

main90341-10065iYS132;GS131,LS130,MS132,133..4F,5F198709-199110

L=7.5,OD=15

33265PIN, SHIFT INTERLOCK, NO.2

main33265-22010iYS132;GS131,LS130,MS132,133..4F,5F198709-198908

L=11.2,OD=4

main33266-22010iGS131,LS130,MS132,133,YS132..4F,5F; YS132..4H198709-198908

L=13.6,OD=6; L=13.6,OD=6,L=13.6,OD=6

main90250-06006iLS130..4H198709-199110

L=13.4,OD=6

main90250-06007iGS131,MS132,133..5F198908-199110

L=8.6,OD=6

33272GASKET, SHIFT LEVER SHAFT HOUSING

main33272-30040iLS130..4H198709-199110

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main90341-12014iYS132..4F;GS131,LS130,MS132,133..MTM198709-198908

OD=17

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-13004iGS131,LS130,MS132,133,YS132..MTM198709-198905

L=20.65

main90501-14123iGS131,LS130,MS132,133,YS132..MTM198905-199110

L=20.2

33275BBALL, SHAFT DETENT

main90360-10003iGS131,LS130,MS132,133,YS132..MTM198709-199110

33276SEAT, SHIFT DETENT BALL SPRING, NO.2

main90341-10065iGS131,MS132,133..5F199010-199110

main90341-12005×2iGS131,LS130,MS132,133,YS132..4F,5F198709-199110

main90341-12014×2iLS130..4H198709-199110

33276ASPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)

main90501-10052iGS131,MS132,133..5F199010-199110

SHIFT HEAD SIDE

main90501-13004×2iGS131,LS130,MS132,133,YS132..MTM198709-198905

main90501-14123×2iGS131,MS132,133..5F; LS130,MS132,YS132..STD198908-199110

FORK SHAFT SIDE

33276BBALL, SHIFT DETENT, NO.2

main90360-08009iGS131,MS132,133..5F199010-199110

SHIFT HEAD SIDE

main90360-10003×2iGS131,MS132,133..5F; LS130,MS132,YS132..STD198908-199110

FORK SHAFT SIDE

33276ESEAT, SELECT SPRING, NO.1

main33276-28011iLS130..4H198709-199110

33282PIN, LEVER LOCK, NO.2

main33281-30030iYS132..4H198709-199110

main33282-35010iLS130..4H198709-199110

33555DBOOT, SHIFT LEVER

main33555-30111iLS130..4H198709-199110

9010506143

main90105-06143

9011908236

main90119-08236

9052012003

main90520-12003

9052312001

main90523-12001

9411040600

main94110-40600

9411040800

main94110-40800

9451200600

main94512-00600

9451200800

main94512-00800

39 parts on this diagram · 4 diagrams in section
