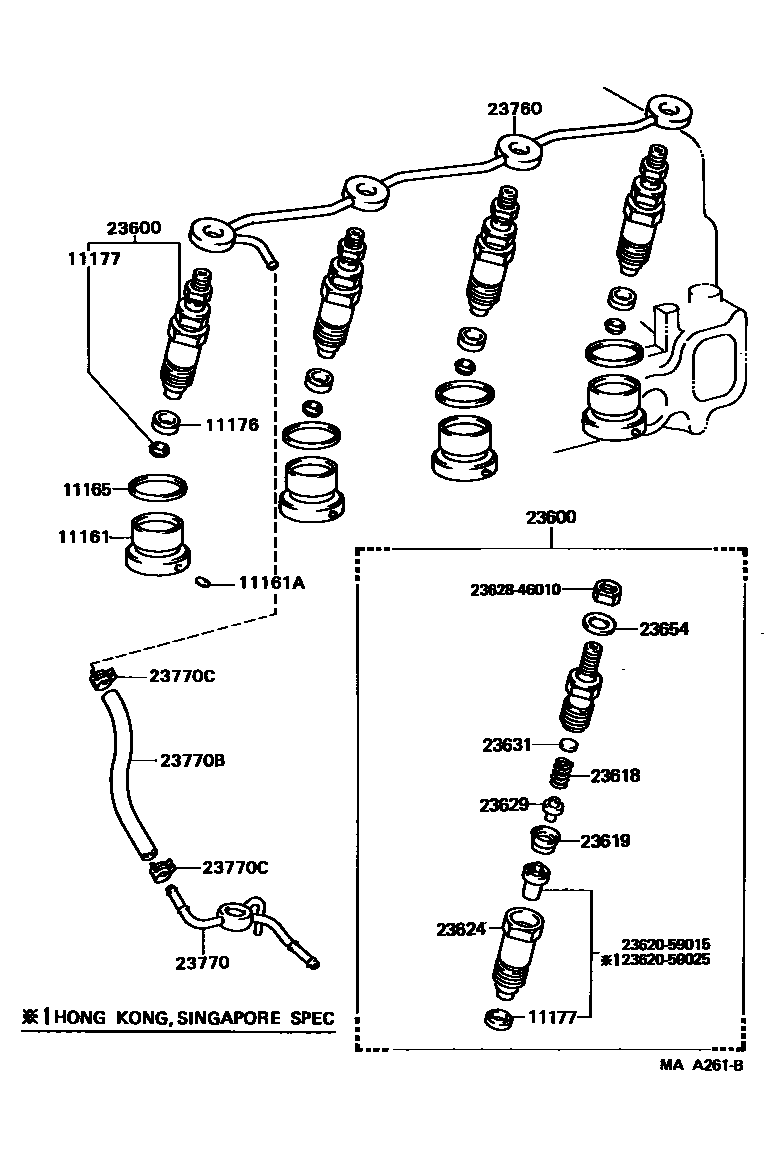

INJECTION NOZZLE
11161CHAMBER, COMBUSTION
11161APIN, STRAIGHT(FOR COMBUSTION CHAMBER)
11165SHIM(FOR COMBUSTION CHAMBER)
T=0.05,T=0.05
T=0.10,T=0.10
T=0.15,T=0.15
T=0.20,T=0.20
11176SEAT, INJECTION NOZZLE
11177GASKET, INJECTION NOZZLE SEAT
23600HOLDER & NOZZLE SET, NOZZLE
SINGAPORE SPEC
HONG KONG SPEC
23618SPRING, NOZZLE HOLDER PRESSURE
SINGAPORE SPEC
HONG KONG SPEC
23619PIN, NOZZLE HOLDER PRESSURE
23629PIECE, DISTANCE(FOR NOZZLE)
23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)
T=1.000
T=0.900
T=0.950
T=1.000
T=1.050
T=1.100
T=1.050
T=1.150
T=1.200
T=1.250
T=1.300
T=1.350
T=1.100
T=1.400
T=1.450
T=1.500
T=1.550
T=1.600
T=1.150
T=1.650
T=1.700
T=1.750
T=1.800
T=1.850
T=1.200
T=1.900
T=1.950
T=1.250
T=1.300
T=1.350
T=1.400
T=1.450
T=1.500
T=1.550
T=1.600
T=1.650
T=1.700
T=1.750
T=1.800
T=1.850
T=1.900
T=1.950
23654WASHER(FOR RING PACKING)
23760PIPE ASSY, NOZZLE LEAKAGE
23770PIPE ASSY, NOZZLE LEAKAGE, NO.2
23770BHOSE, FUEL
L=200
2362059015NOZZLE ASSY
main23620-59015
2362059025NOZZLE ASSY
main23620-59025
2362846010NUT(FOR RING PACKING SETTING)
main23628-46010
19 parts on this diagram · 2 diagrams in section
