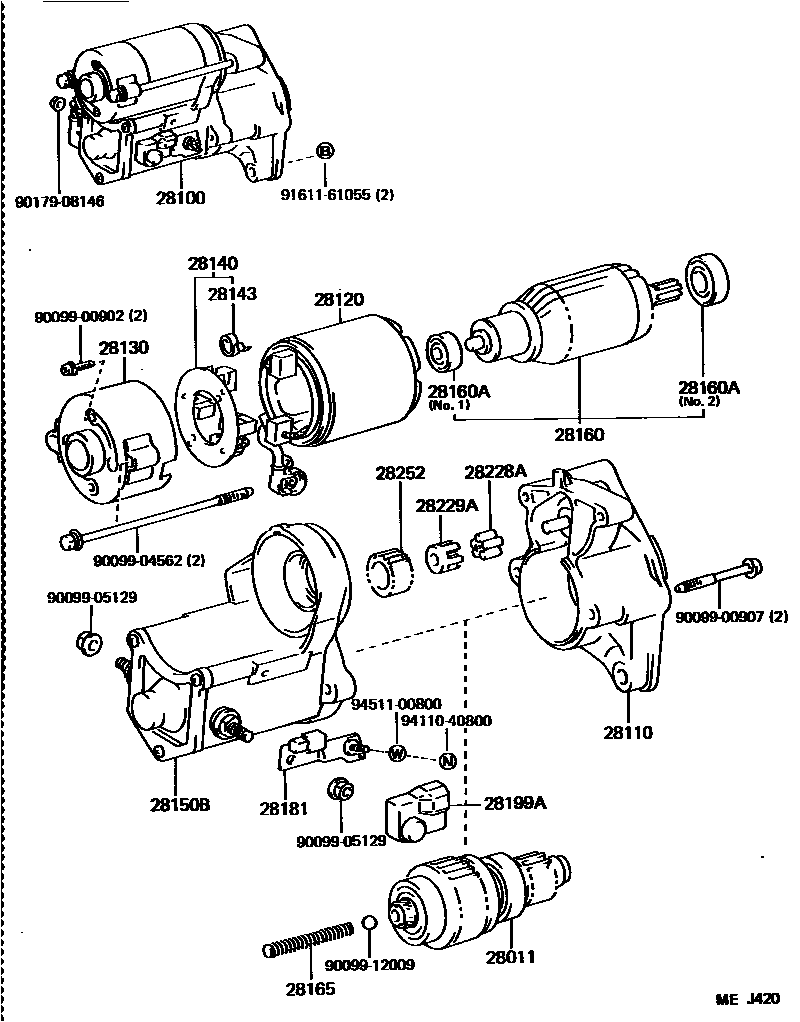

STARTER

0001 112V 1.0KW 0002 112V 0.8KW 0003 112V 1.0KW 0004 112V 2.0KW

28011CLUTCH SUB-ASSY, STARTER

main28011-26042i5M#,7MGE,4Y..MS13#,YS132198709-199110

main28011-54070i2L..LS130198709-199110

main28011-70020i1GFE..GS131198812-199110

28100STARTER ASSY

main28100-42040i5M#,7MGE..MS13#198709-199110

12V 1.0KW

sub28100-46100

main28100-54070i2L..LS130198709-199110

12V 2.0KW

sub28100-54180

main28100-70020i1GFE..GS131198812-199110

12V 0.8KW

main28100-72030i4Y..YS132198709-199110

12V 1.0KW

sub28100-72040

28110HOUSING ASSY, STARTER DRIVE

main28110-42040i5M#,7MGE..MS13#198709-199110

main28110-70020i1GFE..GS131198812-199110

main28110-72030i4Y..YS132198709-199110

main28115-54070i2L..LS130198709-199110

28120YOKE ASSY, STARTER

main28120-26071i5M#,7MGE,4Y..MS13#,YS132198709-199110

main28120-54070i2L..LS130198709-199110

main28120-70020i1GFE..GS131198812-199110

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-15020i5M#,7MGE..MS13#198709-199110

main28130-70020i1GFE..GS131198812-199110

main28130-72030i4Y..YS132198709-199110

28140HOLDER ASSY, STARTER BRUSH

main28140-26070i5M#,7MGE,4Y..MS13#,YS132198709-199110

main28140-54070i2L..LS130198709-199110

main28140-70020i1GFE..GS131198812-199110

28143SPRING, STARTER BRUSH

main28143-70020i1GFE..GS131198812-199110

main90099-17112i4Y..YS132198709-199110

main90099-17115i2L..LS130198709-199110

28150BSWITCH ASSY, MAGNETIC

main28150-41060i5M#,7MGE..MS13#198709-199110

main28150-46080i1GFE..GS131199008-199110

main28150-54070i2L..LS130198709-199110

sub28150-54110

main28150-70020i1GFE..GS131198812-199008

sub28150-46080

main28150-72030i4Y..YS132198709-199110

28160ARMATURE ASSY, STARTER

main28160-26070i5M#,7MGE,4Y..MS13#,YS132198709-198908

sub28160-26071

main28160-26071i5M#,7MGE,4Y..MS13#,YS132198908-199110

main28160-54070i2L..LS130198709-198908

sub28160-54071

main28160-54071i2L..LS130198908-199110

main28160-70021i1GFE..GS131198812-199110

28160ABEARING, STARTER ARMATURE

main28253-45020i5M#,7MGE,4Y..MS13#,YS132198709-199110

NO.1

main28253-54070i2L..LS130198709-199110

NO.1

main90099-10113i5M#,7MGE,4Y..MS13#,YS132198709-199110

NO.2

main90099-10131i2L..LS130198709-199110

NO.2

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-26040i2L,5M#,7MGE,4Y..LS130,MS13#,YS132198709-199110

28181TERMINAL, STARTER

main28181-72030i4Y..YS132198709-199110

28199APROTECTOR, DUST STARTER

main28119-54070i2L..LS130198709-198806

main28199-46080i1GFE..GS131199008-199110

main28199-70020i1GFE..GS131198812-198908

sub28199-46080

main28199-70021i1GFE..GS131198908-199008

sub28199-46080

main28199-72030i4Y..YS132198709-199110

main28199-77090i2L..LS130198806-199110

28228AROLLER, STARTER CLUTCH

main28228-26040i2L,5M#,7MGE,4Y..LS130,MS13#,YS132198709-199110

28229ARETAINER, STARTER IDLE GEAR

main28229-26040i2L,5M#,7MGE,4Y..LS130,MS13#,YS132198709-199110

28252GEAR, STARTER IDLE

main28251-54070i2L..LS130198709-199110

NO.1

main28254-45020i5M#,7MGE,4Y..MS13#,YS132198709-199110

main28254-54070i2L..LS130198709-199110

NO.2

9009900902

main90099-00902

9009900907

main90099-00907

9009904562

main90099-04562

9009905129

main90099-05129

9009912009

main90099-12009

9017908146

main90179-08146

9161161055

main91611-61055

9411040800

main94110-40800

9451100800

main94511-00800

25 parts on this diagram · 4 diagrams in section
