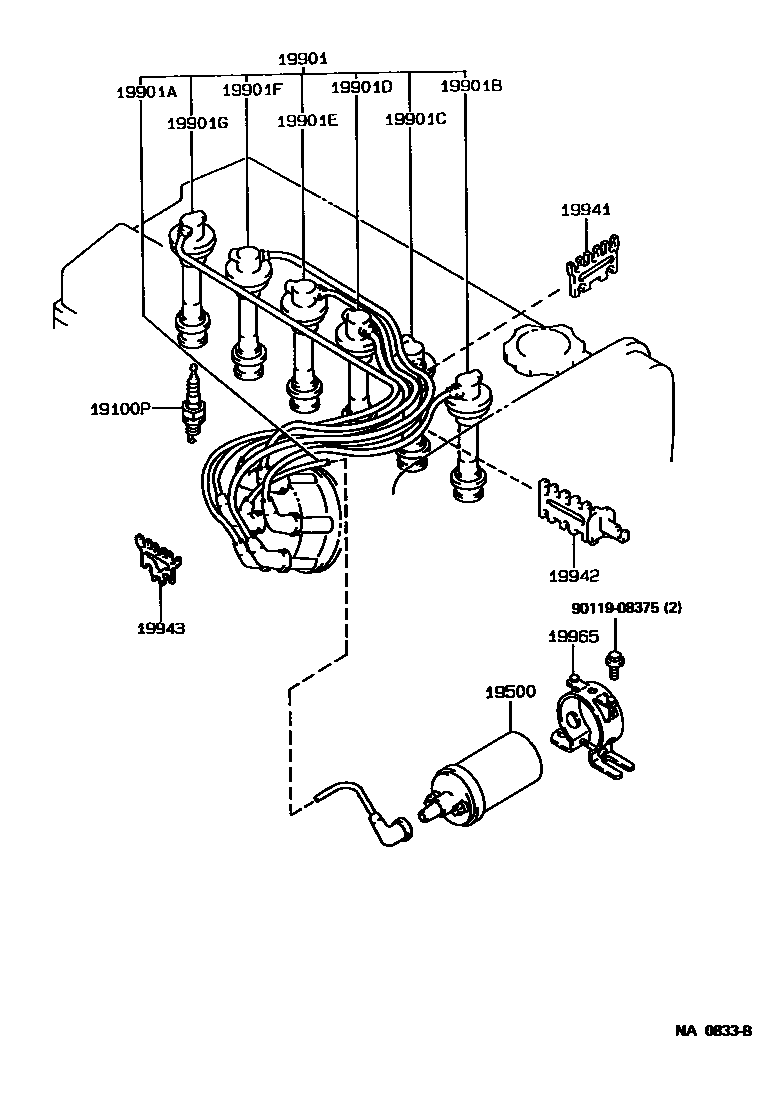

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

19100PPLUG, SPARK

main90919-01059i4Y..YS132198709-199110

W16EX-U

sub90919-01064

main90919-01064i5M#..MS132,133198709-199110

W16EXR-U

main90919-01149i7MGE..MS135198709-199110

Q20R-U

main90919-01166i1GFE..GS131198812-199110

K20R-U

19500COIL ASSY, IGNITION

main90919-02083i5ME..MS133198709-199110

main90919-02113i1GFE..GS131198812-199110

main90919-02153i4Y..YS132198709-199110

main90919-02175i7MGE..MS135198709-199110

main90919-02186i5M..MS132198709-199110

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21338i5M#..MS132,133198709-199110

main90919-21341i4Y..YS132198709-199110

main90919-21402i7MGE..MS135198709-198808

sub90919-21465

main90919-21439i1GFE..GS131198812-199110

main90919-21465i7MGE..MS135198808-199110

19901ACORD, COIL RESISTIVE

main90919-13153i4Y..YS132198709-199110

main90919-13217i5M#..MS132,133198709-199110

main90919-13269i7MGE..MS135198709-199110

main90919-13309i1GFE..GS131198812-199110

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-12180i5M#..MS132,133198709-199110

main90919-12469i4Y..YS132198709-199110

main90919-12652i7MGE..MS135198709-198808

main90919-12847i1GFE..GS131198812-199110

main90919-12874i7MGE..MS135198808-199102

sub90919-15231

main90919-15231i7MGE..MS135199102-199110

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-12181i5M#..MS132,133198709-199110

main90919-12470i4Y..YS132198709-199110

main90919-12653i7MGE..MS135198709-198808

main90919-12848i1GFE..GS131198812-199110

main90919-12875i7MGE..MS135198808-199102

sub90919-15232

main90919-15232i7MGE..MS135199102-199110

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-12182i5M#..MS132,133198709-199110

main90919-12471i4Y..YS132198709-199110

main90919-12654i7MGE..MS135198709-198808

main90919-12849i1GFE..GS131198812-199110

main90919-12876i7MGE..MS135198808-199102

sub90919-15233

main90919-15233i7MGE..MS135199102-199110

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-12472i4Y..YS132198709-199110

main90919-12530i5M#..MS132,133198709-199110

main90919-12655i7MGE..MS135198709-198808

main90919-12850i1GFE..GS131198812-199110

main90919-12877i7MGE..MS135198808-199102

sub90919-15234

main90919-15234i7MGE..MS135199102-199110

19901FCORD, SPARK PLUG RESISTIVE, NO.5

main90919-12531i5M#..MS132,133198709-199110

main90919-12656i7MGE..MS135198709-198808

main90919-12851i1GFE..GS131198812-199110

main90919-12878i7MGE..MS135198808-199102

sub90919-15235

main90919-15235i7MGE..MS135199102-199110

19901GCORD, SPARK PLUG RESISTIVE, NO.6

main90919-12532i5M#..MS132,133198709-199110

main90919-12657i7MGE..MS135198709-198808

main90919-12852i1GFE..GS131198812-199110

main90919-12879i7MGE..MS135198808-199102

sub90919-15236

main90919-15236i7MGE..MS135199102-199110

19941CLAMP, RESISTIVE CORD, NO.1

main19941-42010i7MGE..MS135198709-199110

main90464-00068i5M#..MS132,133198709-199110

main90929-01210i1GFE..GS131198812-199110

19942CLAMP, RESISTIVE CORD, NO.2

main90464-00069i5M#..MS132,133198709-199110

main90929-01208i1GFE..GS131198812-199110

19943PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1

main90929-01236i1GFE..GS131198812-199110

19965BAND, IGNITION COIL, NO.1

main90919-03094i1GFE..GS131198709-199110

main90919-03105i7MGE..MS135198709-199110

9011908375

main90119-08375

15 parts on this diagram · 6 diagrams in section
