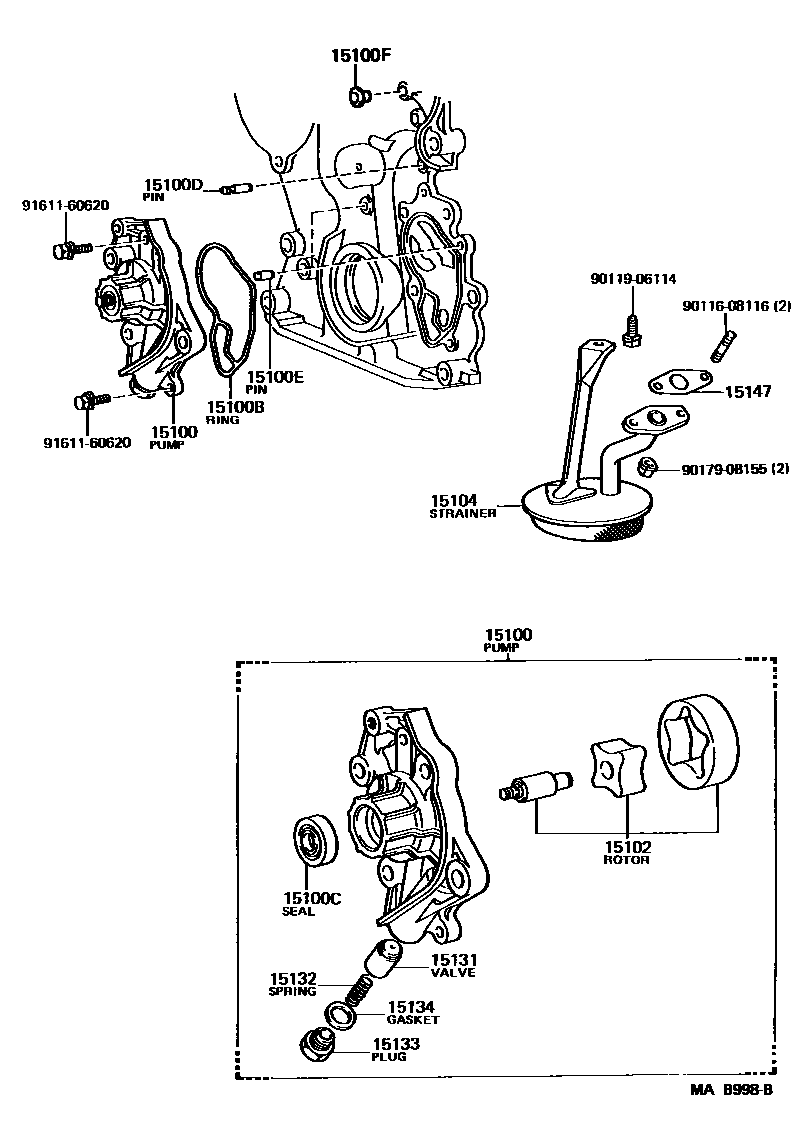

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

15100PUMP ASSY, OIL

main15100-42050i7MGE..MS135198904-199110

main15100-43061i7MGE..MS135198709-198904

main15100-43070i5M#..MS132,133198709-199110

main15100-70030i1GFE..GS131198812-199110

main15100-71010i4Y..YS132198709-199110

15100BRING, O(FOR OIL PUMP)

main15188-70010i1GFE..GS131198812-199110

15100CSEAL(FOR OIL PUMP)

main90029-21005i1GFE..GS131198812-199110

15100DPIN(FOR OIL PUMP SET)

main15182-70010i1GFE..GS131198812-199110

15100EPIN, STRAIGHT (FOR OIL PUMP SET)

main15181-70010×2i1GFE..GS131198812-199110

15100FBUSH (FOR OIL PUMP)

main90029-38300i1GFE..GS131198812-198910

main90029-38302i1GFE..GS131198910-199110

15102ROTOR SET, OIL PUMP

main15102-70011i1GFE..GS131198812-199110

main15102-71010i4Y..YS132198709-199110

15104STRAINER SUB-ASSY, OIL

main15104-54033i2L..LS130198709-199110

main15104-70060i1GFE..GS131198812-199110

15131VALVE, OIL PUMP RELIEF

main15131-24010i1GFE..GS131; 4Y..YS132; 5M#,7MGE..MS13#198709-199110

main15131-54010i2L..LS130198908-199110

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i1GFE..GS131; 4Y..YS132198709-199110

main15132-46010i5M#,7MGE..MS13#198709-199110

main15132-54010i2L..LS130198908-199110

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i1GFE..GS131198812-199110

main15133-24010i4Y..YS132; 5M#,7MGE..MS13#198709-199110

main15133-54010i2L..LS130198908-199110

15134GASKET, OIL PUMP RELIEF VALVE

main15134-70030i1GFE..GS131198812-199110

15147GASKET, OIL STRAINER

main15147-70020i1GFE..GS131198908-199007

main15147-70021i1GFE..GS131199009-199110

9011608116

main90116-08116

9011906114

main90119-06114

9017908155

main90179-08155

9161160620

main91611-60620

17 parts on this diagram · 6 diagrams in section
