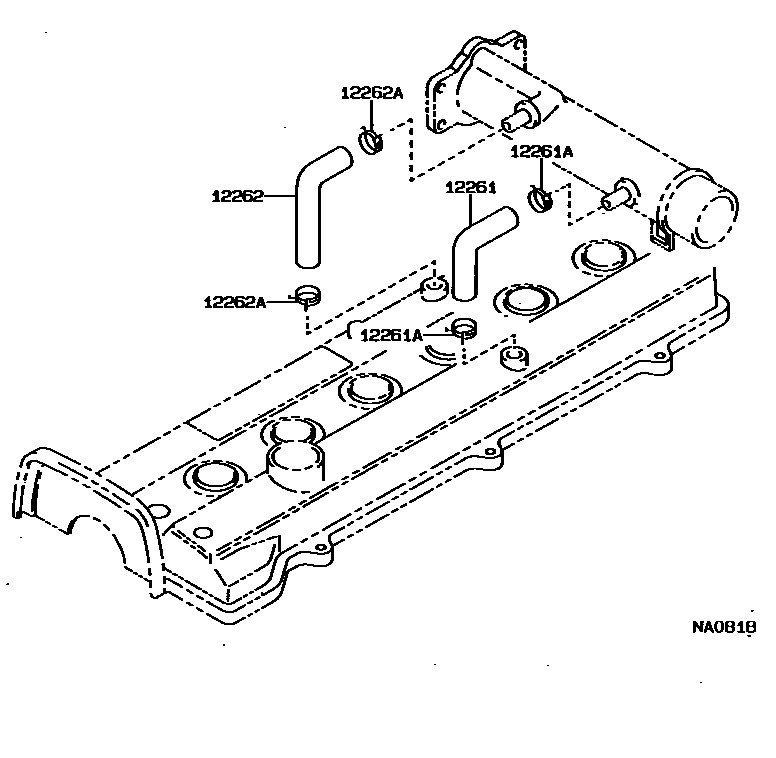

VENTILATION HOSE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

12261HOSE, VENTILATION

main12261-41090i5ME..MS133198709-199110

main12261-42010i7MGE..MS135198709-199110

main12261-43020i5M..MS132198709-199110

main12261-54020i2L..LS130198709-198908

main12261-54150i2L..LS130198908-199110

main12261-70040i1GFE..GS131198812-199110

main12261-72020i4Y..YS132198709-199110

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-15120i2L..LS130198709-198908

main90467-16035i5M..MS132198709-199110

main90467-17006i1GFE..GS131198812-199110

sub90467-17011

main90467-18003i2L..LS130198908-199110

main90467-20002i5ME..MS133198709-199110

12262HOSE, VENTILATION, NO.2

main12261-42010i7MGE..MS135198709-199110

main12262-43030i5ME..MS133198709-199110

main12262-43040i5M..MS132198709-199110

main12262-70020i1GFE..GS131198812-199110

main12262-71020i4Y..YS132198709-199110

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-16035i7MGE..MS135198709-199110

main90467-17006i1GFE..GS131198812-199110

sub90467-17011

main90467-20002i5ME..MS133198709-199110

4 parts on this diagram · 7 diagrams in section
