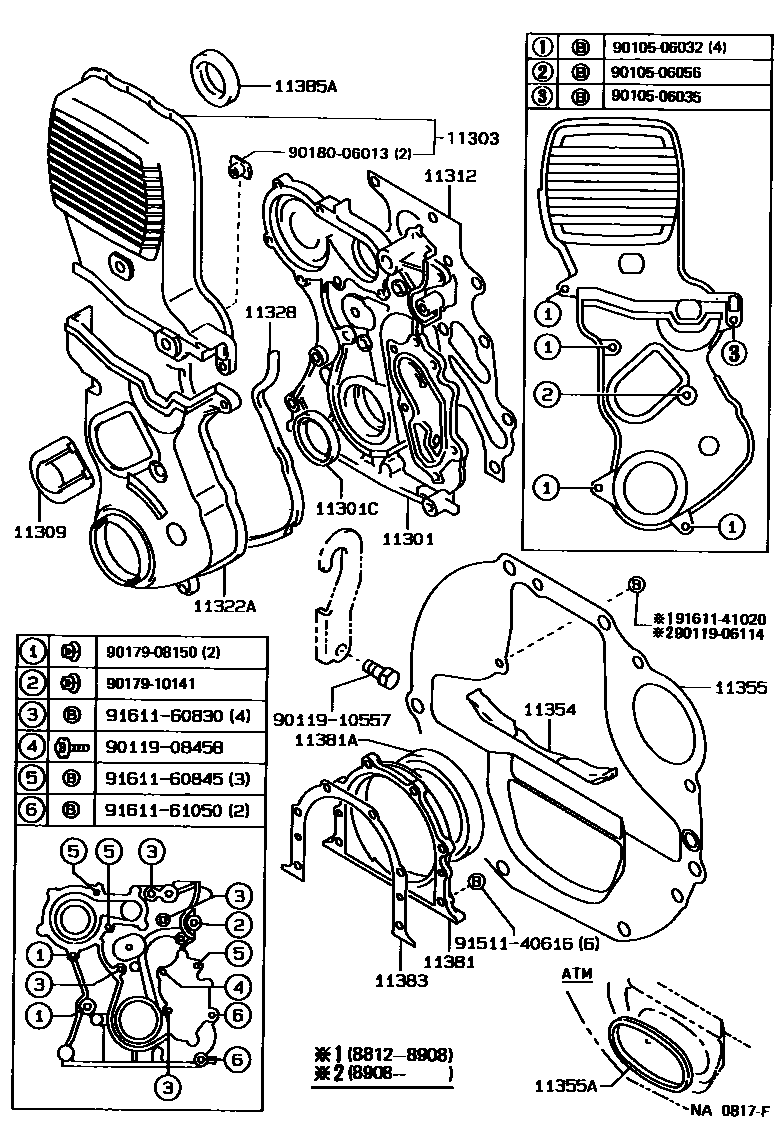

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

11301CASE SUB-ASSY, TIMING GEAR

main11301-42010i7MGE..MS135198709-199110

main11301-71010i4Y..YS132198709-199110

main11311-54022i2L..LS130198709-198908

main11311-54050i2L..LS130198908-199108

main11311-54051i2L..LS130199108-199110

main11311-70040i1GFE..GS131198812-199010

main11311-79035i1GFE..GS131199010-199110

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42003i7MGE..MS135198709-199110

main90311-42012i2L..LS130198709-198908

main90311-42026i2L..LS130199102-199110

main90311-45003i1GFE..GS131198812-199110

11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY

main11303-70020i1GFE..GS131198812-199110

11309COVER SUB-ASSY, TIMING BELT, NO.4

main11325-42010i7MGE..MS135198709-199110

main11325-88300i1GFE..GS131198812-199110

11312GASKET, FRONT END PLATE

main11312-42010i7MGE..MS135198912-199110

NO.1

main11312-43010i7MGE..MS135198709-198912

NO.1

main11312-54013i2L..LS130198709-198908

main11312-54021i2L..LS130198908-199110

main11312-70013i1GFE..GS131198812-199009

main11312-70014i1GFE..GS131199009-199110

main11313-42010i7MGE..MS135198709-198912

NO.2

main11313-42020i7MGE..MS135198912-199110

NO.2

11322ACOVER, TIMING BELT, NO.1

main11302-70040i1GFE..GS131198812-199110

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-41010i5M#..MS132,133198709-199001

main11328-42010i7MGE..MS135198709-199110

main11328-43020i5M#..MS132,133199001-199110

main11328-54010i2L..LS130198709-198908

main11328-54021i2L..LS130198908-199110

main11328-70030i1GFE..GS131198812-199110

main11328-71010i4Y..YS132198709-198712

main11328-71011i4Y..YS132198712-198912

main11328-71012i4Y..YS132198912-199110

11354SEAL, FLYWHEEL HOUSING DUST

main11354-54010i2L..LS130198709-199110

main11354-70010i1GFE..GS131198812-199110

main11354-71010i4Y..YS132198709-199110

11355PLATE, REAR END

main11355-41010i5M#,7MGE..MS13#198709-199110

main11355-54030i2L..LS130198709-199110

main11355-70010i1GFE..GS131..5F198812-199110

main11355-70020i1GFE..GS131..4FC198812-199110

main11355-71010i4Y..YS132198709-199110

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01307i1GFE..GS131..4FC198812-199110

11381RETAINER, ENGINE REAR OIL SEAL

main11381-43010i5M#,7MGE..MS13#198709-199110

main11381-54010i2L..LS130198709-198808

main11381-54020i2L..LS130198808-199110

main11381-70010i1GFE..GS131198812-199110

main11381-71010i4Y..YS132198709-199110

11381ASEAL, ENGINE REAR OIL

main90311-75004i1GFE..GS131198812-198908

main90311-75007i1GFE..GS131198908-199110

main90311-80001i5M#,7MGE..MS13#198709-199110

main90311-80003i4Y..YS132198709-199004

main90311-80009i4Y..YS132199004-199110

main90311-85004i2L..LS130198709-199102

main90311-85006i2L..LS130199102-199110

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-25010i4Y..YS132198709-198912

main11383-41010i5M#,7MGE..MS13#198709-199110

main11383-54010i2L..LS130198709-198808

main11383-54020i2L..LS130198808-199107

main11383-54030i2L..LS130199107-199110

main11383-70010i1GFE..GS131198812-199009

main11383-70011i1GFE..GS131199009-199110

main11383-71010i4Y..YS132198912-199110

11385RETAINER, CAMSHAFT OIL SEAL

main11382-54010i2L..LS130198709-198908

main11382-54020i2L..LS130198908-199110

11385ASEAL, OIL(FOR CAMSHAFT)

main90311-35008i1GFE..GS131198812-199003

main90311-35013i1GFE..GS131199003-199110

ARS

main90311-35022i1GFE..GS131199003-199110

NOK

9010506032

main90105-06032

9010506035

main90105-06035

9010506056

main90105-06056

9011906114

main90119-06114

9011908458

main90119-08458

9011910557

main90119-10557

9017908150

main90179-08150

9017910141

main90179-10141

9018006013

main90180-06013

9151140616

main91511-40616

9161141020

main91611-41020

9161160830

main91611-60830

9161160845

main91611-60845

9161161050

main91611-61050

29 parts on this diagram · 6 diagrams in section
