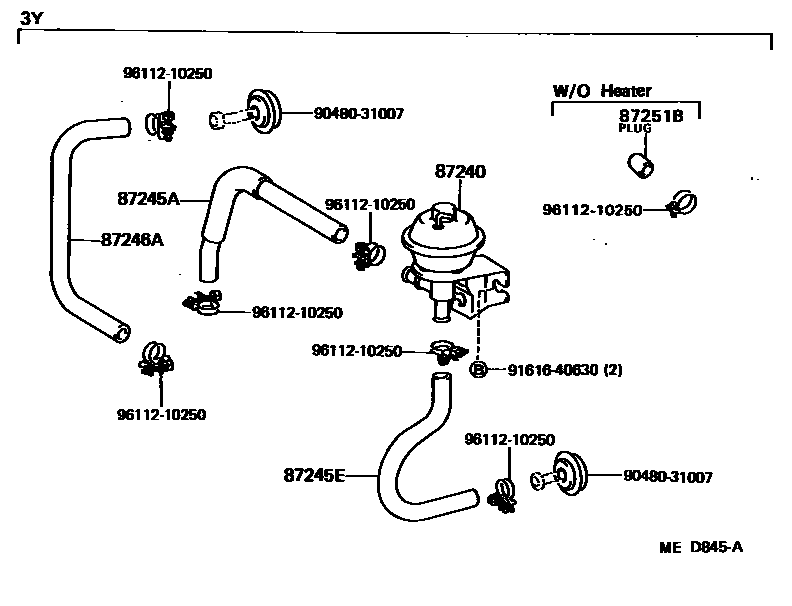

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

87240VALVE ASSY, HEATER WATER

main87240-30420iLS120..4F,5F;LS120..LHD..STD198308-198708

main87240-30430iMS122,123,YS120..DLX,SAL,STD198308-198708

main87240-30470iMS12#..ROY198308-198708

main87240-30480iLS120..RHD..4H198308-198708

87245AHOSE, HEATER WATER, INLET A

main87245-3A030iLS120..4F,5F;LS120..LHD..STD198308-198708

main87245-3A040iYS120198308-198708

main87245-3A060iMS123..ARL,SWZ198308-198509

main87245-3A070iMS122..SED,WG198308-198708

main87245-3A080iMS123,125198509-198708

main87245-3A140iLS120..RHD..4H198308-198708

87245EHOSE, HEATER WATER, INLET E

main87245-3A020iMS12#..RHD198308-198708

main87245-3A100iLS120,MS12#,YS120..LHD198308-198708

main87245-3A150iLS120..RHD..4H198308-198708

main87245-3A200iLS120,YS120..RHD..(4F,5F)198308-198708

87246AHOSE, HEATER WATER, OUTLET A

main87245-3A050iYS120..RHD198308-198708

main87245-3A130iLS120,MS12#,YS120..LHD198308-198708

main87245-3A210iLS120,MS12#..RHD198308-198708

87251JOINT OR UNION, WATER HOSE THROUGH

main90404-54023iLS120198308-198708

87251BPLUG, HEATER WATER

main90339-16007×2iLS120..4F,5F;LS120..LHD..STD;MS122,YS120..SAL,STD198308-198509

9048031007

main90480-31007

9161640630

main91616-40630

9611210250

main96112-10250

9 parts on this diagram · 2 diagrams in section
