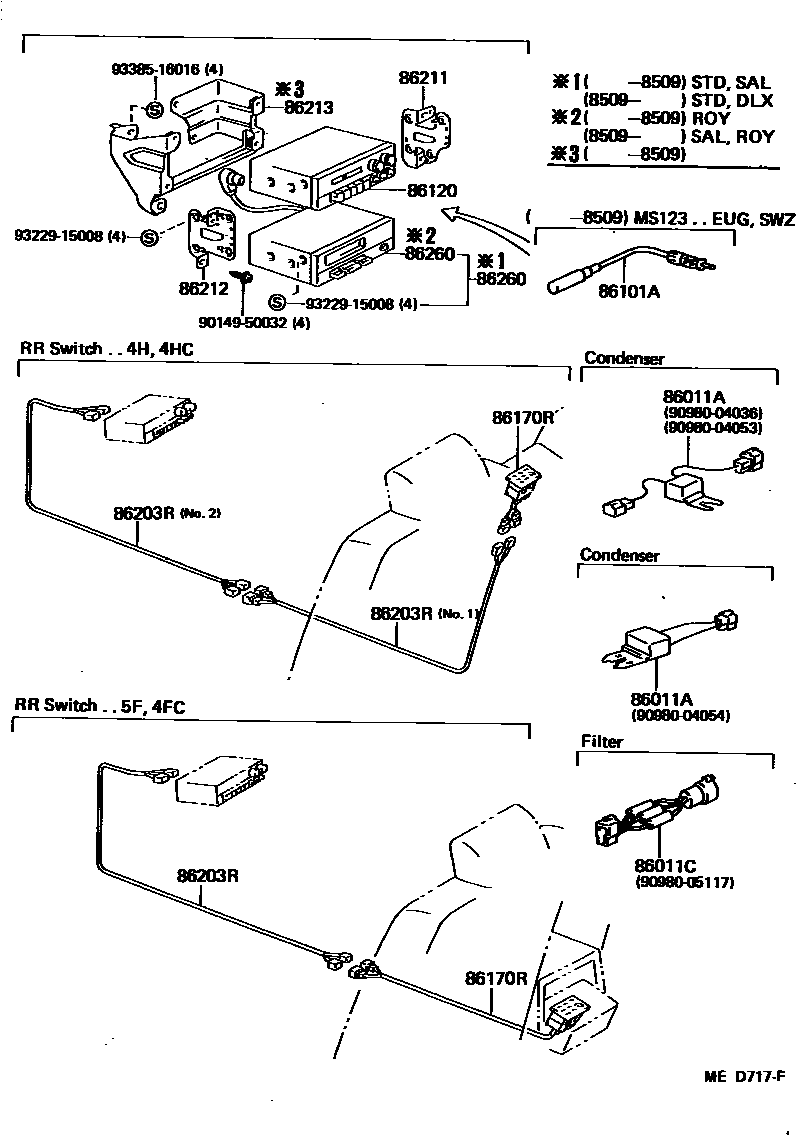

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86011ACONDENSER, RADIO SETTING

main90980-04036iMS12#,YS120198308-198506

IGNITION

main90980-04053iMS12#,YS120198506-198509

IGNITION

main90980-04054iMS12#,YS120198509-198708

IGNITION

86011CFILTER, NOISE

main90980-05117iMS122..LHD..SAL; MS125..LHD; YS120..4H,5F198508-198509

86101ACORD SUB-ASSY, ANTENNA, NO.1

main86101-30240iMS123..SAL198308-198509

86120RECEIVER ASSY, RADIO

main86120-14420iLS120,YS120..STD198308-198406

AM,5-PB

main86120-14421iLS120,MS122,YS120..(DLX,STD)..GEN198406-198708

AM,5-PB

main86120-14430iLS120,YS120..STD198308-198408

AM/FM MONO,5-PB

main86120-14431iLS120,MS122,YS120..DLX,STD198408-198708

AM/FM,5-PB

main86120-30630iLS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN)198308-198401

AM/FM MULTIPLEX,*ELT

main86120-30640iLS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA)198308-198509

MW/SW,5-PB

main86120-30641iMS122,125..ROY,SAL198509-198708

MW/SW,5-PB

main86120-30650iMS123..SAL198308-198509

*21,*ELT,W/ARI

main86120-30660iLS120,MS122,YS120..(ROY,SAL)..GEN198308-198509

AM/FM MULTIPLEX,*ELT,*CSA

main86120-30661iMS122,125..(ROY,SAL)..GEN198509-198708

AM/FM MULTIPLEX,*ELT,*CSA

main86120-30670iLS120,MS122,YS120..DLX,STD198308-198708

MW/SW,5-PB

main86120-30680iLS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA)198401-198408

AM/FM MULTIPLEX,*ELT

main86120-30681iMS12#..ROY,SAL198509-198708

AM/FM MULTIPLEX,*ELT

main86120-30710iMS122,125..LHD198408-198509

AM/FM/SW MULTIPLEX,*ELT

main86120-30711iMS125..LHD;MS122..LHD..SAL198509-198708

AM/FM/SW MULTIPLEX,*ELT

86170RSWITCH & VOLUME ASSY, RR

main86170-30100iMS12#..4H,4HC198308-198509

main86170-30101iMS122,125..4HC198509-198708

main86170-30140iLS120,MS12#,YS120..(4FC,5F)..(ARL,GEN,SAA)198308-198509

main86170-30141iMS12#..(4FC,5F)..(ROY,SAL)198509-198708

86203RWIRE SUB-ASSY, RR

main86203-30330iLS120,MS12#,YS120..(4FC,5F)..(ROY,SAL)..(ARL,GEN,SAA)198308-198708

main86203-30340iMS12#..4H,4HC198308-198708

NO.1

main86203-30350iMS12#..4H,4HC198308-198708

NO.2

86211BRACKET, RADIO, NO.1

main86211-30040iLS120,MS12#,YS120..RHD198308-198708

main86211-30050iLS120,MS12#,YS120..LHD198308-198708

86212BRACKET, RADIO, NO.2

main86212-30040iLS120,MS12#,YS120..RHD198308-198708

main86212-30050iLS120,MS12#,YS120..LHD198308-198708

86213BRACKET, RADIO, NO.3

main86211-30060iLS120..RHD..4H198308-198509

86260TAPE PLAYER ASSY

main86260-30171iMS122..SAL198509-198708

main86260-30180iMS12#..ROY198308-198509

main86260-30181iMS12#..ROY198509-198708

main86260-39015iLS120,MS122,YS120..DLX,STD198308-198708

main86260-39025iLS120,MS122,YS120..SAL198308-198509

9014950032

main90149-50032

9098004036

main90980-04036

9098004053

main90980-04053

9098004054

main90980-04054

9098005117

main90980-05117

9322915008

main93229-15008

9338516016

main93385-16016

17 parts on this diagram · 2 diagrams in section
