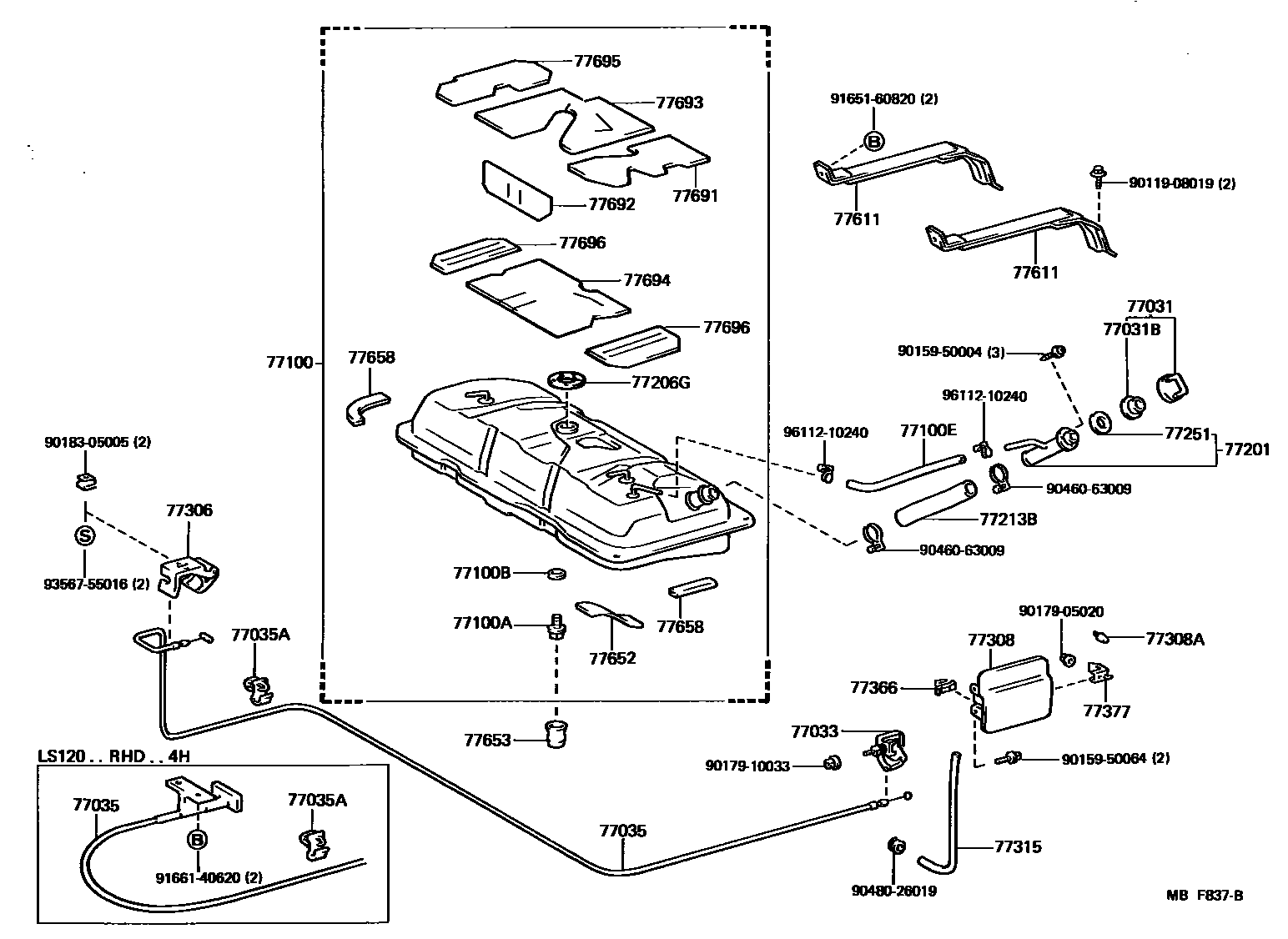

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1

77031CAP ASSY, FUEL TANK

main77310-12100iMS12#,YS120198308-198708

main77310-35061iLS120198308-198708

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iLS120,MS12#,YS120198308-198708

77033LOCK SUB-ASSY, FUEL TANK CAP

main77037-14010iLS120,MS12#,YS120..HT,SED198308-198708

main77037-32010iMS122..WG198308-198708

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77030-30010iLS120..RHD..4H198308-198708

main77035-30070iLS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)198308-198708

main77035-30090iLS120,MS12#,YS120..SED..LHD198308-198708

main77035-91702iMS122..WG198308-198708

77035ACLAMP (FOR FUEL LID LOCK CONTROL CABLE)

main69749-12010iMS12#..ROY..(GEN,SAA); MS122..WG198308-198708

FR

main69749-30030iLS120,MS12#,YS120198308-198708

RR

77100TANK ASSY, FUEL

main77001-30270iMS123,125198308-198708

main77001-39175iMS122..WG198308-198708

main77001-39185iLS120198308-198401

main77001-39195iMS122,YS120..SED198308-198401

77100APLUG(FOR FUEL TANK)

main90105-12018iLS120,MS12#,YS120198308-198708

77100BGASKET(FOR FUEL TANK)

main90430-12245iLS120,MS12#,YS120198308-198708

77100EHOSE, FUEL, NO.2(FOR FUEL TANK)

main90445-14114iMS122..WG198308-198708

L=800

main90445-22010iLS120,MS122,YS120..HT,SED198308-198708

main90445-22912iMS123,125198308-198708

L=220

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-30140iLS120,MS12#,YS120..SED198308-198509

main77201-30160iMS123198509-198708

main77201-91706iMS122..WG198308-198708

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77017-30130iLS120,MS122,YS120..SED198509-198708

main77017-30140iYS120198308-198509

main77203-91704iMS122..WG198308-198708

77206GGASKET (FOR FUEL TANK SUCTION TUBE)

main77169-14020iLS120,MS122,YS120..HT,SED198308-198708

main83361-20030iMS122..WG198308-198708

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-30040iMS123,125198308-198708

main77213-30050iLS120,MS122,YS120..HT,SED198308-198708

main77213-91704iMS122..WG198308-198708

77251SHIELD, FUEL TANK, INLET, NO.1

main77291-12010iLS120,MS12#,YS120198308-198708

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77051-30050-02iLS120,MS12#,YS120..ROY,SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main77051-30050-04iMS122..SED; MS123,YS120;LS120..4F,5F;LS120..LHD..STD198308-198509

BLUE,BLUE,TRIM8#

main77051-30050-05iMS12#,YS120;LS120..4F,5F;LS120..LHD..STD198308-198509

BEIGE,BEIGE,TRIM4#

main77051-30050-06iLS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC)198509-198708

BROWN

main77051-30050-12iMS12#..ROY,SAL198509-198708

MAROON

77308COVER SUB-ASSY, FUEL INLET BOX

main77350-30110iLS120,MS12#,YS120..SED198308-198708

main77350-30120iMS122..HT198509-198708

main77350-91703iMS122..WG198308-198708

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-08003×2iLS120,MS12#,YS120198308-198407

main90541-08011×2iLS120,MS12#,YS120198407-198606

77315HOSE, FUEL FILLER OPENING

main90446-09011iLS120,MS12#,YS120..HT,SED198308-198708

L=590

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-24010iLS120,MS12#,YS120198308-198708

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-24010iLS120,MS12#,YS120198308-198708

77611BAND, FUEL TANK

main77601-30080×2iMS123,125198308-198708

main77601-30090×2iLS120,MS122,YS120..SED198308-198708

main77602-91702iMS122..WG198308-198708

77652CUSHION, FUEL TANK, NO.1

main77651-30060×2iMS123198308-198309

main77651-30070×2iMS123,125198309-198708

77653SHIELD, FUEL TANK DRAIN PLUG

main77292-30020iLS120,MS12#,YS120..HT,SED198308-198708

main77392-30010iYS120198509-198708

77658MOULDING, FUEL TANK EDGE

main77658-30030×3iLS120,MS12#,YS120..HT,SED198308-198708

77691SHEET, FUEL TANK SILENCER, UPPER NO.1

main77691-30020iLS120,MS122,YS120..HT,SED198308-198708

77692SHEET, FUEL TANK SILENCER, LOWER NO.1

main77692-30020iLS120,MS122,YS120..HT,SED198308-198708

77693SHEET, FUEL TANK SILENCER, UPPER NO.2

main77693-30020iLS120,MS122,YS120..HT,SED198308-198708

77694SHEET, FUEL TANK SILENCER, LOWER NO.2

main77694-30020iLS120,MS122,YS120..HT,SED198308-198708

77695SHEET, FUEL TANK SILENCER, UPPER NO.3

main77695-30020iLS120,MS122,YS120..HT,SED198308-198708

77696SHEET, FUEL TANK SILENCER, LOWER NO.3

main77696-30020×2iLS120,MS122,YS120..HT,SED198308-198708

9011908019

main90119-08019

9015950004

main90159-50004

9015950064

main90159-50064

9017905020

main90179-05020

9017910033

main90179-10033

9018305005

main90183-05005

9046063009

main90460-63009

9048026019

main90480-26019

9165160820

main91651-60820

9166140620

main91661-40620

9356755016

main93567-55016

9611210240

main96112-10240

42 parts on this diagram · 12 diagrams in section
