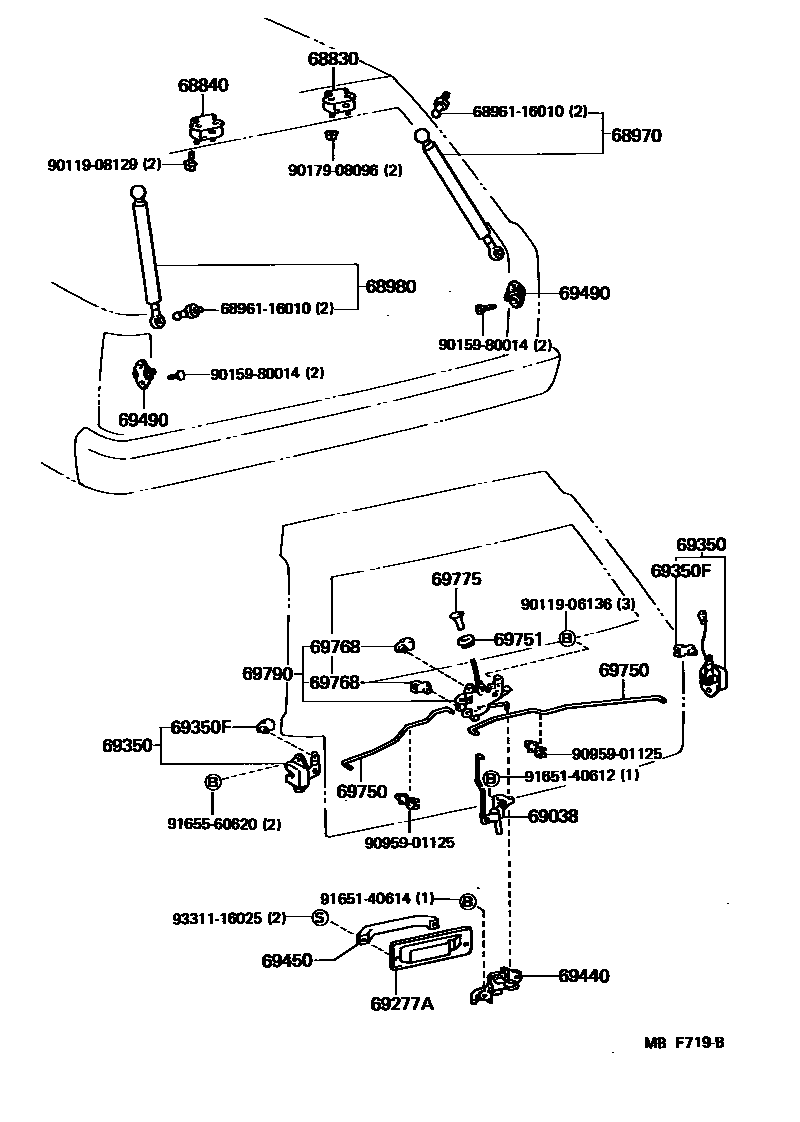

BACK DOOR LOCK & HANDLE
68830HINGE ASSY, BACK DOOR, RH
68840HINGE ASSY, BACK DOOR, LH
68970STAY ASSY, BACK DOOR, RH
W/RR WIPER
W/O RR WIPER
68980STAY ASSY, BACK DOOR
W/RR WIPER
W/O RR WIPER
69038PROTECTOR SUB-ASSY, BACK DOOR CHILD
69277ABEZEL, BACK DOOR INSIDE HANDLE
DEEP MAROON,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
MAROON,MAROON,TRIM3#
BLUE,BLUE,TRIM8#
69350LOCK ASSY, BACK DOOR
RH
LH
69350FSNAP, DOOR LOCK CONTROL ROD
RH
LH
69440HANDLE ASSY, BACK DOOR INSIDE
DEEP MAROON,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
MAROON,MAROON,TRIM3#
BLUE,BLUE,TRIM8#
69450HANDLE ASSY, BACK DOOR PULL
DEEP MAROON,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
MAROON,MAROON,TRIM3#
69490STRIKER ASSY, BACK DOOR LOCK
69750LINK SUB-ASSY, BACK DOOR REMOTE CONTROL
RH
LH
69751HOLDER, DOOR LOCK CONTROL KNOB
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM3#,4#
MAROON,MAROON,TRIM3#
69768SNAP, BACK DOOR LOCK CONTROL LINK
69775BUTTON, DOOR LOCKING(FOR BACK DOOR)
BEIGE,BEIGE,TRIM3#,4#
MAROON,MAROON,TRIM3#
BLUE,BLUE,TRIM8#
BLUE,BLUE,TRIM8#
69790CONTROL ASSY, BACK DOOR LOCK
6896116010BOLT, BACK DOOR STAY
main68961-16010
9011906136
main90119-06136
9011908129
main90119-08129
9015980014
main90159-80014
9017908096
main90179-08096
9095901125
main90959-01125
9165140612
main91651-40612
9165140614
main91651-40614
9165560620
main91655-60620
9331116025
main93311-16025
26 parts on this diagram · 1 diagram in section
