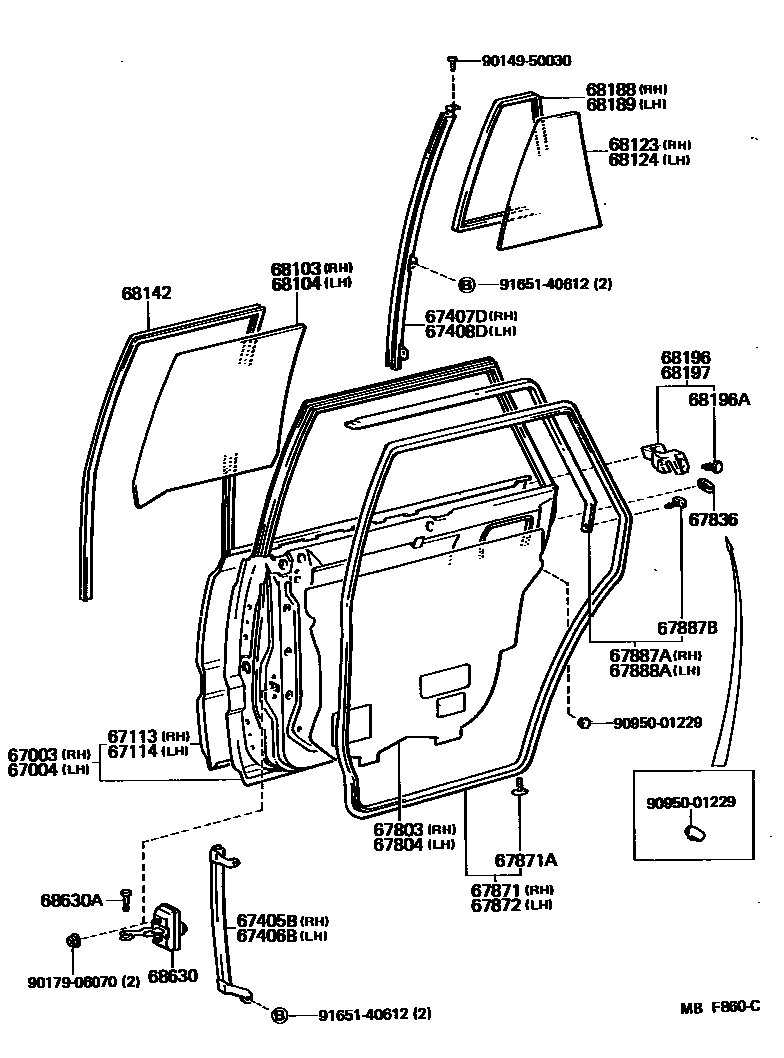

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
*SAA
*SAA
67004PANEL SUB-ASSY, REAR DOOR, LH
*SAA
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67405BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH
67406BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH
67407DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH
67408DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH
67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH
67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
COLD SPEC
67871WEATHERSTRIP, REAR DOOR, RH
67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)
67872WEATHERSTRIP, REAR DOOR, LH
67887AWEATHERSTRIP, REAR DOOR, NO.2 RH
67887BCLIP(FOR REAR DOOR WEATHERSTRIP)
67888AWEATHERSTRIP, REAR DOOR, NO.2 LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*TT,T=4.0
*TEM,T=4.0
BRONZE,*TT,T=4.0
*TT,T=5.0
BRONZE,*TT,T=5.0
*TT,T=4.0
BRONZE,*TT,T=4.0
68104GLASS SUB-ASSY, REAR DOOR, LH
*TT,T=4.0
*TEM,T=4.0
BRONZE,*TT,T=4.0
*TT,T=5.0
BRONZE,*TT,T=5.0
*TT,T=4.0
BRONZE,*TT,T=4.0
68123GLASS, REAR DOOR WINDOW, RH
*TT,T=3.5
*TEM,T=3.5
BRONZE,*TT,T=4.0
*TT,T=4.0
BRONZE,*TT,T=4.0
68124GLASS, REAR DOOR WINDOW, LH
*TT,T=3.5
*TEM,T=3.5
BRONZE,*TT,T=4.0
*TT,T=4.0
BRONZE,*TT,T=4.0
68142RUN, REAR DOOR GLASS
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68196SEAL, REAR DOOR BELT, RH
68196ACLIP(FOR REAR DOOR BELT SEAL)
68197SEAL, REAR DOOR BELT, LH
68630CHECK ASSY, REAR DOOR
68630APIN(FOR REAR DOOR CHECK)
9014950030
main90149-50030
9017906070
main90179-06070
9095001229
main90950-01229
9165140612
main91651-40612
33 parts on this diagram · 4 diagrams in section
