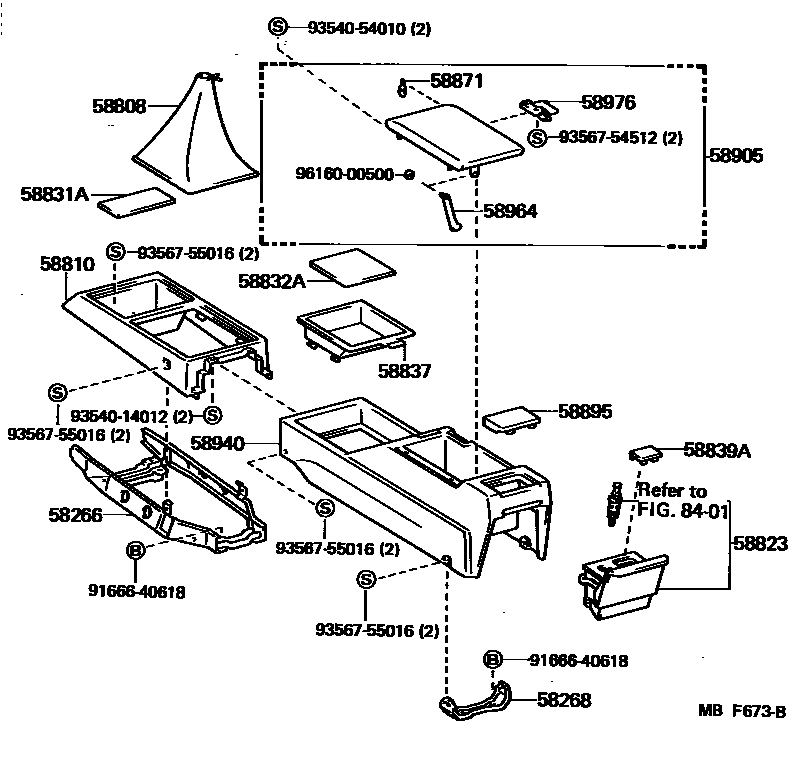

CONSOLE BOX & BRACKET

0001 1 0002 1

58266BRACKET, CONSOLE BOX SUPPORT, FRONT

main58902-30020iLS120,MS12#,YS120..4F,4FC,5F198308-198708

58268BRACKET, CONSOLE BOX SUPPORT, REAR

main58994-30020iLS120,MS12#,YS120..4F,4FC,5F198308-198708

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-30060-02iLS120,MS12#,YS120..5F198308-198312

DEEP MAROON,RED/MAROON,TRIM3#

main58808-30060-04iLS120,MS122,123,YS120..SED..(4F,5F)198308-198708

BLUE,BLUE,TRIM8#

main58808-30060-05iLS120,MS122,123,YS120..4F,5F198308-198509

BEIGE,BEIGE,TRIM4#

main58808-30060-06iLS120,MS122,YS120..(HT,SED)..(4F,5F)198509-198708

BROWN,BROWN,TRIM4#

main58808-30060-12iLS120,MS122,123,YS120..5F198312-198509

DEEP MAROON,DEEP MAROON,TRIM3#

main58808-30060-22iMS122..5F..SAL198509-198708

MAROON,MAROON,TRIM3#

58810CONSOLE ASSY

main58811-30210-02iLS120,MS12#,YS120..4FC,5F198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub58811-30210

main58811-30210-04iLS120,MS12#,YS120..SED..(4F,4FC,5F)198308-198708

BLUE,BLUE,TRIM8#

sub58811-30210

main58811-30210-05iLS120,MS12#,YS120..4F,4FC,5F198308-198509

BEIGE,BEIGE,TRIM4#

sub58811-30210

main58811-30210-06iMS125..SED..4FC;LS120,MS122,123,YS120..(HT,SED)..(4F,4FC,5F)198509-198708

BROWN,BROWN,TRIM4#

sub58811-30210

main58811-30210-12iMS12#..(4FC,5F)..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

sub58811-30210

58823PANEL, CONSOLE, REAR

main58903-30080-02iLS120,MS12#,YS120..4FC,5F198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub58903-30080

main58903-30080-04iLS120,MS12#,YS120..SED..(4F,4FC,5F)198308-198708

BLUE,BLUE,TRIM8#

sub58903-30080

main58903-30080-05iLS120,MS12#,YS120..4F,4FC,5F198308-198509

BEIGE,BEIGE,TRIM4#

sub58903-30080

main58903-30080-06iMS125..SED..4FC;LS120,MS122,123,YS120..(HT,SED)..(4F,4FC,5F)198509-198708

BEIGE,BROWN,TRIM4#

sub58903-30080

main58903-30080-12iMS12#..(4FC,5F)..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

sub58903-30080

58831AGARNISH, CONSOLE UPPER PANEL, FRONT

main58831-30040-02iLS120,MS12#,YS120..4FC,5F198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main58831-30040-04iLS120,MS12#,YS120..SED..(4F,4FC,5F)198308-198708

BLUE,BLUE,TRIM8#

main58831-30040-05iLS120,MS12#,YS120..4F,4FC,5F198308-198509

BEIGE,BEIGE,TRIM4#

main58831-30040-06iMS125..SED..4FC;MS122,123..(HT,SED)..(4FC,5F)..(ROY,SAL)198509-198708

BROWN,BROWN,TRIM4#

main58831-30040-12iMS12#..(4FC,5F)..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

58832AGARNISH, CONSOLE UPPER PANEL, REAR

main58832-30060-02iMS12#..LHD..4FC198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main58832-30060-04iMS12#..LHD..4FC198308-198708

BLUE,BLUE,TRIM8#

main58832-30060-05iMS123..ARL;LS120,MS122,123,YS120..4F,5F198308-198509

BEIGE,BEIGE,TRIM4#

main58832-30060-06iMS125..SED..LHD;MS122..(HT,SED)..LHD..(ROY,SAL)198509-198708

BROWN,BROWN,TRIM4#

main58832-30060-12iMS122,125..LHD..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

58837PANEL, CONSOLE, UPPER REAR

main58822-30150-02iMS12#..LHD..4FC198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub58822-30150

main58822-30150-04iMS122..RHD..5F;LS120,MS123,YS120..RHD..(4F,4FC)198308-198708

BLUE,BLUE,TRIM8#

sub58822-30150

main58822-30150-05iMS123..ARL;LS120,MS122,123,YS120..4F,5F198308-198509

BEIGE,BEIGE,TRIM4#

sub58822-30150

main58822-30150-06iMS125..SED..LHD;MS122,YS120..(HT,SED)..LHD..(4F,4FC,5F)198509-198708

BROWN,BROWN,TRIM4#

sub58822-30150

main58822-30150-12iMS123;MS122..RHD..5F198509-198708

MAROON,MAROON,TRIM3#

sub58822-30150

58839ACOVER, CONSOLE BOX HOLE

main58839-30020iMS123..SAL;LS120,YS120..4F198308-198708

BLUE

58871CUSHION, CONSOLE BOX

main90541-04079iLS120,MS12#,YS120..4F,4FC,5F198308-198708

58895COVER, SWITCH HOLE, NO.1

main55549-30060-02iLS120,MS122,123,YS120..(4FC,5F)..SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub55549-30060

main55549-30060-04iLS120,MS122,YS120..(4F,4FC,5F)..(DLX,SAL,STD)198308-198708

BLUE,BLUE,TRIM8#

sub55549-30060

main55549-30060-05iLS120,MS122,123,YS120..(4F,4FC,5F)..(SAL,STD)198308-198509

BEIGE,BEIGE,TRIM4#

sub55549-30060

main55549-30060-06iLS120,MS122,YS120..(4F,4FC,5F)..(DLX,SAL,STD)198509-198708

BROWN,BROWN,TRIM4#

sub55549-30060

main55549-30060-12iMS122..(4FC,5F)..SAL198509-198708

MAROON,MAROON,TRIM3#

sub55549-30060

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-30080-02iMS12#..RHD..4FC..GEN198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main58905-30080-04iMS12#..RHD..4FC..GEN198308-198509

BLUE,BLUE,TRIM8#

main58905-30080-05iMS12#..RHD..4FC..GEN198308-198509

BEIGE,BEIGE,TRIM4#

main58905-30090-02iMS12#..LHD..4FC198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main58905-30090-04iMS12#..LHD..4FC198308-198708

BLUE,BLUE,TRIM8#

main58905-30090-05iMS123..ARL;MS122,123,YS120..4F,5F198308-198509

BEIGE,BEIGE,TRIM4#

main58905-30090-06iMS122..RHD..5F;LS120,MS123,YS120..RHD..(4F,4FC)198509-198708

BROWN,BROWN,TRIM4#

main58905-30090-12iMS122,125..LHD..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

main58905-30100-02iMS122,125..RHD..4FC198509-198708

MAROON,MAROON,TRIM3#

main58905-30100-04iMS122,125..RHD..4FC198509-198708

BLUE,BLUE,TRIM8#

main58905-30100-06iMS122,125..RHD..4FC198509-198708

BROWN,BROWN,TRIM4#

58940CONSOLE ASSY, REAR

main58901-30050-02iMS12#..RHD..4FC..GEN198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub58901-30050

main58901-30050-04iMS12#..RHD..4FC..GEN198308-198708

BLUE,BLUE,TRIM8#

sub58901-30050

main58901-30050-05iMS12#..RHD..4FC..GEN198308-198509

BEIGE,BEIGE,TRIM4#

sub58901-30050

main58901-30050-06iMS122,125..RHD..4FC198509-198708

BROWN,BROWN,TRIM4#

sub58901-30050

main58901-30050-12iMS122,125..RHD..4FC198509-198708

MAROON,MAROON,TRIM3#

sub58901-30050

main58901-30060-02iMS123..ARL;LS120,MS122,123,YS120..5F198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub58901-30060

main58901-30060-04iMS12#..LHD..4FC198308-198708

BLUE,BLUE,TRIM8#

sub58901-30060

main58901-30060-05iMS123..ARL;LS120,MS122,123,YS120..4F,5F198308-198509

BEIGE,BEIGE,TRIM4#

sub58901-30060

main58901-30060-06iMS122..RHD..5F;LS120,MS123,YS120..RHD..(4F,4FC)198509-198708

BROWN,BROWN,TRIM4#

sub58901-30060

main58901-30060-12iMS122,125..LHD..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

sub58901-30060

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-30030iLS120,MS12#,YS120..4F,4FC,5F198308-198708

58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK

main58976-20010iMS12#..LHD..4FC198308-198708

sub58908-12080

8401

9166640618

main91666-40618

9354014012

main93540-14012

9354054010

main93540-54010

9356754512

main93567-54512

9356755016

main93567-55016

9616000500

main96160-00500

22 parts on this diagram · 2 diagrams in section
