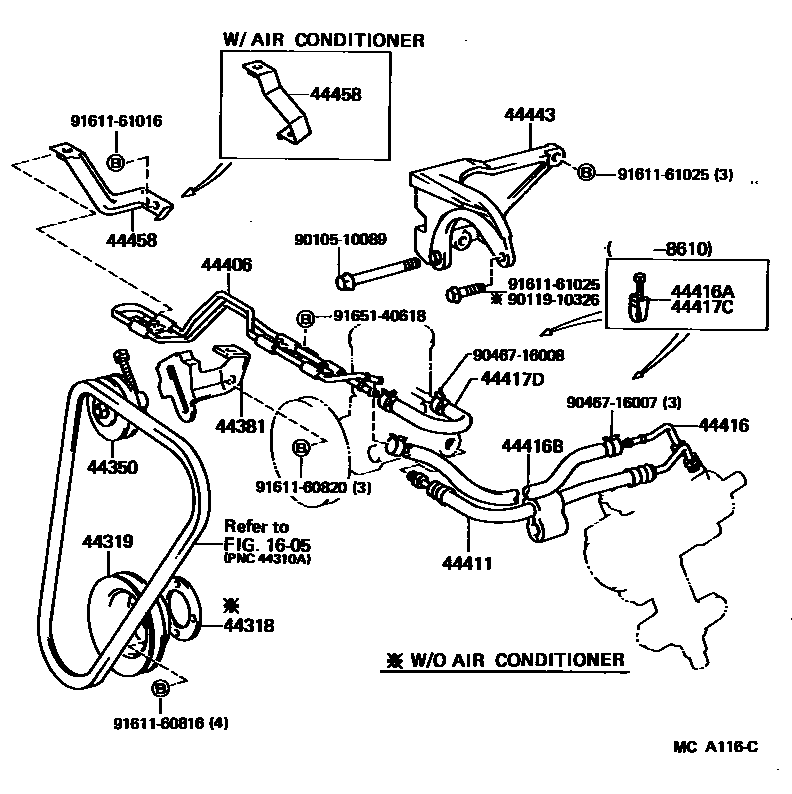

POWER STEERING TUBE
1605V-BELT
44318SPACER, VANE PUMP DRIVE PULLEY
44319PULLEY, VANE PUMP DRIVE
44350PULLEY ASSY, POWER STEERING IDLE
44381BRACKET, POWER STEERING IDLE PULLEY
44406TUBE SUB-ASSY, RETURN
44411HOSE, PRESSURE FEED
W/ESC,PUMP TO ESC
44416TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416ACLAMP(FOR RETURN HOSE)
44416BHOSE(FOR STEERING GEAR TO RETURN TUBE)
44417TUBE, RETURN, NO.2
44417CCLAMP, RETURN TUBE HOSE
44417DHOSE(FOR RETURN TUBE TO RESERVOIR)
44443BRACKET, PUMP
44458BRACKET, TUBE SUPPORT, NO.2
W/COOLER
9010510089
main90105-10089
9011910326
main90119-10326
9046716007
main90467-16007
9046716008
main90467-16008
9161160816
main91611-60816
9161160820
main91611-60820
9161161016
main91611-61016
9161161025
main91611-61025
9165140618
main91651-40618
24 parts on this diagram · 11 diagrams in section
