TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

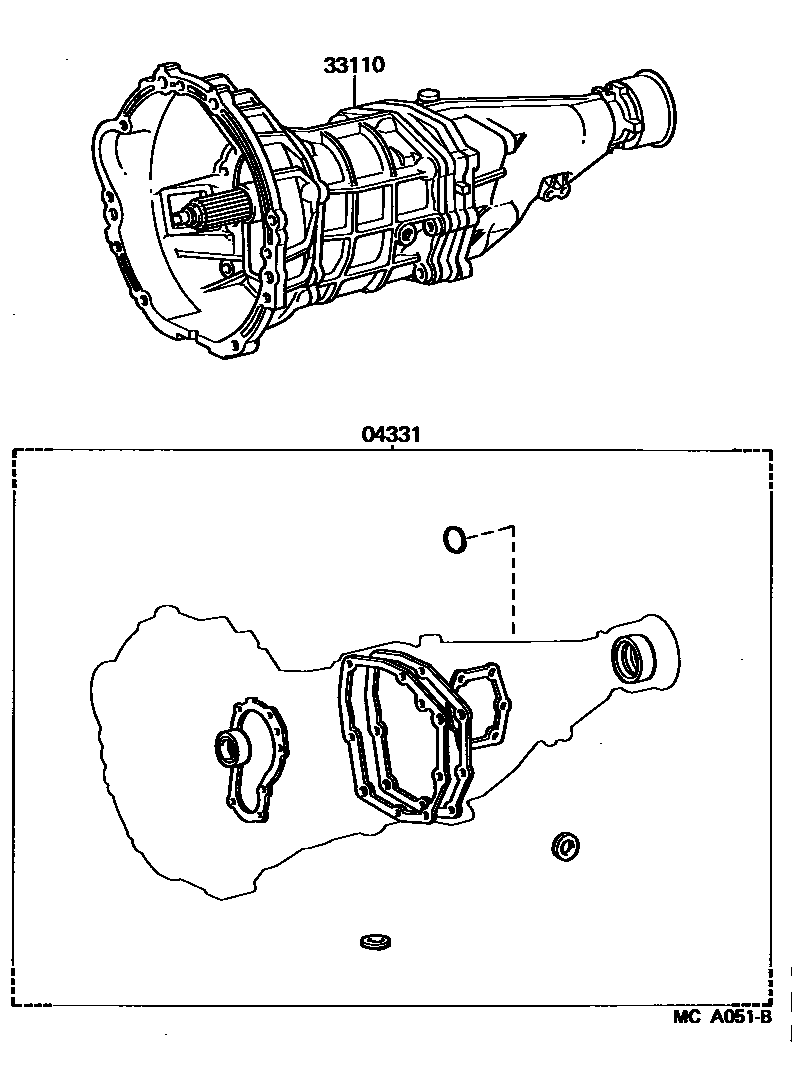

Parts diagram

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-20040i198308-198401

main04331-20041i198401-198708

main04331-20050i198308-198708

33110TRANSMISSION ASSY, MANUAL

main33030-3A010i198308-198708

main33030-3A030i198308-198509

main33030-3A070i198308-198708

main33030-3A090i198308-198708

main33030-3A100i198308-198708

main33030-3A110i198308-198708

main33030-3A120i198308-198509

main33030-3A140i198308-198509

main33030-3A160i198308-198708

main33030-3A170i198509-198708

main33030-3A180i198308-198708

main33030-3A200i198509-198708

2 parts on this diagram · 2 diagrams in section
