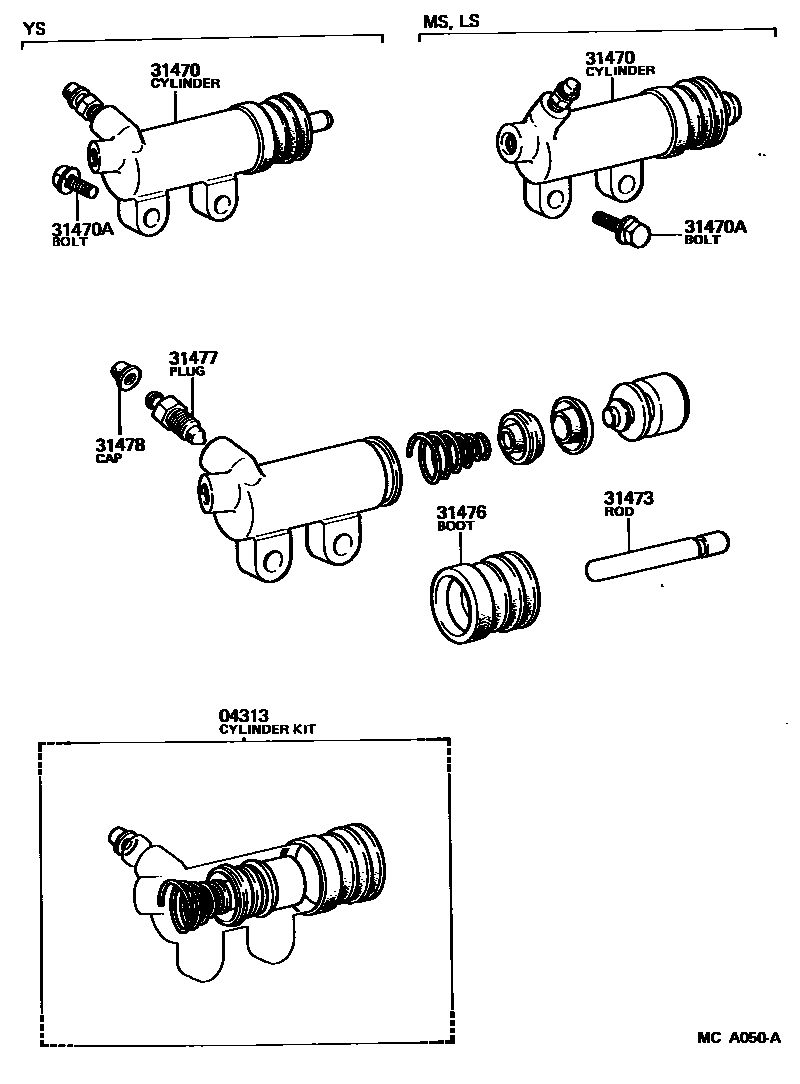

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-22020iLS120,MS122,123,YS120..MTM198308-198708

sub04313-12030

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-30220iLS120,MS122,123..MTM198308-198708

sub31470-30221

main31470-35050iYS120198308-198708

sub31470-30260

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60825iLS120,MS122,123,YS120..MTM198308-198708

*8-1.25PX25-25

sub91611-B0825

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iLS120,MS122,123,YS120..MTM198308-198708

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iLS120,MS122,123,YS120..MTM198308-198708

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iLS120,MS122,123,YS120..MTM198308-198708

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iLS120,MS122,123,YS120..MTM198308-198708

7 parts on this diagram · 1 diagram in section
