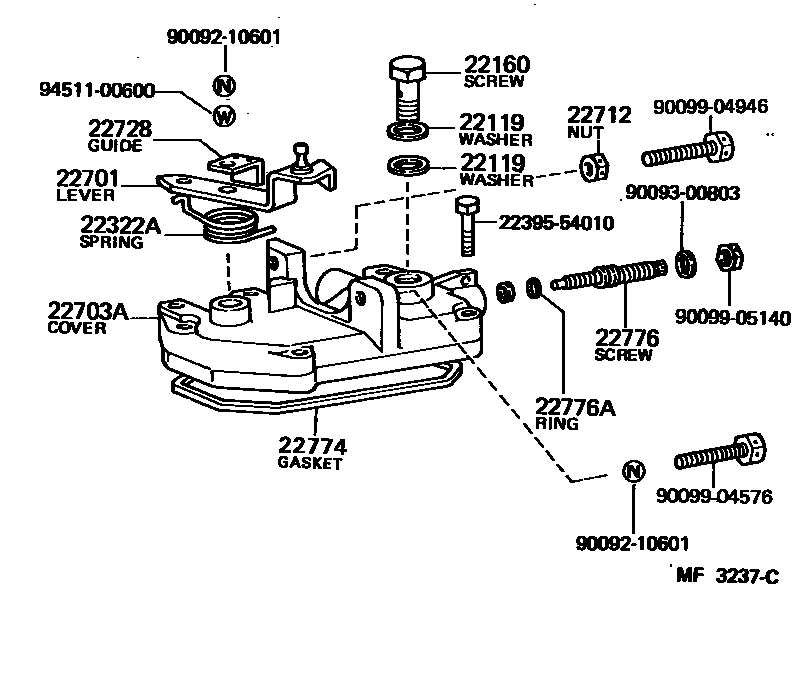

INJECTION PUMP BODY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

22119WASHER, AIR BLEEDER NIPPLE

main22119-77020i2L..LS120198308-198705

sub90201-12109

main90201-12109i2L..LS120198705-198708

22160SCREW SUB-ASSY, OVERFLOW

main22160-64010i2L..LS120198308-198708

22322ASPRING, RETURN

main22322-54132i2L..LS120..RHD198411-198708

HONG KONG SPEC,SINGAPORE SPEC

main22322-54310i2L..LS120198308-198406

main22322-54470i2L..LS120198406-198708

sub22322-54730

22701LEVER SUB-ASSY, ADJUSTING

main22701-54042i2L..LS120198308-198406

NO MARK

main22701-54043i2L..LS120198308-198406

MARK"0"

main22701-54120i2L..LS120198308-198406

HIGH ALTITUDE SPEC,NO MARK

sub22701-56350

main22701-54121i2L..LS120198308-198406

HIGH ALTITUDE SPEC,MARK"0"

sub22701-56351

main22701-54451i2L..LS120198406-198708

TYPE 1

main22701-54452i2L..LS120198406-198708

TYPE 2

22703ACOVER SUB-ASSY, GOVERNOR

main22703-54020i2L..LS120198308-198406

main22703-54132i2L..LS120198406-198708

main22703-54141i2L..LS120198308-198409

HIGH ALTITUDE SPEC

22712NUT, ROCK

main22775-77121i2L..LS120198308-198708

22728GUIDE, RETURN SPRING

main22728-54010i2L..LS120198308-198406

22774GASKET, GOVERNOR COVER

main22774-54010i2L..LS120198308-198708

sub22774-54270

22776SCREW, SMOKE SET ADJUSTING

main22776-54110i2L..LS120198308-198708

22776ARING, O(FOR SMOKE SET SCREW)

main90099-14047i2L..LS120198308-198708

sub22193-54771

2239554010BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-54010

9009210601

main90092-10601

9009300803

main90093-00803

9009904576

main90099-04576

9009904946

main90099-04946

9009905140

main90099-05140

9451100600

main94511-00600

17 parts on this diagram · 6 diagrams in section
