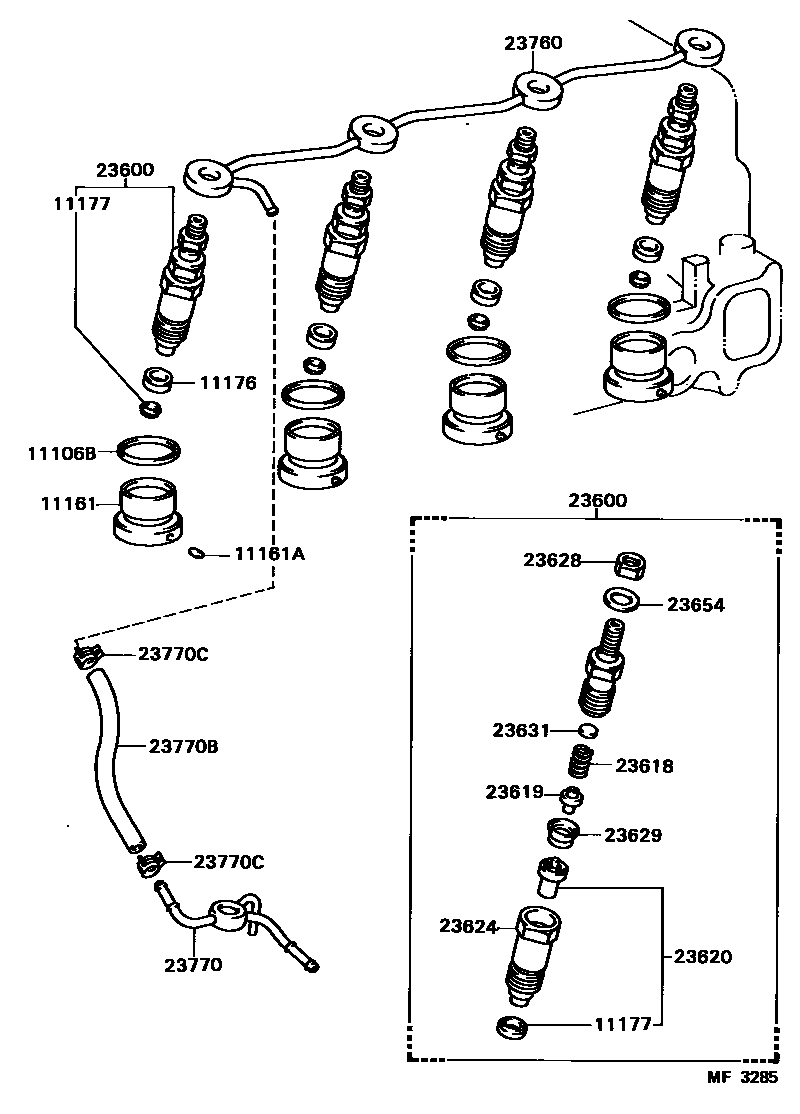

INJECTION NOZZLE
11106BSHIM(FOR COMBUSTION CHAMBER)
T=0.05
T=0.10
T=0.15
T=0.20
11161CHAMBER, COMBUSTION
11161APIN, STRAIGHT(FOR COMBUSTION CHAMBER)
11176SEAT, INJECTION NOZZLE
23600HOLDER & NOZZLE SET, NOZZLE
HONG KONG SPEC,SINGAPORE SPEC
23619PIN, NOZZLE HOLDER PRESSURE
23620NOZZLE ASSY
HONG KONG SPEC,SINGAPORE SPEC
23624NUT, NOZZLE RETAINING
23628NUT(FOR RING PACKING SETTING)
23629PIECE, DISTANCE(FOR NOZZLE)
23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)
T=1.000
T=0.70,HONG KONG OR SINGAPORE SPEC
T=0.75,HONG KONG OR SINGAPORE SPEC
T=0.80,HONG KONG OR SINGAPORE SPEC
T=0.85,HONG KONG OR SINGAPORE SPEC
T=0.95,HONG KONG OR SINGAPORE SPEC
T=0.90,HONG KONG OR SINGAPORE SPEC
T=1.050
T=1.100
T=1.150
T=1.200
T=1.250
T=1.300
T=1.350
T=1.400
T=1.450
T=1.500
T=1.550
T=1.600
T=1.650
T=1.700
T=1.750
T=1.800
T=1.850
T=1.900
T=1.950
23654WASHER(FOR RING PACKING)
23760PIPE ASSY, NOZZLE LEAKAGE
23770PIPE ASSY, NOZZLE LEAKAGE, NO.2
HIGH ALTITUDE SPEC
23770BHOSE, FUEL
23770CCLAMP OR CLIP(FOR FUEL HOSE SET)
sub96132-51000
18 parts on this diagram · 1 diagram in section
