CARBURETOR ASSEMBLY

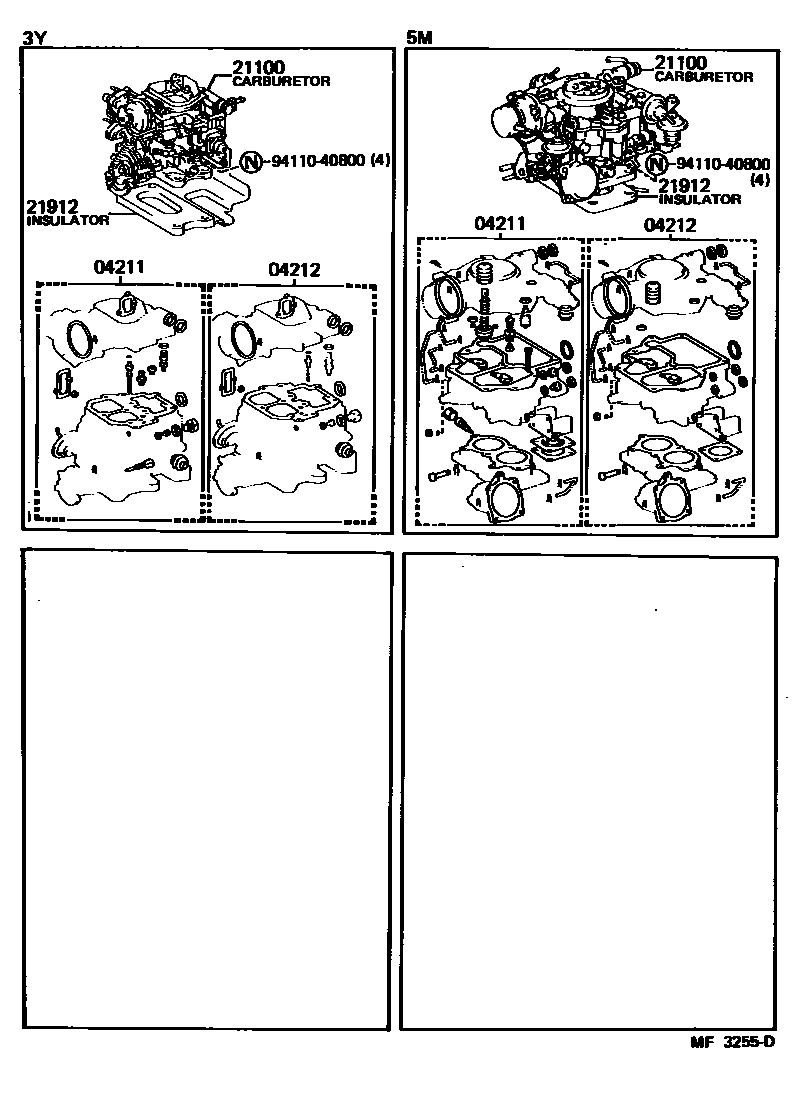

Parts diagram

04211CARBURETOR KIT

main04211-43010i198308-198411

main04211-43011i198411-198708

main04211-43020i198401-198411

main04211-43021i198411-198708

main04211-73030i198308-198708

04212GASKET KIT, CARBURETOR

main04212-45023i198308-198708

main04212-71010i198308-198310

main04212-71020i198310-198708

21100CARBURETOR ASSY

main21100-43030i198308-198708

main21100-43040i198401-198708

main21100-73060i198308-198708

21912INSULATOR, CARBURETOR HEAT

main21912-45011i198308-198708

main21912-71010i198308-198408

main21912-72010i198408-198708

9411040800

main94110-40800

5 parts on this diagram · 1 diagram in section
