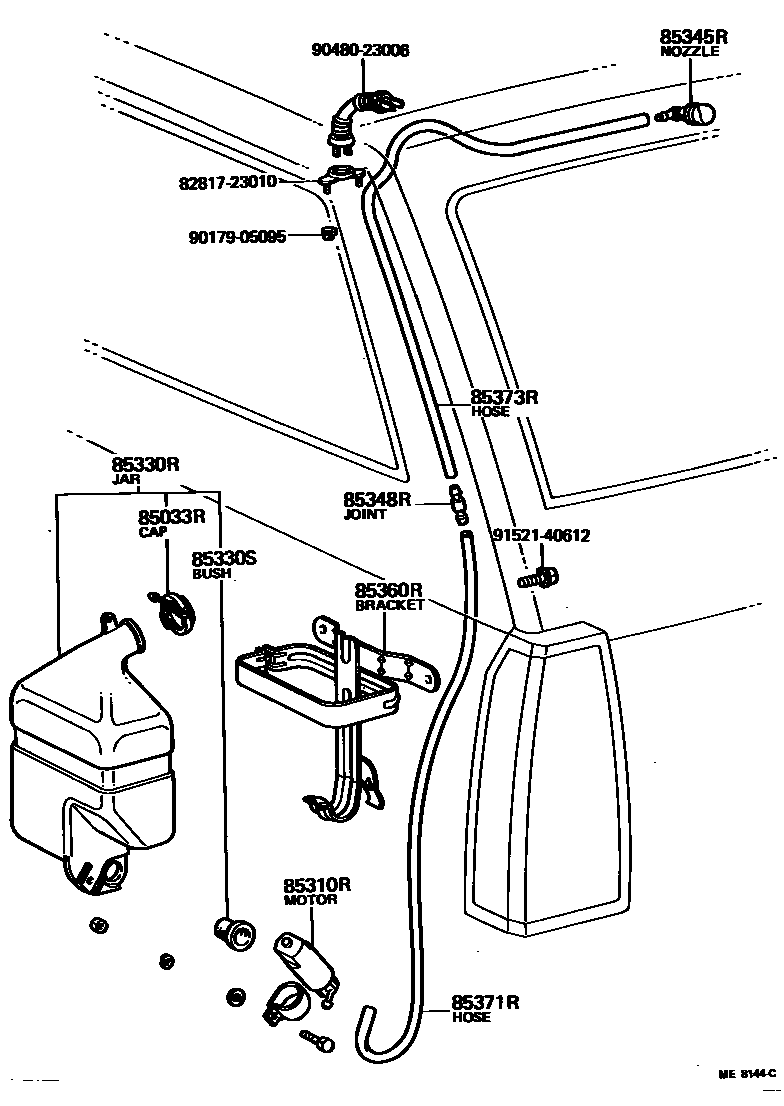

REAR WASHER

85033RCAP ASSY, REAR WASHER

main85033-36120197909-198307

85310RMOTOR ASSY, REAR WASHER

main85310-20100197909-198307

85330RJAR ASSY, REAR WASHER

main85330-23011197909-198307

85330SBUSH, REAR WASHER JAR

main90099-32089197909-198307

85345RNOZZLE, REAR WASHER

main85035-91701197909-198307

85348RJOINT, REAR WASHER HOSE, NO.1

main85355-87201197909-198307

85360RBRACKET ASSY, REAR WASHER

main85360-91701197909-198307

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90446-06302197909-198307

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33359197909-198307

8281723010PROTECTOR, WIRING HARNESS, NO.1

main82817-23010

9017905095

main90179-05095

9048023006

main90480-23006

9152140612

main91521-40612

13 parts on this diagram · 1 diagram in section
