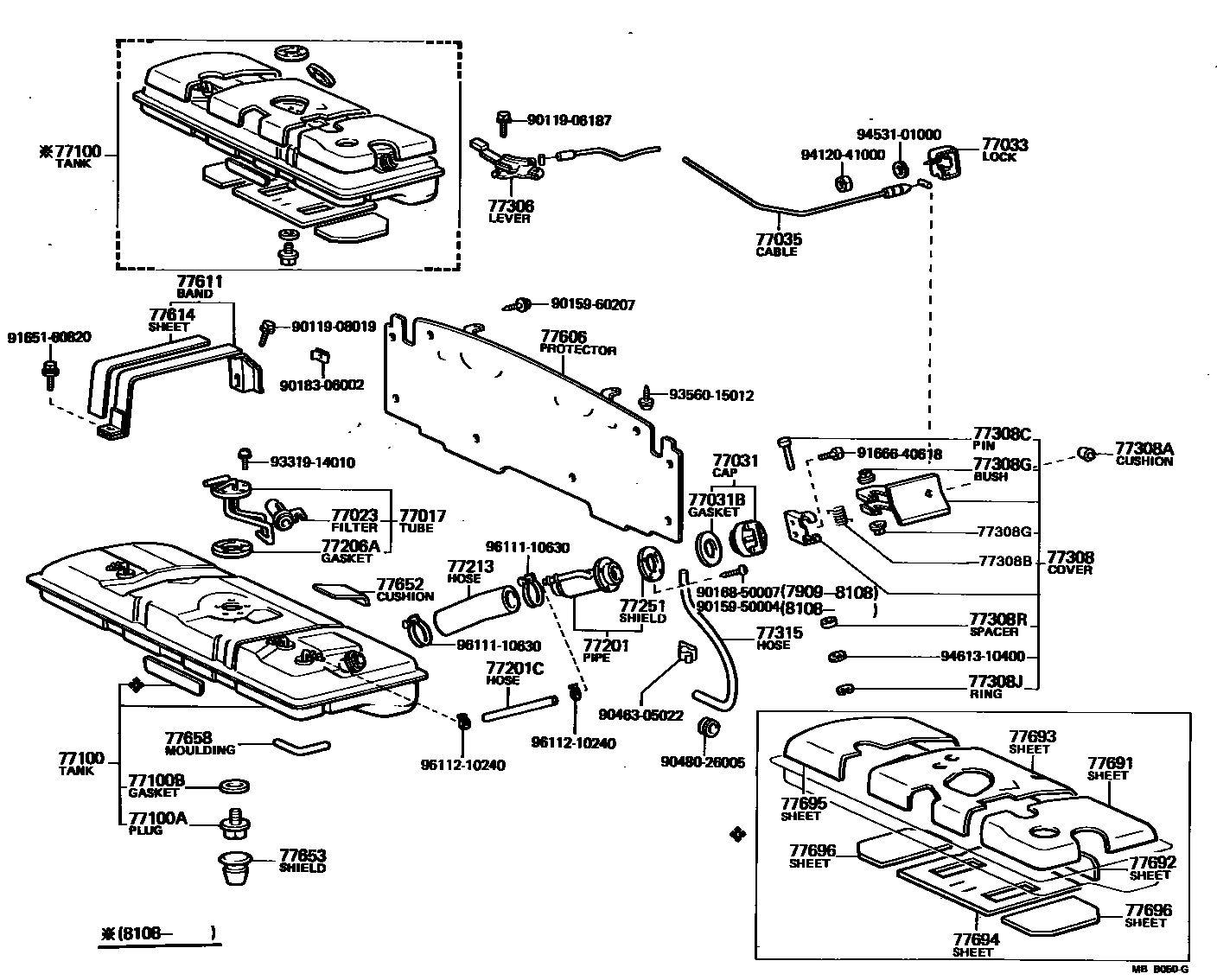

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1

77017TUBE SUB-ASSY, FUEL AND EVAPORATION VENT

main77017-30070iMS112..SED..EFI197909-198307

main77017-30080iLS110..SED197909-198307

main77017-30090iRS110197909-198307

main77017-30100iMS11#..SED..CBR197909-198307

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-12031iMS11#,RS110..SED..CBR197909-198307

main77023-22040iLS110,MS11#..WG..(CBR,DSL)197909-198307

main77023-30010iMS112..EFI197909-198307

77031CAP ASSY, FUEL TANK

main77310-12100iLS110,MS112,RS110198108-198307

main77310-14070iLS110,MS11#,RS110197909-198108

main77310-35061iLS110198205-198307

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iLS110,MS11#,RS110197909-198307

77033LOCK SUB-ASSY, FUEL TANK CAP

main77033-14020iLS110,MS112,RS110..SED..(DLX,ROY,SAL)197909-198307

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-30020iLS110,MS112,RS110..SED..LHD..(DLX,ROY,SAL)197909-198307

main77035-30040iMS11#..RHD..(ROY,SAL)197909-198307

77100TANK ASSY, FUEL

main77001-30930iLS110,MS112..SED..(DSL,EFI)197909-198108

main77001-30931iMS11#,RS110..SED..CBR197909-198108

main77001-39025iLS110,MS112..SED..(DSL,EFI)198108-198307

main77001-39026iMS112,RS110..SED..CBR198108-198307

main77001-39045iMS112..WG..CBR198108-198302

main77001-39046iMS112..WG..CBR198302-198307

main77001-39055iLS110,MS112..WG..EUR198108-198302

main77001-39056iLS110,MS112..WG..EUR198302-198307

main77001-39075iMS112..WG..CBR198108-198302

RUSTPROOF PAINTED

main77001-39076iMS112..WG..CBR198302-198307

RUSTPROOF PAINTED

main77001-91708iMS11#..WG..CBR197909-198108

main77001-91709iLS110..WG197909-198108

RUSTPROOF PAINTED

main77001-91711iMS11#..WG..CBR197909-198108

RUSTPROOF PAINTED

main77001-91712iLS110..WG..GEN197909-198108

77100APLUG(FOR FUEL TANK)

main90105-12018iLS110,MS11#,RS110197909-198307

77100BGASKET(FOR FUEL TANK)

main90430-12245iLS110,MS11#,RS110197909-198307

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-30130iLS110,MS11#,RS110..SED197909-198108

main77201-30131iLS110,MS112,RS110..SED198108-198307

main77201-91703iLS110,MS11#..WG197909-198108

main77201-91704iLS110,MS112..WG198108-198307

77201CHOSE, FUEL, NO.3(FOR FUEL TANK INLET PIPE)

main90445-22015iLS110,MS11#,RS110..SED197909-198307

L=150

main90445-22912iLS110,MS11#..WG197909-198205

L=220

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77203-91704iLS110,MS11#..WG..(CBR,DSL)197909-198307

main77203-91705iMS112..WG..EFI197909-198307

77206AGASKET (FOR FUEL TANK SUCTION TUBE)

main77169-14020iLS110,MS11#,RS110..SED197909-198307

77213HOSE, FUEL TANK SUB INLET

main77213-30030iLS110,MS11#,RS110..SED197909-198307

main77213-91702iLS110,MS11#..WG197909-198205

main77213-91703iLS110,MS112..WG198205-198307

77251SHIELD, FUEL TANK, INLET, NO.1

main77291-12010iLS110,MS11#,RS110197909-198307

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77051-30010-02iMS11#..LHD..(ROY,SAL)197909-198108

DARK WINE,RED/MAROON,TRIM3#

main77051-30010-04iMS11#..LHD..(ROY,SAL)197909-198108

BLUE,BLUE,TRIM8#

main77051-30010-05iMS11#..LHD..(ROY,SAL)197909-198108

GREIGE,BEIGE,TRIM4#

main77051-30020-02iMS11#..RHD..(ROY,SAL)197909-198108

DARK WINE,RED/MAROON,TRIM3#

main77051-30020-04iMS11#..RHD..(ROY,SAL)197909-198108

BLUE,BLUE,TRIM8#

main77051-30020-05iMS11#..RHD..(ROY,SAL)197909-198108

GREIGE,BEIGE,TRIM4#

main77051-30030-03iLS110,MS112..SED..RHD..(DLX,ROY,SAL)198108-198307

GRAY,GRAY,TRIM1#

main77051-30030-04iLS110,MS112..SED..RHD..(DLX,ROY,SAL)198108-198307

BLUE,BLUE,TRIM8#

main77051-30030-05iLS110,MS112..SED..RHD..(DLX,ROY,SAL)198108-198307

BEIGE,BEIGE,TRIM4#

main77051-30040-03iLS110,MS112,RS110..SED..LHD..(DLX,ROY,SAL)198108-198307

GRAY,GRAY,TRIM1#

main77051-30040-04iLS110,MS112,RS110..SED..LHD..(DLX,ROY,SAL)198108-198307

BLUE,BLUE,TRIM8#

main77051-30040-05iLS110,MS112,RS110..SED..LHD..(DLX,ROY,SAL)198108-198307

BEIGE,BEIGE,TRIM4#

77308COVER SUB-ASSY, FUEL INLET BOX

main77350-30080iLS110,MS11#,RS110..SED197909-198307

main77350-91702iLS110,MS11#..WG197909-198307

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-05018iLS110,MS11#,RS110..SED197909-198307

main90541-06001iLS110,MS11#..WG197909-198307

77308BSPRING, TORSION(FOR FUEL INLET BOX COVER)

main90508-16005iLS110,MS11#,RS110..SED197909-198307

77308CPIN, STRAIGHT(FOR FUEL INLET BOX COVER)

main90249-04069iLS110,MS11#,RS110..SED197909-198307

77308GBUSH(FOR FUEL INLET BOX COVER)

main90386-06001iLS110,MS11#,RS110..SED197909-198307

77308JRING(FOR FUEL INLET BOX COVER)

main96160-00300iLS110,MS11#,RS110..SED197909-198307

77308RSPACER(FOR FUEL INLET BOX COVER)

main90561-04001iLS110,MS11#,RS110..SED197909-198307

77315HOSE, FUEL FILLER OPENING

main90446-09004iLS110,MS11#,RS110..SED197909-198307

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-30100iMS11#..SED197909-198307

W/DUAL AIR CON

main77606-30120iLS110,MS11#,RS110..SED..(BTP,DLX,SAL)197909-198307

W/BOX

77611BAND, FUEL TANK

main77601-30070iLS110,MS11#,RS110..SED197909-198307

main77601-91703iLS110,MS11#..WG197909-197911

main77601-91704iLS110,MS11#..WG197911-198205

main77601-91704iLS110,MS112..WG198205-198307

RH

main77602-91701iLS110,MS112..WG198205-198307

LH

77614SEAT, FUEL TANK BAND

main77616-30050iLS110,MS11#,RS110..SED197909-198307

77652CUSHION, FUEL TANK, NO.1

main77651-30050iLS110,MS11#,RS110..SED197909-198307

77653SHIELD, FUEL TANK DRAIN PLUG

main77292-30020iLS110,MS11#,RS110..SED197909-198307

77658MOULDING, FUEL TANK EDGE

main77658-30030iLS110,MS11#,RS110..SED197909-198307

77691SHEET, FUEL TANK SILENCER, UPPER NO.1

main77691-30010iLS110,MS112,RS110..SED198101-198307

77692SHEET, FUEL TANK SILENCER, LOWER NO.1

main77692-30010iLS110,MS112,RS110..SED198101-198307

77693SHEET, FUEL TANK SILENCER, UPPER NO.2

main77693-30010iLS110,MS112,RS110..SED198101-198307

77694SHEET, FUEL TANK SILENCER, LOWER NO.2

main77694-30010iLS110,MS112,RS110..SED198101-198307

77695SHEET, FUEL TANK SILENCER, UPPER NO.3

main77695-30010iLS110,MS112,RS110..SED198101-198307

77696SHEET, FUEL TANK SILENCER, LOWER NO.3

main77696-30010iLS110,MS112,RS110..SED198101-198307

9011906187

main90119-06187

9011908019

main90119-08019

9015950004

main90159-50004

9015960207

main90159-60207

9016850007

main90168-50007

9018306002

main90183-06002

9046305022

main90463-05022

9048026005

main90480-26005

9165160820

main91651-60820

9166640618

main91666-40618

9331914010

main93319-14010

9356015012

main93560-15012

9412041000

main94120-41000

9453101000

main94531-01000

9461310400

main94613-10400

9611110630

main96111-10630

9611210240

main96112-10240

53 parts on this diagram · 13 diagrams in section
