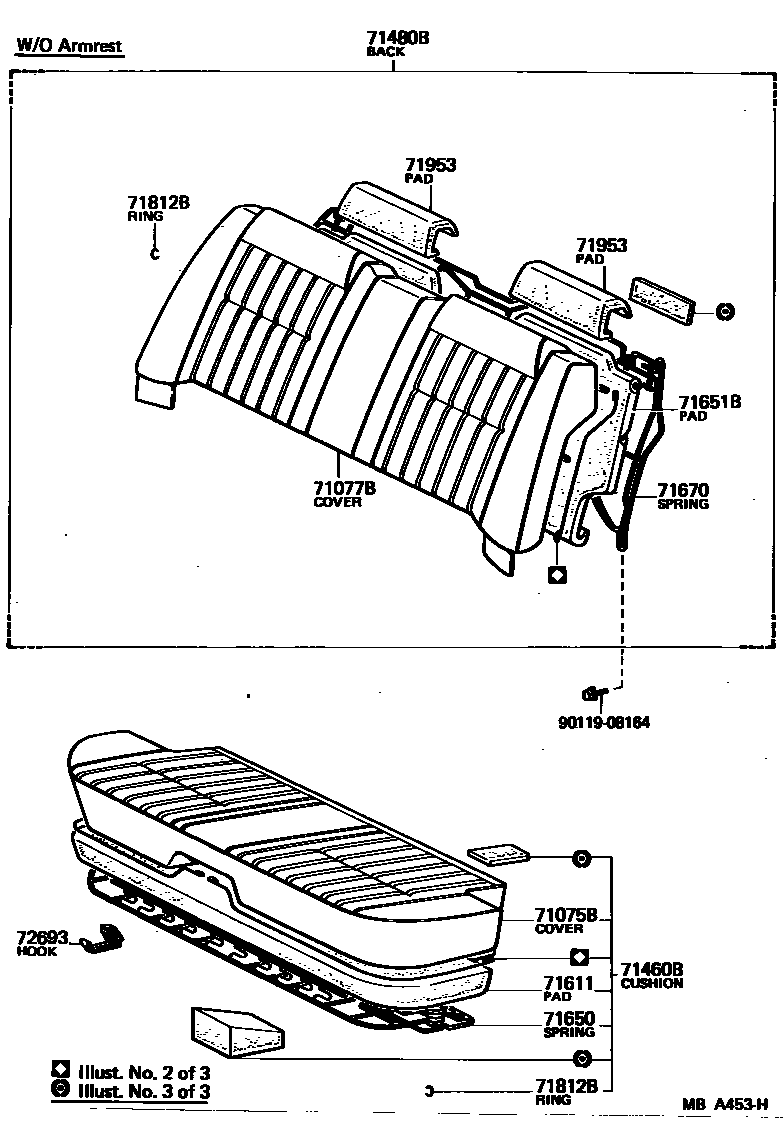

REAR SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-30640-03iLS110,RS110..SED..BTP198108-198203

PF,GRAY,GRAY,TRIM1#

main71075-30640-04iLS110,MS11#,RS110..SED..(3FC,4F,4FC)..DLX..GEN; LS110,MS11#,RS110..SED..BTP197909-198108

PF,BLUE,BLUE,TRIM8#

main71075-30640-05iLS110,MS11#,RS110..SED..(3FC,4F,4FC)..DLX..GEN; LS110,MS11#,RS110..SED..BTP197909-198108

PF,GREIGE,BEIGE,TRIM4#

main71075-30640-15iLS110,RS110..SED..BTP198108-198112

PF,BEIGE,BEIGE,TRIM4#

main71075-30641-03iLS110,RS110..SED..BTP198203-198307

PF,GRAY,GRAY,TRIM1#

main71075-30641-15iLS110,RS110..SED..BTP198112-198307

PF,BEIGE,BEIGE,TRIM4#

main71075-30670-02iMS112..ARL198008-198108

FB,DARK WINE,RED/MAROON,TRIM3#

main71075-30670-04iMS11#,RS110..SAL197909-198108

FB,BLUE,BLUE,TRIM8#

main71075-30670-05iMS11#,RS110..SAL197909-198108

FB,GREIGE,BEIGE,TRIM4#

main71075-30671-03iMS112,RS110..SAL198108-198307

FB,GRAY,GRAY,TRIM1#

main71075-30671-04iMS112,RS110..SAL198108-198307

FB,BLUE,BLUE,TRIM8#

main71075-30671-05iMS112,RS110..SAL198108-198307

FB,BEIGE,BEIGE,TRIM4#

main71075-30680-02iMS11#..ROY..GEN197909-198108

FB,DARK WINE,RED/MAROON,TRIM3#

main71075-30680-04iMS11#..ROY..GEN197909-198108

FB,BLUE,BLUE,TRIM8#

main71075-30680-05iMS11#..ROY..GEN197909-198108

FB,GREIGE,BEIGE,TRIM4#

main71075-30681-03iMS112..ROY..GEN198108-198307

FB,GRAY,GRAY,TRIM1#

main71075-30681-04iMS112..ROY..GEN198108-198307

FB,BLUE,BLUE,TRIM8#

main71075-30681-05iMS112..ROY..GEN198108-198307

FB,BEIGE,BEIGE,TRIM4#

main71075-30690-04iLS110,MS11#,RS110..SED..DLX; LS110,RS110..SED..(4F,5F)..BTP197909-198108

FB,BLUE,BLUE,TRIM8#

main71075-30690-05iLS110,MS11#,RS110..SED..DLX; LS110,RS110..SED..(4F,5F)..BTP197909-198108

FB,GREIGE,BEIGE,TRIM4#

main71075-30691-03iLS110,MS112,RS110..SED..(BTP,DLX)198108-198307

FB,GRAY,GRAY,TRIM1#

main71075-30691-05iLS110,MS112,RS110..SED..(BTP,DLX)198108-198307

FB,BEIGE,BEIGE,TRIM4#

main71075-30820-03iMS112..ARL198108-198307

FB,GRAY,GRAY,TRIM1#

main71075-30820-04iMS112..ARL198108-198307

FB,BLUE,BLUE,TRIM8#

main71075-30820-05iMS112..ARL198108-198307

FB,BEIGE,BEIGE,TRIM4#

main71075-91723-04iMS111..WG..DLX;LS110,MS112..WG197909-198108

FB,BLUE,BLUE,TRIM8#

main71075-91723-05iMS111..WG..DLX;LS110,MS112..WG197909-198108

FB,GREIGE,BEIGE,TRIM4#

main71075-91725-04iLS110,MS112..WG;MS111..WG..LHD..4H;MS111..WG..(3FC,4F)197909-198108

PF,BLUE,BLUE,TRIM8#

main71075-91725-05iLS110,MS112..WG;MS111..WG..LHD..4H;MS111..WG..(3FC,4F)197909-198108

PF,GREIGE,BEIGE,TRIM4#

main71075-91725-15iLS110..WG198108-198112

PF,BEIGE,BEIGE,TRIM4#

main71075-91729-04iLS110,MS112..WG198108-198307

FB,BLUE,BLUE,TRIM8#

main71075-91729-05iLS110,MS112..WG198108-198307

FB,BEIGE,BEIGE,TRIM4#

main71075-91732-15iLS110..WG198112-198307

PF,BEIGE,BEIGE,TRIM4#

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-30670-03iLS110,RS110..SED..BTP198108-198203

PF,GRAY,GRAY,TRIM1#

main71077-30670-04iLS110,MS11#,RS110..SED..(3FC,4F,4FC)..DLX..GEN; LS110,MS11#,RS110..SED..BTP198002-198108

PF,BLUE,BLUE,TRIM8#

main71077-30670-05iLS110,MS11#,RS110..SED..(3FC,4F,4FC)..DLX..GEN; LS110,MS11#,RS110..SED..BTP198002-198108

PF,GREIGE,BEIGE,TRIM4#

main71077-30670-15iLS110,RS110..SED..BTP198108-198112

PF,BEIGE,BEIGE,TRIM4#

main71077-30671-03iLS110,RS110..SED..BTP198203-198307

PF,GRAY,GRAY,TRIM1#

main71077-30671-15iLS110,RS110..SED..BTP198112-198307

PF,BEIGE,BEIGE,TRIM4#

main71077-30690-02iMS11#,RS110..SAL197909-198108

FB,DARK WINE,RED/MAROON,TRIM3#

main71077-30690-04iMS112..ARL198008-198108

FB,BLUE,BLUE,TRIM8#

main71077-30690-05iMS112..ARL198008-198108

FB,GREIGE,BEIGE,TRIM4#

main71077-30691-03iMS112,RS110..SAL198108-198307

FB,GRAY,GRAY,TRIM1#

main71077-30691-04iMS112,RS110..SAL198108-198307

FB,BLUE,BLUE,TRIM8#

main71077-30691-05iMS112,RS110..SAL198108-198307

FB,BEIGE,BEIGE,TRIM4#

main71077-30700-02iMS11#..ROY..GEN197909-198108

FB,DARK WINE,RED/MAROON,TRIM3#

main71077-30700-04iMS11#..ROY..GEN197909-198108

FB,BLUE,BLUE,TRIM8#

main71077-30700-05iMS11#..ROY..GEN197909-198108

FB,GREIGE,BEIGE,TRIM4#

main71077-30701-03iMS112..ROY..GEN198108-198307

FB,GRAY,GRAY,TRIM1#

main71077-30701-04iMS112..ROY..GEN198108-198307

FB,BLUE,BLUE,TRIM8#

main71077-30701-05iMS112..ROY..GEN198108-198307

FB,BEIGE,BEIGE,TRIM4#

main71077-30710-04iLS110,MS11#,RS110..SED..DLX; LS110,RS110..SED..(4F,5F)..BTP197909-198108

FB,BLUE,BLUE,TRIM8#

main71077-30710-05iLS110,MS11#,RS110..SED..DLX; LS110,RS110..SED..(4F,5F)..BTP197909-198108

FB,GREIGE,BEIGE,TRIM4#

main71077-30720-04iLS110,MS111,RS110..SED..(3FC,4F)..DLX; LS110,MS111,RS110..SED..BTP..GEN197909-198002

PF,BLUE,BLUE,TRIM8#

main71077-30720-05iLS110,MS111,RS110..SED..(3FC,4F)..DLX; LS110,MS111,RS110..SED..BTP..GEN197909-198002

PF,GREIGE,BEIGE,TRIM4#

main71077-30731-03iLS110,MS112,RS110..SED..(BTP,DLX)198108-198307

FB,GRAY,GRAY,TRIM1#

main71077-30731-05iLS110,MS112,RS110..SED..(BTP,DLX)198108-198307

FB,BEIGE,BEIGE,TRIM4#

main71077-30850-03iMS112..ARL198108-198307

FB,GRAY,GRAY,TRIM1#

main71077-30850-04iMS112..ARL198108-198307

FB,BLUE,BLUE,TRIM8#

main71077-30850-05iMS112..ARL198108-198307

FB,BEIGE,BEIGE,TRIM4#

main71077-91725-04iMS111..WG..DLX;LS110,MS112..WG197909-198108

FB,BLUE,BLUE,TRIM8#

main71077-91725-05iMS111..WG..DLX;LS110,MS112..WG197909-198108

FB,GREIGE,BEIGE,TRIM4#

main71077-91727-04iLS110,MS112..WG;MS111..WG..LHD..4H;MS111..WG..(3FC,4F)197909-198108

PF,BLUE,BLUE,TRIM8#

main71077-91727-05iLS110,MS112..WG;MS111..WG..LHD..4H;MS111..WG..(3FC,4F)197909-198108

PF,GREIGE,BEIGE,TRIM4#

main71077-91727-15iLS110..WG198108-198112

PF,BEIGE,BEIGE,TRIM4#

main71077-91731-04iLS110,MS112..WG198108-198307

FB,BLUE,BLUE,TRIM8#

main71077-91731-05iLS110,MS112..WG198108-198307

FB,BEIGE,BEIGE,TRIM4#

main71077-91734-15iLS110..WG198112-198307

PF,BEIGE,BEIGE,TRIM4#

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71460-30690-03iLS110,RS110..SED..BTP198108-198203

PF,GRAY,GRAY,TRIM1#

main71460-30690-04iLS110,MS11#,RS110..SED..(3FC,4F,4FC)..DLX..GEN; LS110,MS11#,RS110..SED..BTP197909-198108

PF,BLUE,BLUE,TRIM8#

main71460-30690-05iLS110,MS11#,RS110..SED..(3FC,4F,4FC)..DLX..GEN; LS110,MS11#,RS110..SED..BTP197909-198108

PF,GREIGE,BEIGE,TRIM4#

main71460-30690-15iLS110,RS110..SED..BTP198108-198112

PF,BEIGE,BEIGE,TRIM4#

main71460-30691-03iLS110,RS110..SED..BTP198203-198307

PF,GRAY,GRAY,TRIM1#

main71460-30691-15iLS110,RS110..SED..BTP198112-198307

PF,BEIGE,BEIGE,TRIM4#

main71460-30700-04iLS110,MS11#,RS110..SED..DLX; LS110,RS110..SED..(4F,5F)..BTP197909-198108

FB,BLUE,BLUE,TRIM8#

main71460-30700-05iLS110,MS11#,RS110..SED..DLX; LS110,RS110..SED..(4F,5F)..BTP197909-198108

FB,GREIGE,BEIGE,TRIM4#

main71460-30701-03iLS110,MS112,RS110..SED..(BTP,DLX)198108-198307

FB,GRAY,GRAY,TRIM1#

main71460-30701-05iLS110,MS112,RS110..SED..(BTP,DLX)198108-198307

FB,BEIGE,BEIGE,TRIM4#

main71460-30730-02iMS11#,RS110..SAL197909-198108

FB,DARK WINE,RED/MAROON,TRIM3#

main71460-30730-04iMS11#,RS110..SAL197909-198108

FB,BLUE,BLUE,TRIM8#

main71460-30730-05iMS11#,RS110..SAL197909-198108

FB,GREIGE,BEIGE,TRIM4#

main71460-30731-03iMS112,RS110..SAL198108-198307

FB,GRAY,GRAY,TRIM1#

main71460-30731-04iMS112,RS110..SAL198108-198307

FB,BLUE,BLUE,TRIM8#

main71460-30731-05iMS112,RS110..SAL198108-198307

FB,BEIGE,BEIGE,TRIM4#

main71460-30740-02iMS11#..ROY..GEN197909-198108

FB,DARK WINE,RED/MAROON,TRIM3#

main71460-30740-04iMS11#..ROY..GEN197909-198108

FB,BLUE,BLUE,TRIM8#

main71460-30740-05iMS11#..ROY..GEN197909-198108

FB,GREIGE,BEIGE,TRIM4#

main71460-30741-03iMS112..ROY..GEN198108-198109

FB,GRAY,GRAY,TRIM1#

main71460-30741-04iMS112..ROY..GEN198108-198109

FB,BLUE,BLUE,TRIM8#

main71460-30741-05iMS112..ROY..GEN198108-198109

FB,BEIGE,BEIGE,TRIM4#

main71460-30742-03iMS112..ROY..GEN198109-198307

FB,GRAY,GRAY,TRIM1#

main71460-30742-04iMS112..ROY..GEN198109-198307

FB,BLUE,BLUE,TRIM8#

main71460-30742-05iMS112..ROY..GEN198109-198307

FB,BEIGE,BEIGE,TRIM4#

main71460-30880-03iMS112..ARL198108-198307

FB,GRAY,GRAY,TRIM1#

main71460-30880-04iMS112..ARL198108-198307

FB,BLUE,BLUE,TRIM8#

main71460-30880-05iMS112..ARL198108-198307

FB,BEIGE,BEIGE,TRIM4#

main71460-91723-04iMS111..WG..RHD;MS111..WG..BTP;LS110,MS112..WG;MS111..WG..LHD..(3FC,4F)197909-198108

FB,BLUE,BLUE,TRIM8#

main71460-91723-05iMS111..WG..RHD;MS111..WG..BTP;LS110,MS112..WG;MS111..WG..LHD..(3FC,4F)197909-198108

FB,GREIGE,BEIGE,TRIM4#

main71460-91724-04iLS110,MS112..WG;MS111..WG..LHD..4H;MS111..WG..(3FC,4F)197909-198108

PF,BLUE,BLUE,TRIM8#

main71460-91724-05iLS110,MS112..WG;MS111..WG..LHD..4H;MS111..WG..(3FC,4F)197909-198108

PF,GREIGE,BEIGE,TRIM4#

main71460-91724-15iLS110..WG198108-198112

PF,BEIGE,BEIGE,TRIM4#

main71460-91730-04iLS110,MS112..WG198108-198307

FB,BLUE,BLUE,TRIM8#

main71460-91730-05iLS110,MS112..WG198108-198307

FB,BEIGE,BEIGE,TRIM4#

main71460-91732-15iLS110..WG198112-198307

PF,BEIGE,BEIGE,TRIM4#

71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)

main71480-30740-04iLS110,MS111,RS110..SED..(3FC,4F)..DLX; LS110,MS111,RS110..SED..BTP198002-198004

PF,BLUE,BLUE,TRIM8#

main71480-30740-05iLS110,MS111,RS110..SED..(3FC,4F)..DLX; LS110,MS111,RS110..SED..BTP198002-198004

PF,GREIGE,BEIGE,TRIM4#

main71480-30750-04iLS110,MS111,RS110..SED..(3FC,4F)..DLX; LS110,MS111,RS110..SED..BTP..GEN197909-198002

PF,BLUE,BLUE,TRIM8#

main71480-30750-05iLS110,MS111,RS110..SED..(3FC,4F)..DLX; LS110,MS111,RS110..SED..BTP..GEN197909-198002

PF,GREIGE,BEIGE,TRIM4#

main71480-30760-04iLS110,MS11#,RS110..SED..DLX; LS110,RS110..SED..(4F,5F)..BTP197909-198108

FB,BLUE,BLUE,TRIM8#

main71480-30760-05iLS110,MS11#,RS110..SED..DLX; LS110,RS110..SED..(4F,5F)..BTP197909-198108

FB,GREIGE,BEIGE,TRIM4#

main71480-30781-03iLS110,MS112,RS110..SED..(BTP,DLX)198108-198307

FB,GRAY,GRAY,TRIM1#

main71480-30781-05iLS110,MS112,RS110..SED..(BTP,DLX)198108-198307

FB,BEIGE,BEIGE,TRIM4#

main71480-30790-02iMS11#..SAL..(ARL,GEN)197909-198108

FB,DARK WINE,RED/MAROON,TRIM3#

main71480-30790-04iMS112..ARL198008-198108

FB,BLUE,BLUE,TRIM8#

main71480-30790-05iMS112..ARL198008-198108

FB,GREIGE,BEIGE,TRIM4#

main71480-30791-03iMS112,RS110..SAL..GEN198108-198307

FB,GRAY,GRAY,TRIM1#

main71480-30791-04iMS112,RS110..SAL..GEN198108-198307

FB,BLUE,BLUE,TRIM8#

main71480-30791-05iMS112,RS110..SAL..GEN198108-198307

FB,BEIGE,BEIGE,TRIM4#

main71480-30800-02iMS11#..ROY..GEN197909-198108

FB,DARK WINE,RED/MAROON,TRIM3#

main71480-30800-04iMS11#..ROY..GEN197909-198108

FB,BLUE,BLUE,TRIM8#

main71480-30800-05iMS11#..ROY..GEN197909-198108

FB,GREIGE,BEIGE,TRIM4#

main71480-30801-03iMS112..ROY..GEN198108-198109

FB,GRAY,GRAY,TRIM1#

main71480-30801-04iMS112..ROY..GEN198108-198109

FB,BLUE,BLUE,TRIM8#

main71480-30801-05iMS112..ROY..GEN198108-198109

FB,BEIGE,BEIGE,TRIM4#

main71480-30802-03iMS112..ROY..GEN198109-198307

FB,GRAY,GRAY,TRIM1#

main71480-30802-04iMS112..ROY..GEN198109-198307

FB,BLUE,BLUE,TRIM8#

main71480-30802-05iMS112..ROY..GEN198109-198307

FB,BEIGE,BEIGE,TRIM4#

main71480-30880-02iMS112..SAL..EUR197909-198108

FB,DARK WINE,RED/MAROON,TRIM3#

main71480-30880-04iMS112..SAL..EUR197909-198108

FB,BLUE,BLUE,TRIM8#

main71480-30880-05iMS112..SAL..EUR197909-198108

FB,GREIGE,BEIGE,TRIM4#

main71480-30881-03iMS112..SAL..EUR198108-198307

FB,GRAY,GRAY,TRIM1#

main71480-30881-04iMS112..SAL..EUR198108-198307

FB,BLUE,BLUE,TRIM8#

main71480-30881-05iMS112..SAL..EUR198108-198307

FB,BEIGE,BEIGE,TRIM4#

main71480-30890-03iLS110,RS110..SED..BTP198108-198203

PF,GRAY,GRAY,TRIM1#

main71480-30890-04iLS110,MS11#,RS110..SED..(3FC,4F,4FC)..DLX..GEN; LS110,MS11#,RS110..SED..BTP198004-198108

PF,BLUE,BLUE,TRIM8#

main71480-30890-05iLS110,MS11#,RS110..SED..(3FC,4F,4FC)..DLX..GEN; LS110,MS11#,RS110..SED..BTP198004-198108

PF,GREIGE,BEIGE,TRIM4#

main71480-30890-15iLS110,RS110..SED..BTP198108-198112

PF,BEIGE,BEIGE,TRIM4#

main71480-30891-03iLS110,RS110..SED..BTP198203-198307

PF,GRAY,GRAY,TRIM1#

main71480-30891-15iLS110,RS110..SED..BTP198112-198307

PF,BEIGE,BEIGE,TRIM4#

main71480-3A060-03iMS112..ARL198108-198307

FB,GRAY,GRAY,TRIM1#

main71480-3A060-04iMS112..ARL198108-198307

FB,BLUE,BLUE,TRIM8#

main71480-3A060-05iMS112..ARL198108-198307

FB,BEIGE,BEIGE,TRIM4#

main71480-91746-04iMS11#..WG..DLX197909-198108

FB,BLUE,BLUE,TRIM8#

main71480-91746-05iLS110..WG..EUR; MS11#..WG..DLX197909-198108

FB,GREIGE,BEIGE,TRIM4#

main71480-91748-05iLS110,MS11#..WG..BTP197909-198108

PF,GREIGE,BEIGE,TRIM4#

main71480-91749-04iMS11#..WG..(3FC,4F,4FC)197909-198108

PF,BLUE,BLUE,TRIM8#

main71480-91749-05iLS110..WG..EUR; MS11#..WG..(3FC,4F,4FC)197909-198108

PF,GREIGE,BEIGE,TRIM4#

main71480-91750-05iLS110..WG197909-198108

FB,GREIGE,BEIGE,TRIM4#

main71480-91762-15iLS110..WG198108-198112

PF,W/MAT,BEIGE,BEIGE,TRIM4#

main71480-91763-05iLS110..WG198108-198307

FB,BEIGE,BEIGE,TRIM4#

main71480-91764-04iMS112..WG198108-198307

FB,BLUE,BLUE,TRIM8#

main71480-91764-05iMS112..WG198108-198307

FB,BEIGE,BEIGE,TRIM4#

main71480-91766-15iLS110..WG198108-198112

PF,W/CARPET,BEIGE,BEIGE,TRIM4#

main71480-91771-15iLS110..WG198112-198307

PF,W/MAT,BEIGE,BEIGE,TRIM4#

main71480-91772-15iLS110..WG198112-198307

PF,W/CARPET,BEIGE,BEIGE,TRIM4#

71611PAD, REAR SEAT CUSHION

main71503-91701iLS110,MS11#..WG197909-198307

main71611-30390iLS110,MS11#,RS110..SED..(BTP,DLX)197909-198307

main71611-30400iMS11#,RS110..SAL197909-198108

main71611-30401iMS112,RS110..SAL198108-198307

main71611-30410iMS11#..ROY..GEN197909-198108

main71611-30411iMS112..ROY..GEN198108-198307

71650SPRING ASSY, REAR SEAT CUSHION

main71650-30200iLS110,MS11#,RS110..SED..(BTP,DLX)197909-198307

main71650-30210iMS11#,RS110..SAL197909-198307

main71650-30220iMS11#..ROY..GEN197909-198108

main71650-30221iMS112..ROY..GEN198108-198109

main71650-30222iMS112..ROY..GEN198109-198307

main71650-91704iLS110,MS11#..WG197909-198307

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71507-30010iLS110,MS11#,RS110..SED..(3FC,4F,4FC)..DLX..GEN197909-198108

W/PF SEAT

main71507-30020iLS110,MS112,RS110..SED..DLX; LS110,RS110..SED..(4F,5F)..BTP198012-198307

W/FB SEAT

main71651-30410iLS110,MS11#,RS110..SED..DLX; LS110,RS110..SED..(4F,5F)..BTP197909-198012

W/FB SEAT

main71651-30420iMS11#,RS110..SAL197909-198307

main71651-30430iMS11#..ROY..GEN197909-198108

main71651-30431iMS112..ROY..GEN198108-198307

main71651-91703iLS110..WG198108-198307

W/PF SEAT

main71651-91704iMS111..WG..DLX;LS110,MS112..WG197909-198108

W/FB SEAT

71670SPRING ASSY, REAR SEATBACK(FOR BENCH SEAT)

main71670-30240iLS110,MS11#,RS110..SED..DLX; LS110,RS110..SED..(4F,5F)..BTP197909-198307

W/FB SEAT

main71670-30250iMS11#,RS110..SAL197909-198307

main71670-30260iMS11#..ROY..GEN197909-198108

UPR

main71670-30261iMS112..ROY..GEN198108-198307

UPR

main71670-30300iLS110,MS11#,RS110..SED..BTP197909-198307

W/PF SEAT

main71670-91710iMS111..WG..DLX;LS110,MS112..WG197909-198108

W/FB SEAT

main71670-91711iLS110..WG198108-198307

W/PF SEAT

main71680-30020iMS11#..ROY..GEN197909-198108

LWR

main71680-30021iMS112..ROY..GEN198108-198109

LWR

main71680-30022iMS112..ROY..GEN198109-198307

LWR

71812BCLIP(FOR REAR SEAT CUSHION COVER)

main90468-18071iLS110,MS11#,RS110197909-198307

71953PAD, REAR SEAT HEADREST

main71953-30060×2iLS110,MS11#,RS110..SED..(BTP,DLX)197909-198307

main71953-91701×2iMS111..WG..DLX;LS110,MS112..WG197909-198108

W/FB SEAT

72693HOOK, REAR SEAT CUSHION LOCK

main72693-30010×2iLS110,MS11#,RS110..SED..(BTP,DLX,SAL)197909-198008

main72693-30011×2iLS110,MS112,RS110..SED..(BTP,DLX,SAL)198008-198307

9011908164

main90119-08164

12 parts on this diagram · 12 diagrams in section
