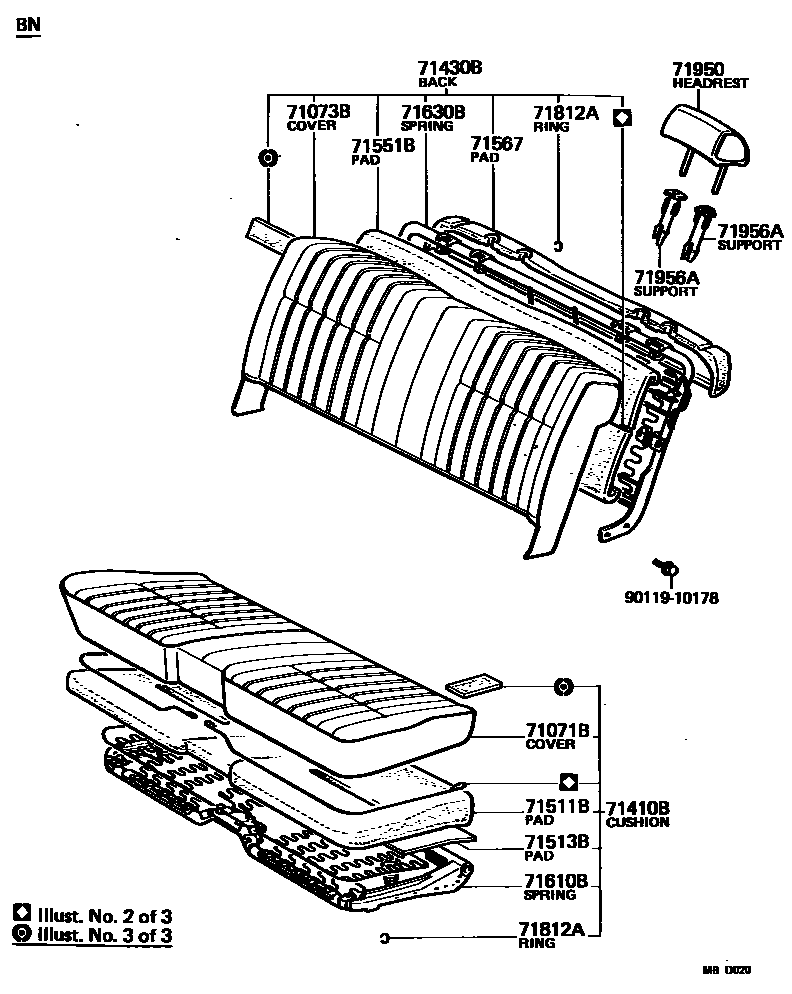

FRONT SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

71071BCOVER, FRONT SEAT CUSHION(FOR BENCH TYPE)

main71071-30770-03iLS110,RS110..4H198108-198203

PF,GRAY,GRAY,TRIM1#

main71071-30770-04iLS110,MS11#,RS110..4H..BTP197909-198108

PF,BLUE,BLUE,TRIM8#

main71071-30770-05iLS110,MS11#,RS110..4H..BTP197909-198108

PF,GREIGE,BEIGE,TRIM4#

main71071-30770-15iLS110,RS110..4H198108-198112

PF,BEIGE,BEIGE,TRIM4#

main71071-30771-03iLS110,RS110..4H198203-198307

PF,GRAY,GRAY,TRIM1#

main71071-30771-15iLS110,RS110..4H198112-198307

PF,BEIGE,BEIGE,TRIM4#

71073BCOVER, FRONT SEATBACK(FOR BENCH TYPE)

main71073-30680-03iLS110,RS110..4H198108-198203

PF,GRAY,GRAY,TRIM1#

main71073-30680-04iLS110,MS11#,RS110..4H..BTP197909-198108

PF,BLUE,BLUE,TRIM8#

main71073-30680-05iLS110,MS11#,RS110..4H..BTP197909-198108

PF,GREIGE,BEIGE,TRIM4#

main71073-30680-15iLS110,RS110..4H198108-198112

PF,BEIGE,BEIGE,TRIM4#

main71073-30681-03iLS110,RS110..4H198203-198307

PF,GRAY,GRAY,TRIM1#

main71073-30681-15iLS110,RS110..4H198112-198307

PF,BEIGE,BEIGE,TRIM4#

71410BCUSHION ASSY, FRONT SEAT(FOR BENCH TYPE)

main71410-3A020-03iLS110,RS110..4H198108-198203

PF,GRAY,GRAY,TRIM1#

main71410-3A020-04iLS110,MS11#,RS110..4H..BTP197909-198108

PF,BLUE,BLUE,TRIM8#

main71410-3A020-05iLS110,MS11#,RS110..4H..BTP197909-198108

PF,GREIGE,BEIGE,TRIM4#

main71410-3A020-15iLS110,RS110..4H198108-198112

PF,BEIGE,BEIGE,TRIM4#

main71410-3A021-03iLS110,RS110..4H198203-198307

PF,GRAY,GRAY,TRIM1#

main71410-3A021-15iLS110,RS110..4H198112-198307

PF,BEIGE,BEIGE,TRIM4#

71430BBACK ASSY, FRONT SEAT(FOR BENCH TYPE)

main71430-3A210-03iLS110,RS110..4H198108-198203

PF,GRAY,GRAY,TRIM1#

main71430-3A210-04iLS110,MS11#,RS110..4H..BTP197909-198108

PF,BLUE,BLUE,TRIM8#

main71430-3A210-05iLS110,MS11#,RS110..4H..BTP197909-198108

PF,GREIGE,BEIGE,TRIM4#

main71430-3A210-15iLS110,RS110..4H198108-198112

PF,BEIGE,BEIGE,TRIM4#

main71430-3A211-03iLS110,RS110..4H198203-198307

PF,GRAY,GRAY,TRIM1#

main71430-3A211-15iLS110,RS110..4H198112-198307

PF,BEIGE,BEIGE,TRIM4#

71511BPAD, FRONT SEAT CUSHION(FOR BENCH TYPE)

main71511-30470iLS110,MS11#,RS110..4H..BTP197909-198307

71513BPAD, FRONT SEAT CUSHION, B

main71513-30330×2iLS110,MS112,RS110..(4H,4HC)..(BTP,DLX)198101-198307

BN,SP-BN

71551BPAD, FRONT SEATBACK(FOR BENCH TYPE)

main71505-30030iLS110,MS11#,RS110..4H..BTP197909-198307

71567PAD, FRONT SEATBACK SAFETY

main71567-30020iLS110,MS11#,RS110..SED..4H..BTP197909-198307

BN

main71567-30030iMS11#..LHD..(3HC,4H,4HC)..DLX; MS11#..RHD..(3HC,4H,4HC)..DLX197909-198307

LH,SP-BN; RH,SP-BN

main71567-30040×2iLS110,MS11#,RS110..3FC,4F,4FC,5F; MS11#..(3HC,4H,4HC)..(ROY,SAL)197909-198108

SM-SP; SP

main71567-30050×2iMS112..(4FC,5F)..(ROY,SAL); MS112..4HC198108-198307

SM-SP; SP

71610BSPRING ASSY, FRONT SEAT CUSHION(FOR BENCH TYPE)

main71610-30240iLS110,MS11#,RS110..4H..BTP197909-198307

71630BSPRING ASSY, FRONT SEATBACK(FOR BENCH TYPE)

main71630-30310iLS110,MS11#,RS110..4H..BTP197909-198307

71812ARING, HOG, SMALL (FOR FRONT SEAT)

main90468-18071iLS110,MS11#,RS110197909-198307

71950HEADREST ASSY, FRONT SEAT

main71910-30220-02iMS111..ARL197909-198008

DARK WINE,RED/MAROON,TRIM3#

main71910-30220-03iLS110,MS112,RS110..(BTP,DLX)..GEN198108-198307

GRAY,GRAY,TRIM1#

main71910-30220-04×2iLS110,MS11#..WG; LS110,MS111,RS110..SED..(BTP,DLX)..GEN197909-198108

BLUE,BLUE,TRIM8#

main71910-30220-05×2iLS110,MS11#..WG; LS110,MS111,RS110..SED..(BTP,DLX)..GEN197909-198108

GREIGE,BEIGE,TRIM4#

main71910-30220-15×2iLS110,MS112,RS110..(BTP,DLX)..GEN198108-198203

BEIGE,BEIGE,TRIM4#

main71910-30220-25×2iLS110,MS112,RS110..(BTP,DLX)..GEN198203-198307

BEIGE,BEIGE,TRIM4#

main71910-30230-02×2iMS11#..SAL..GEN197909-198008

DARK WINE,RED/MAROON,TRIM3#

main71910-30230-04×2iMS11#..SAL..GEN197909-198008

BLUE,BLUE,TRIM8#

main71910-30230-05×2iMS11#..SAL..GEN197909-198008

GREIGE,BEIGE,TRIM4#

main71910-30240-02×2iMS11#..ROY197909-198008

DARK WINE,RED/MAROON,TRIM3#

main71910-30240-04×2iMS11#..ROY197909-198008

BLUE,BLUE,TRIM8#

main71910-30240-05×2iMS11#..ROY197909-198008

GREIGE,BEIGE,TRIM4#

main71910-30280-03iLS110..BTP..EUR198108-198307

W/O ADJUSTER,GRAY,GRAY,TRIM1#

main71910-30280-04×2iLS110,MS112,RS110..SED..(BTP,DLX)..EUR197909-198108

BLUE,BLUE,TRIM8#

main71910-30280-05×2iLS110,MS112,RS110..SED..(BTP,DLX)..EUR197909-198108

GREIGE,BEIGE,TRIM4#

main71910-30280-15iLS110..BTP..EUR198108-198203

W/O ADJUSTER,BEIGE,BEIGE,TRIM4#

main71910-30280-25iLS110..BTP..EUR198203-198307

W/O ADJUSTER,BEIGE,BEIGE,TRIM4#

main71910-30290-02iMS112..SAL..EUR197909-198108

RH,DARK WINE,RED/MAROON,TRIM3#

main71910-30290-04iMS112..SAL..EUR197909-198108

RH,BLUE,BLUE,TRIM8#

main71910-30290-05iMS112..SAL..EUR197909-198108

RH,GREIGE,BEIGE,TRIM4#

main71910-30291-03iMS112..SAL..EUR198108-198307

RH,GRAY,GRAY,TRIM1#

main71910-30291-04iMS112..SAL..EUR198108-198307

RH,BLUE,BLUE,TRIM8#

main71910-30291-05iMS112..SAL..EUR198108-198307

RH,BEIGE,BEIGE,TRIM4#

main71910-30310-02iMS112,RS110..SAL..GEN198008-198108

RH,DARK WINE,RED/MAROON,TRIM3#

main71910-30310-04iMS112,RS110..SAL..GEN198008-198108

RH,BLUE,BLUE,TRIM8#

main71910-30310-05iMS112,RS110..SAL..GEN198008-198108

RH,GREIGE,BEIGE,TRIM4#

main71910-30311-03iMS112,RS110..SAL..GEN198108-198307

RH,GRAY,GRAY,TRIM1#

main71910-30311-04iMS112,RS110..SAL..GEN198108-198307

RH,BLUE,BLUE,TRIM8#

main71910-30311-05iMS112,RS110..SAL..GEN198108-198307

RH,BEIGE,BEIGE,TRIM4#

main71910-30320-02iMS112..ROY..GEN198008-198108

RH,DARK WINE,RED/MAROON,TRIM3#

main71910-30320-04iMS112..ROY..GEN198008-198108

RH,BLUE,BLUE,TRIM8#

main71910-30320-05iMS112..ROY..GEN198008-198108

RH,GREIGE,BEIGE,TRIM4#

main71910-30321-03iMS112..ROY..GEN198108-198307

RH,GRAY,GRAY,TRIM1#

main71910-30321-04iMS112..ROY..GEN198108-198307

RH,BLUE,BLUE,TRIM8#

main71910-30321-05iMS112..ROY..GEN198108-198307

RH,BEIGE,BEIGE,TRIM4#

main71910-30330-02iMS112..ARL198008-198108

RH,DARK WINE,RED/MAROON,TRIM3#

main71910-30330-04iMS112..ARL198008-198108

RH,BLUE,BLUE,TRIM8#

main71910-30330-05iMS112..ARL198008-198108

RH,GREIGE,BEIGE,TRIM4#

main71910-30331-03iMS112..ARL198108-198307

RH,GRAY,GRAY,TRIM1#

main71910-30331-04iMS112..ARL198108-198307

RH,BLUE,BLUE,TRIM8#

main71910-30331-05iMS112..ARL198108-198307

RH,BEIGE,BEIGE,TRIM4#

main71910-30340-03iLS110,MS112..(BTP,DLX)..EUR198108-198307

RH,W/ADJUSTER,GRAY,GRAY,TRIM1#

main71910-30340-04iLS110,MS112..(BTP,DLX)..EUR198108-198307

RH,W/ADJUSTER,BLUE,BLUE,TRIM8#

main71910-30340-15iLS110,MS112..(BTP,DLX)..EUR198108-198307

RH,W/ADJUSTER,BEIGE,BEIGE,TRIM4#

main71920-30060-02iMS112..SAL..EUR197909-198108

LH,DARK WINE,RED/MAROON,TRIM3#

main71920-30060-04iMS112..SAL..EUR197909-198108

LH,BLUE,BLUE,TRIM8#

main71920-30060-05iMS112..SAL..EUR197909-198108

LH,GREIGE,BEIGE,TRIM4#

main71920-30061-03iMS112..SAL..EUR198108-198307

LH,GRAY,GRAY,TRIM1#

main71920-30061-04iMS112..SAL..EUR198108-198307

LH,BLUE,BLUE,TRIM8#

main71920-30061-05iMS112..SAL..EUR198108-198307

LH,BEIGE,BEIGE,TRIM4#

main71920-30080-02iMS112,RS110..SAL..GEN198008-198108

LH,DARK WINE,RED/MAROON,TRIM3#

main71920-30080-04iMS112,RS110..SAL..GEN198008-198108

LH,BLUE,BLUE,TRIM8#

main71920-30080-05iMS112,RS110..SAL..GEN198008-198108

LH,GREIGE,BEIGE,TRIM4#

main71920-30081-03iMS112,RS110..SAL..GEN198108-198307

LH,GRAY,GRAY,TRIM1#

main71920-30081-04iMS112,RS110..SAL..GEN198108-198307

LH,BLUE,BLUE,TRIM8#

main71920-30081-05iMS112,RS110..SAL..GEN198108-198307

LH,BEIGE,BEIGE,TRIM4#

main71920-30090-02iMS112..ROY..GEN198008-198108

LH,DARK WINE,RED/MAROON,TRIM3#

main71920-30090-04iMS112..ROY..GEN198008-198108

LH,BLUE,BLUE,TRIM8#

main71920-30090-05iMS112..ROY..GEN198008-198108

LH,GREIGE,BEIGE,TRIM4#

main71920-30091-03iMS112..ROY..GEN198108-198307

LH,GRAY,GRAY,TRIM1#

main71920-30091-04iMS112..ROY..GEN198108-198307

LH,BLUE,BLUE,TRIM8#

main71920-30091-05iMS112..ROY..GEN198108-198307

LH,BEIGE,BEIGE,TRIM4#

main71920-30100-02iMS112..ARL198008-198108

LH,DARK WINE,RED/MAROON,TRIM3#

main71920-30100-04iMS112..ARL198008-198108

LH,BLUE,BLUE,TRIM8#

main71920-30100-05iMS112..ARL198008-198108

LH,GREIGE,BEIGE,TRIM4#

main71920-30101-03iMS112..ARL198108-198307

LH,GRAY,GRAY,TRIM1#

main71920-30101-04iMS112..ARL198108-198307

LH,BLUE,BLUE,TRIM8#

main71920-30101-05iMS112..ARL198108-198307

LH,BEIGE,BEIGE,TRIM4#

main71920-30110-03iLS110,MS112..(BTP,DLX)..EUR198108-198307

LH,W/ADJUSTER,GRAY,GRAY,TRIM1#

main71920-30110-04iLS110,MS112..(BTP,DLX)..EUR198108-198307

LH,W/ADJUSTER,BLUE,BLUE,TRIM8#

main71920-30110-15iLS110,MS112..(BTP,DLX)..EUR198108-198307

LH,W/ADJUSTER,BEIGE,BEIGE,TRIM4#

71956ASUPPORT, FRONT SEAT HEADREST

main71930-10060-02×2iLS110,MS11#,RS110197909-198108

W(LOCK),W/LOCK,DARK WINE,DARK WINE,TRIM3#

main71930-10060-04×2iLS110,MS112,RS110198108-198307

W(LOCK),W/LOCK,BLUE,BLUE,TRIM8#

main71930-10060-13×2iLS110,MS112,RS110198108-198307

W(LOCK),W/LOCK,GRAY,LIGHT GRAY,TRIM1#

main71930-10060-15×2iLS110,MS11#,RS110197909-198108

W(LOCK),W/LOCK,GREIGE,BEIGE,TRIM4#

main71930-10060-25×2iLS110,MS112,RS110198108-198307

W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4#

main71931-10010-02×2iLS110,MS11#,RS110197909-198108

W/O(LOCK),W/O LOCK,DARK WINE,DARK WINE,TRIM3#

main71931-10010-04×2iLS110,MS11#,RS110197909-198108

W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8#

main71931-10010-13×2iLS110,MS112,RS110198108-198307

W/O(LOCK),W/O LOCK,GRAY,LIGHT GRAY,TRIM1#

main71931-10010-15×2iLS110,MS11#,RS110197909-198108

W/O(LOCK),W/O LOCK,GREIGE,BEIGE,TRIM4#

main71931-10010-25×2iLS110,MS112,RS110198108-198307

W/O(LOCK),W/O LOCK,BEIGE,BEIGE,TRIM4#

9011910178

main90119-10178

14 parts on this diagram · 11 diagrams in section
