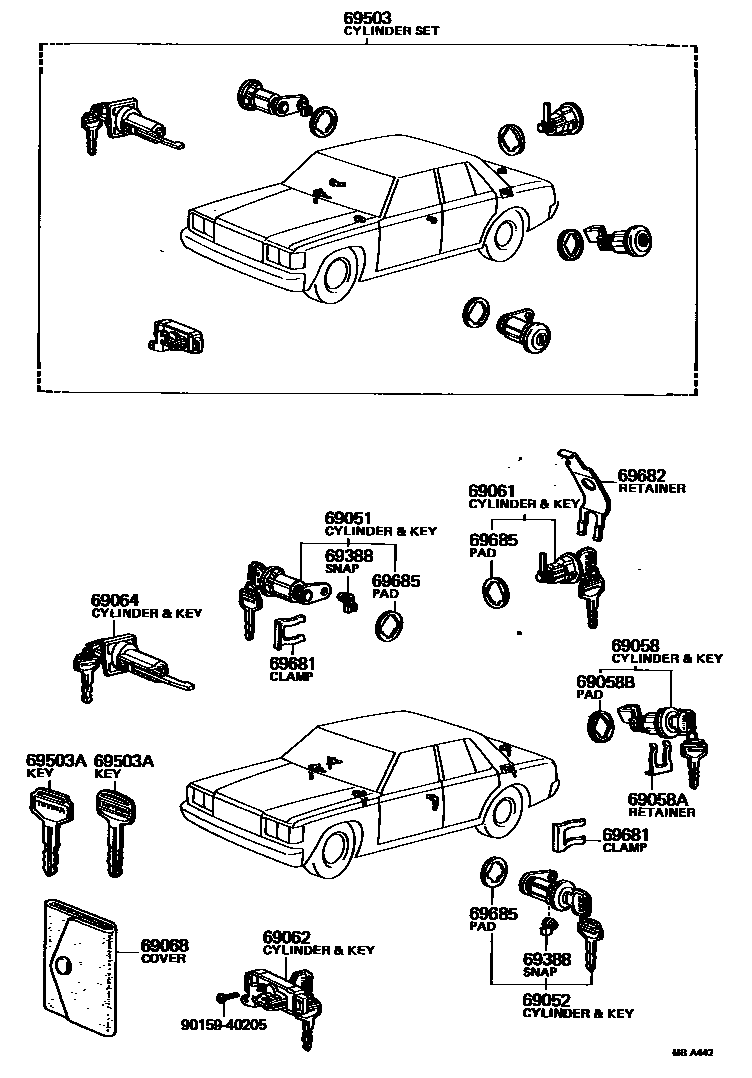

LOCK CYLINDER SET

0001 1 0002 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-39035iLS110,MS11#,RS110197909-198003

sub69051-39036

main69051-39036iLS110,MS112,RS110..LHD..GEN198003-198307

sub69051-29306

main69051-39055iMS112..RHD..(ROY,SAL)198108-198307

main69051-39115iMS112..RHD..EUR198208-198307

main69051-39125iLS110,MS112..SED..LHD..EUR198208-198307

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-39035iLS110,MS11#,RS110197909-198003

sub69052-39036

main69052-39036iLS110,MS112..RHD..(ARL,GEN)198003-198307

sub69052-29306

main69052-39055iMS112,RS110..LHD..(ROY,SAL)..CBR198108-198307

main69052-39095iMS112..RHD..EUR198208-198307

main69052-39105iMS112..LHD..SAL..EFI198208-198307

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-39025iLS110,MS11#,RS110197909-198307

main69058-39055iLS110,MS112..EUR198208-198307

69058ARETAINER, FUEL FILLER LID CYLINDER

main69581-14010iLS110,MS11#,RS110197909-198307

69058BPAD, FUEL FILLER LID CYLINDER

main69513-14010iLS110,MS11#,RS110197909-198307

69061CYLINDER & KEY SET, LUGGAGE LOCK

main69055-39015iLS110,MS112,RS110..SED..(ARL,GEN)197909-198307

main69055-39095iLS110,MS112..SED..EUR198208-198307

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69009-91701iLS110,MS11#..WG197909-198108

RR

main69009-91702iMS112..WG..CBR198108-198307

RR

main69009-91703iLS110,MS112..WG..EUR198108-198307

RR

main69056-30020-02iLS110,MS11#,RS110197909-198108

DARK WINE,RED/MAROON,TRIM3#

sub69056-30020

main69056-30020-03iLS110,MS112,RS110..ARL,GEN198108-198307

GRAY,GRAY,TRIM1#

sub69056-30020

main69056-30020-04iLS110,MS112,RS110197909-198307

BLUE,BLUE,TRIM8#

sub69056-30020

main69056-30020-05iLS110,MS11#,RS110197909-198108

GREIGE,BEIGE,TRIM4#

sub69056-30020

main69056-30020-15iLS110,MS112,RS110..ARL,GEN198108-198307

BEIGE,BEIGE,TRIM4#

sub69056-30020

main69056-30040-03iLS110,MS112..EUR198208-198307

GRAY,GRAY,TRIM1#

main69056-30040-04iLS110,MS112..EUR198208-198307

BLUE,BLUE,TRIM8#

main69056-30040-15iLS110,MS112..EUR198208-198307

BEIGE,BEIGE,TRIM4#

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-30020iLS110,MS11#,RS110197909-198307

main69057-30030iLS110,MS112..EUR198208-198307

sub69057-14070

69068COVER SUB-ASSY, KEY

main69555-20010iLS110,MS11#,RS110197909-198307

69388SNAP, ROD(FOR DOOR LOCK)

main69377-30020iLS110,MS11#,RS110197909-198108

main69759-24080iLS110,MS112,RS110198108-198307

RH

main69759-24090iLS110,MS112,RS110198108-198307

LH

69503CYLINDER SET, LOCK

main69005-30150-02iLS110,MS11#,RS110..SED197909-198108

DARK WINE,RED/MAROON,TRIM3#

sub69005-30150

main69005-30150-03iLS110,MS112,RS110..SED..(BTP,DLX)..GEN198108-198307

GRAY,GRAY,TRIM1#

sub69005-30150

main69005-30150-04iLS110,MS11#,RS110..SED197909-198108

BLUE,BLUE,TRIM8#

sub69005-30150

main69005-30150-05iLS110,MS11#,RS110..SED197909-198108

GREIGE,BEIGE,TRIM4#

sub69005-30150

main69005-30150-15iLS110,MS112,RS110..SED..(BTP,DLX)..GEN198108-198307

BEIGE,BEIGE,TRIM4#

sub69005-30150

main69005-30220-03iMS112..RHD..(ROY,SAL)..(ARL,GEN)198108-198307

GRAY,GRAY,TRIM1#

main69005-30220-04iMS112..RHD..(ROY,SAL)198108-198307

BLUE,BLUE,TRIM8#

main69005-30220-15iMS112..RHD..(ROY,SAL)..(ARL,GEN)198108-198307

BEIGE,BEIGE,TRIM4#

main69005-30230-03iMS112,RS110..LHD..(ROY,SAL)198108-198307

GRAY,GRAY,TRIM1#

main69005-30230-04iMS112,RS110..LHD..(ROY,SAL)..CBR198108-198307

BLUE,BLUE,TRIM8#

main69005-30230-15iMS112,RS110..LHD..(ROY,SAL)..CBR198108-198307

BEIGE,BEIGE,TRIM4#

main69005-30290-03iMS112..RHD..EUR198208-198307

GRAY,GRAY,TRIM1#

main69005-30290-04iMS112..RHD..EUR198208-198307

BLUE,BLUE,TRIM8#

main69005-30290-15iMS112..RHD..EUR198208-198307

BEIGE,BEIGE,TRIM4#

main69005-30300-03iMS112..LHD..SAL..EFI198208-198307

GRAY,GRAY,TRIM1#

main69005-30300-04iMS112..LHD..SAL..EFI198208-198307

BLUE,BLUE,TRIM8#

main69005-30300-15iMS112..LHD..SAL..EFI198208-198307

BEIGE,BEIGE,TRIM4#

main69005-30310-03iLS110,MS112..SED..(BTP,DLX)..EUR198208-198307

GRAY,GRAY,TRIM1#

main69005-30310-15iLS110,MS112..SED..(BTP,DLX)..EUR198208-198307

BEIGE,BEIGE,TRIM4#

main69005-91702-04iLS110,MS11#..WG197909-198108

BLUE,BLUE,TRIM8#

main69005-91702-05iLS110,MS11#..WG197909-198108

GREIGE,BEIGE,TRIM4#

main69005-91703-04iLS110..WG..EUR197909-198108

W/3RD SEAT,BLUE,BLUE,TRIM8#

main69005-91703-05iLS110..WG..EUR197909-198108

W/3RD SEAT,GREIGE,BEIGE,TRIM4#

main69005-91706-04iLS110,MS112..WG198108-198307

BLUE,BLUE,TRIM8#

main69005-91706-15iMS112..WG..CBR198108-198307

BEIGE,BEIGE,TRIM4#

main69005-91707-04iLS110,MS112..WG..EUR198208-198307

BLUE,BLUE,TRIM8#

main69005-91707-15iLS110,MS112..WG..EUR198208-198307

BEIGE,BEIGE,TRIM4#

69503AKEY, BLANK

main90999-00077iLS110,MS11#,RS110197909-198307

MASTER KEY

main90999-00078iLS110,MS11#,RS110197909-198307

SUB KEY

69681CLAMP, DOOR LOCK CYLINDER & SLEEVE

main69681-20040iLS110,MS11#,RS110197909-198108

main69681-30050iLS110,MS112,RS110198108-198307

69682RETAINER, LOCK CYLINDER

main69561-30020iLS110,MS11#,RS110..SED197909-198307

LUGGAGE

main69681-20040iLS110,MS112..WG198108-198307

DECK

69685PAD, LOCK CYLINDER

main69513-12020iLS110,MS11#,RS110198003-198307

FR DOOR

main69513-14010iLS110,MS112..WG198108-198307

DECK

main69513-30010iMS112,RS110..ROY,SAL198108-198307

FR DOOR,W/LAMP

main69685-12010iLS110,MS11#,RS110197909-198003

main69685-12010iLS110,MS11#,RS110..SED198003-198307

LUGGAGE

9015940205

main90159-40205
