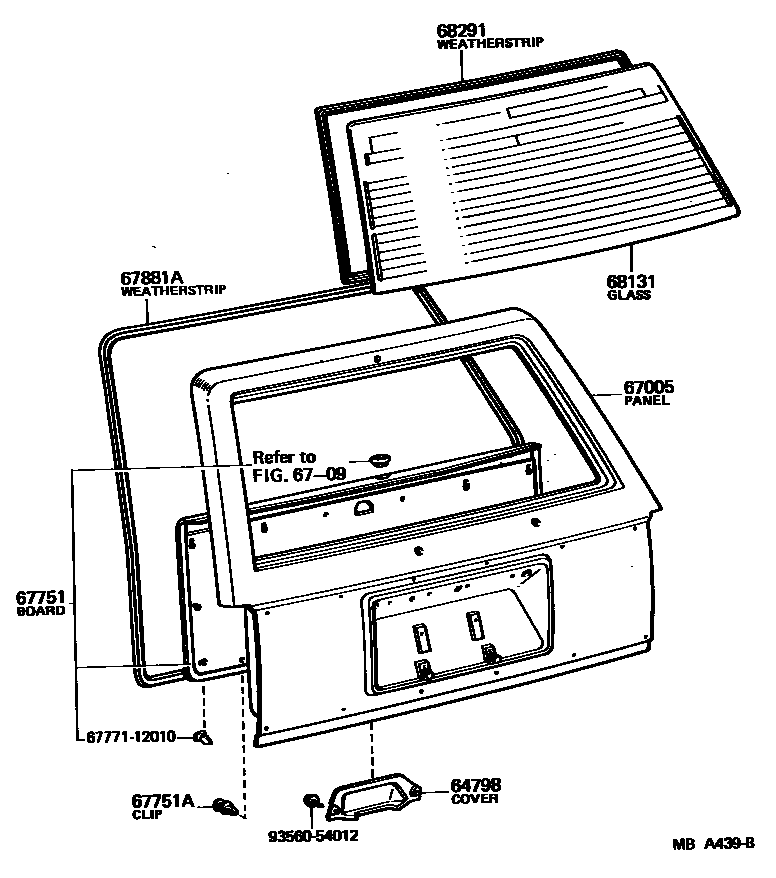

BACK DOOR PANEL & GLASS

64798COVER, BACK DOOR LOCK

main64798-91701-04iLS110,MS112..WG198108-198307

BLUE,BLUE,TRIM8#

main64798-91701-05iLS110,MS11#..WG197909-198108

GREIGE,BEIGE,TRIM4#

main64798-91701-15iLS110,MS112..WG198108-198307

BEIGE,BEIGE,TRIM4#

67005PANEL SUB-ASSY, BACK DOOR

main67005-91720iLS110,MS11#..WG..BTP197909-198108

main67005-91722iLS110,MS11#..WG..BTP197909-198111

W/RR WIPER

main67005-91726iMS112..WG..CBR198108-198111

main67005-91727iLS110..WG..EUR197909-198108

W/3RD SEAT,RR WIPER

main67005-91734iLS110..WG198111-198307

W/RR WIPER

main67005-91738iLS110..WG198111-198205

W/3RD SEAT

main67005-91739iLS110,MS112..WG; MS112..WG198111-198307

W/3RD SEAT,RR WIPER; W/RR WIPER

6709BACK DOOR LOCK & HANDLE

→ Go to FIG 67-09

67751BOARD, BACK DOOR TRIM

main64780-91706iLS110,MS11#..WG..BTP197909-198108

GREIGE

main64780-91706-15iLS110..WG198108-198111

BEIGE,BEIGE,TRIM4#

main64780-91707-04iLS110..WG..EUR; MS11#..WG..DLX197909-198108

W/3RD SEAT,BLUE,BLUE,TRIM8#

main64780-91707-05iLS110..WG..EUR; MS11#..WG..DLX197909-198108

W/3RD SEAT,GREIGE,BEIGE,TRIM4#

main64780-91707-14iLS110,MS112..WG198108-198111

W/3RD SEAT,BLUE,BLUE,TRIM8#

main64780-91707-15iLS110,MS112..WG198108-198111

W/3RD SEAT,BEIGE,BEIGE,TRIM4#

main64780-91708-04iMS11#..WG..DLX197909-198108

BLUE,BLUE,TRIM8#

main64780-91708-05iMS11#..WG..DLX197909-198108

GREIGE,BEIGE,TRIM4#

main64780-91708-14iMS112..WG198108-198111

BLUE,BLUE,TRIM8#

main64780-91708-15iMS112..WG198108-198111

BEIGE,BEIGE,TRIM4#

main64780-91712-15iLS110..WG198111-198307

BEIGE,BEIGE,TRIM4#

main64780-91713-14iLS110,MS112..WG198111-198307

W/3RD SEAT,BLUE,BLUE,TRIM8#

main64780-91713-15iLS110,MS112..WG198111-198307

W/3RD SEAT,BEIGE,BEIGE,TRIM4#

main64780-91714-14iMS112..WG198111-198307

BLUE,BLUE,TRIM8#

main64780-91714-15iMS112..WG198111-198307

BEIGE,BEIGE,TRIM4#

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-08114-24×4iLS110,MS11#..WG197909-197910

BLUE,BLUE,TRIM8#

main90467-08114-45×4iLS110,MS11#..WG197909-197910

GREIGE,BEIGE,TRIM4#

main90467-10005-04×4iLS110,MS11#..WG197910-198108

BLUE,BLUE,TRIM8#

main90467-10005-05×4iLS110,MS11#..WG197910-198108

GREIGE,BEIGE,TRIM4#

main90467-10005-25×6iLS110,MS112..WG198111-198307

BEIGE,BEIGE,TRIM4#

67881AWEATHERSTRIP, BACK DOOR

main67881-91702iLS110,MS11#..WG197909-198307

68131GLASS, BACK DOOR

main68105-91708iLS110,MS11#..WG197909-198307

*EHTT,T=4.0

main68105-91709iLS110,MS11#..WG..BTP197909-198108

*EHT,T=4.0

main68131-91708iLS110,MS11#..WG..GEN197909-198307

*TT,T=4.0

main68131-91709iLS110,MS111..WG..BTP..GEN197909-198108

*TEM,T=4.0

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-91702iLS110,MS11#..WG..BTP197909-198108

main68291-91703iLS110,MS11#..WG197909-198307

W/MOULDING

6777112010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12010

9356054012

main93560-54012

10 parts on this diagram · 1 diagram in section
