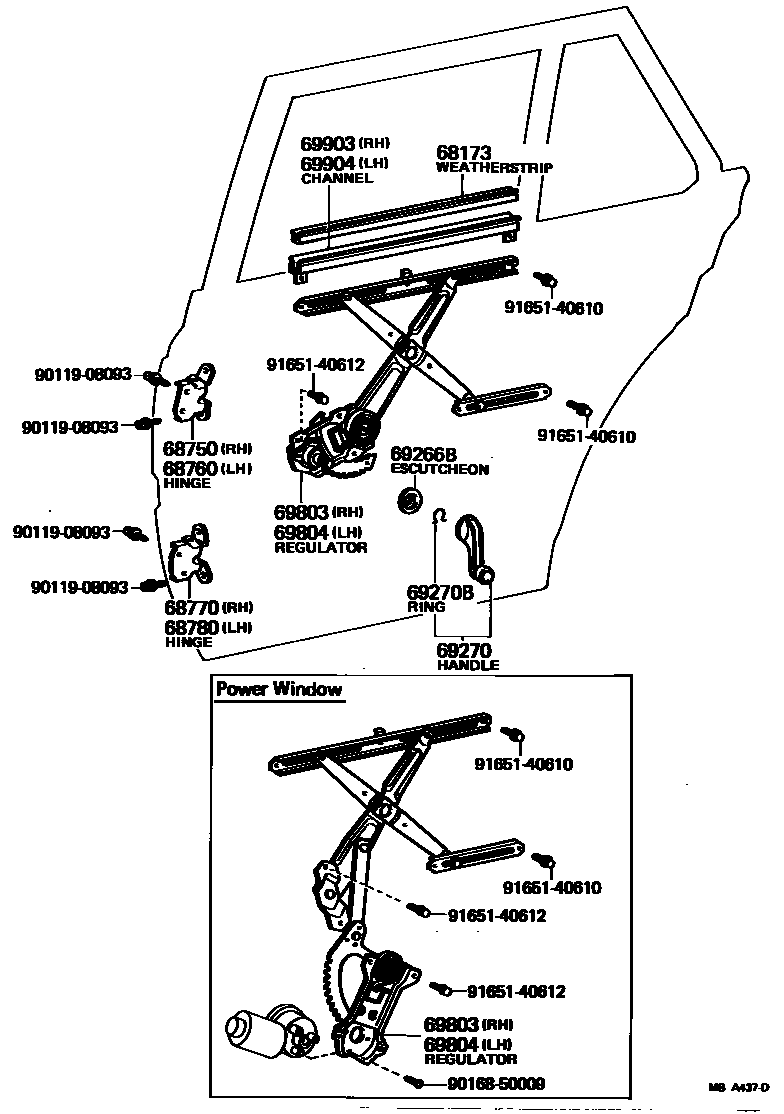

REAR DOOR WINDOW REGULATOR & HINGE

68173WEATHERSTRIP, REAR DOOR GLASS CHANNEL

main69975-20020×2iLS110,MS11#,RS110197909-198307

68750HINGE ASSY, REAR DOOR, UPPER RH

main68710-30070iLS110,MS11#,RS110197909-198307

68760HINGE ASSY, REAR DOOR, UPPER LH

main68720-30010iLS110,MS11#,RS110197909-198307

68770HINGE ASSY, REAR DOOR, LOWER RH

main68730-20070iLS110,MS11#,RS110197909-198307

68780HINGE ASSY, REAR DOOR, LOWER LH

main68740-20070iLS110,MS11#,RS110197909-198307

69266BESCUTCHEON, DOOR REGULATOR HANDLE(FOR REAR DOOR)

main69272-30010×2iLS110,MS11#,RS110..BTP,DLX197909-198307

69270HANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-22020-03×2iLS110,MS112,RS110..BTP,DLX198108-198307

GRAY,GRAY,TRIM1#

main69260-22020-04×2iLS110,MS112,RS110..BTP,DLX198108-198307

BLUE,BLUE,TRIM8#

main69260-22020-15×2iLS110,MS11#,RS110..BTP,DLX197909-198108

GREIGE,BEIGE,TRIM4#

main69260-22020-25×2iLS110,MS112,RS110..BTP,DLX198108-198307

BEIGE,BEIGE,TRIM4#

69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iLS110,MS11#,RS110197909-198307

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-30120iMS11#,RS110..ROY,SAL197909-198307

main69830-30150iLS110,MS11#,RS110..BTP,DLX197909-198307

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-30120iMS11#,RS110..ROY,SAL197909-198307

main69840-30150iLS110,MS11#,RS110..BTP,DLX197909-198307

69903CHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-20010iLS110,MS11#,RS110197909-198307

69904CHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69905-20010iLS110,MS11#,RS110197909-198307

9011908093

main90119-08093

9016850009

main90168-50009

9165140610

main91651-40610

9165140612

main91651-40612

16 parts on this diagram · 1 diagram in section
