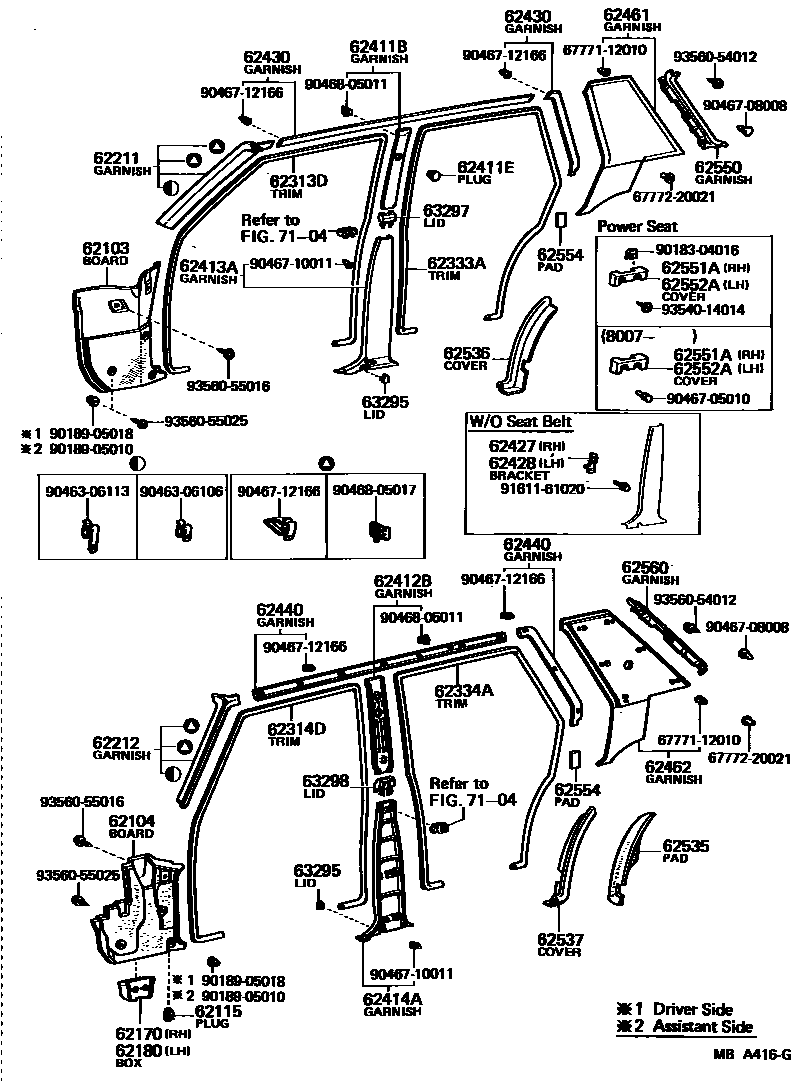

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

62103BOARD SUB-ASSY, COWL SIDE TRIM, RH

main62101-30190-03iLS110,MS112,RS110..RHD..(BTP,DLX)198108-198307

GRAY,GRAY,TRIM1#

main62101-30190-04iLS110,MS11#,RS110..RHD..(BTP,DLX)197909-198108

BLUE,BLUE,TRIM8#

main62101-30190-05iLS110,MS11#,RS110..RHD..(BTP,DLX)197909-198108

GREIGE,BEIGE,TRIM4#

main62101-30190-15iLS110,MS112,RS110..RHD..(BTP,DLX)198108-198307

BEIGE,BEIGE,TRIM4#

main62101-30200-02iMS11#..RHD..(ROY,SAL)197909-198108

DARK WINE,RED/MAROON,TRIM3#

main62101-30200-03iMS112..RHD..(ROY,SAL)198108-198307

GRAY,GRAY,TRIM1#

main62101-30200-04iMS11#..RHD..(ROY,SAL)197909-198108

BLUE,BLUE,TRIM8#

main62101-30200-05iMS11#..RHD..(ROY,SAL)197909-198108

GREIGE,BEIGE,TRIM4#

main62101-30200-15iMS112..RHD..(ROY,SAL)198108-198307

BEIGE,BEIGE,TRIM4#

main62101-30220-02iLS110,MS11#,RS110..LHD197909-198108

DARK WINE,RED/MAROON,TRIM3#

main62101-30220-03iLS110,MS112,RS110..LHD198108-198307

GRAY,GRAY,TRIM1#

main62101-30220-04iLS110,MS11#,RS110..LHD197909-198108

BLUE,BLUE,TRIM8#

main62101-30220-05iLS110,MS11#,RS110..LHD197909-198108

GREIGE,BEIGE,TRIM4#

main62101-30220-15iLS110,MS112,RS110..LHD198108-198307

BEIGE,BEIGE,TRIM4#

62104BOARD SUB-ASSY, COWL SIDE TRIM, LH

main62102-30200-03iLS110,MS112,RS110..LHD..(BTP,DLX)198108-198307

GRAY,GRAY,TRIM1#

main62102-30200-04iLS110,MS11#,RS110..LHD..(BTP,DLX)197909-198108

BLUE,BLUE,TRIM8#

main62102-30200-05iLS110,MS11#,RS110..LHD..(BTP,DLX)197909-198108

GREIGE,BEIGE,TRIM4#

main62102-30200-15iLS110,MS112,RS110..LHD..(BTP,DLX)198108-198307

BEIGE,BEIGE,TRIM4#

main62102-30210-02iMS11#,RS110..LHD..(ROY,SAL)197909-198108

DARK WINE,RED/MAROON,TRIM3#

main62102-30210-03iMS112,RS110..LHD..(ROY,SAL)198108-198307

GRAY,GRAY,TRIM1#

main62102-30210-04iMS11#,RS110..LHD..(ROY,SAL)197909-198108

BLUE,BLUE,TRIM8#

main62102-30210-05iMS11#,RS110..LHD..(ROY,SAL)197909-198108

GREIGE,BEIGE,TRIM4#

main62102-30210-15iMS112,RS110..LHD..(ROY,SAL)198108-198307

BEIGE,BEIGE,TRIM4#

main62102-30220-02iLS110,MS11#,RS110..RHD197909-198108

DARK WINE,RED/MAROON,TRIM3#

main62102-30220-03iLS110,MS112,RS110..RHD198108-198307

GRAY,GRAY,TRIM1#

main62102-30220-04iLS110,MS11#,RS110..RHD197909-198108

BLUE,BLUE,TRIM8#

main62102-30220-05iLS110,MS11#,RS110..RHD197909-198108

GREIGE,BEIGE,TRIM4#

main62102-30220-15iLS110,MS112,RS110..RHD198108-198307

BEIGE,BEIGE,TRIM4#

62115PLUG, COWL SIDE TRIM

main90950-01267-02×2iLS110,MS11#,RS110..RHD197909-198108

DARK WINE,RED/MAROON,TRIM3#

main90950-01267-03×2iLS110,MS112,RS110..RHD198108-198307

GRAY,GRAY,TRIM1#

main90950-01267-04×2iLS110,MS112,RS110..RHD198108-198307

BLUE,BLUE,TRIM8#

main90950-01267-15×2iLS110,MS11#,RS110..RHD197909-198108

GREIGE,BEIGE,TRIM4#

main90950-01267-25×2iLS110,MS112,RS110..RHD198108-198307

BEIGE,BEIGE,TRIM4#

62170BOX ASSY, COWL SIDE TRASH, RH

main62170-30010-02iMS11#,RS110..LHD..(ROY,SAL)197909-198108

DARK WINE,RED/MAROON,TRIM3#

main62170-30010-03iMS112,RS110..LHD..(ROY,SAL)198108-198307

GRAY,GRAY,TRIM1#

main62170-30010-04iMS112,RS110..LHD..(ROY,SAL)198108-198307

BLUE,BLUE,TRIM8#

main62170-30010-05iMS11#,RS110..LHD..(ROY,SAL)197909-198108

GREIGE,BEIGE,TRIM4#

main62170-30010-15iMS112,RS110..LHD..(ROY,SAL)198108-198307

BEIGE,BEIGE,TRIM4#

main62173-30010-03iLS110,MS112,RS110..LHD..(BTP,DLX)198108-198307

GRAY,GRAY,TRIM1#

main62173-30010-04iLS110,MS11#,RS110..LHD..(BTP,DLX)197909-198108

BLUE,BLUE,TRIM8#

main62173-30010-05iLS110,MS11#,RS110..LHD..(BTP,DLX)197909-198108

GREIGE,BEIGE,TRIM4#

main62173-30010-15iLS110,MS112,RS110..LHD..(BTP,DLX)198108-198307

BEIGE,BEIGE,TRIM4#

62180BOX ASSY, COWL SIDE TRASH, LH

main62174-30010-03iLS110,MS112,RS110..RHD..(BTP,DLX)198108-198307

GRAY,GRAY,TRIM1#

main62174-30010-04iLS110,MS11#,RS110..RHD..(BTP,DLX)197909-198108

BLUE,BLUE,TRIM8#

main62174-30010-05iLS110,MS11#,RS110..RHD..(BTP,DLX)197909-198108

GREIGE,BEIGE,TRIM4#

main62174-30010-15iLS110,MS112,RS110..RHD..(BTP,DLX)198108-198307

BEIGE,BEIGE,TRIM4#

main62180-30010-02iMS11#..RHD..(ROY,SAL)197909-198108

DARK WINE,RED/MAROON,TRIM3#

main62180-30010-03iMS112..RHD..(ROY,SAL)198108-198307

GRAY,GRAY,TRIM1#

main62180-30010-04iMS11#..RHD..(ROY,SAL)197909-198108

BLUE,BLUE,TRIM8#

main62180-30010-05iMS11#..RHD..(ROY,SAL)197909-198108

GREIGE,BEIGE,TRIM4#

main62180-30010-15iMS112..RHD..(ROY,SAL)198108-198307

BEIGE,BEIGE,TRIM4#

62211GARNISH, FRONT PILLAR, RH

main62210-30090-03iMS112,RS110..ROY,SAL198108-198307

GRAY,GRAY,TRIM1#,8#

main62210-30090-04iMS11#,RS110..ROY,SAL197909-198108

BLUE,BLUE,TRIM8#

main62210-30090-05iMS112,RS110..ROY,SAL198108-198307

BEIGE,BEIGE,TRIM4#

main62210-30090-08iMS11#,RS110..ROY,SAL197909-198108

IVORY,IVORY,TRIM3#,4#

main62210-30090-14iMS112,RS110..ROY,SAL198108-198307

BLUE,BLUE,TRIM8#

main62210-30100-03iLS110,MS112,RS110..BTP,DLX198108-198307

GRAY,GRAY,TRIM1#

main62210-30100-04iLS110,MS11#,RS110..BTP,DLX197909-198108

BLUE,BLUE,TRIM8#

main62210-30100-05iLS110,MS112,RS110..BTP,DLX198108-198307

BEIGE,BEIGE,TRIM4#

main62210-30100-08iLS110,MS11#,RS110..BTP,DLX197909-198108

IVORY,IVORY,TRIM4#

main62210-30100-14iLS110,MS112,RS110..BTP,DLX198108-198307

BLUE,BLUE,TRIM8#

62212GARNISH, FRONT PILLAR, LH

main62220-30090-03iMS112,RS110..ROY,SAL198108-198307

GRAY,GRAY,TRIM1#,8#

main62220-30090-04iMS11#,RS110..ROY,SAL197909-198108

BLUE,BLUE,TRIM8#

main62220-30090-05iMS112,RS110..ROY,SAL198108-198307

BEIGE,BEIGE,TRIM4#

main62220-30090-08iMS11#,RS110..ROY,SAL197909-198108

IVORY,IVORY,TRIM3#,4#

main62220-30090-14iMS112,RS110..ROY,SAL198108-198307

BLUE,BLUE,TRIM8#

main62220-30100-03iLS110,MS112,RS110..BTP,DLX198108-198307

GRAY,GRAY,TRIM1#

main62220-30100-04iLS110,MS11#,RS110..BTP,DLX197909-198108

BLUE,BLUE,TRIM8#

main62220-30100-05iLS110,MS112,RS110..BTP,DLX198108-198307

BEIGE,BEIGE,TRIM4#

main62220-30100-08iLS110,MS11#,RS110..BTP,DLX197909-198108

IVORY,IVORY,TRIM4#

main62220-30100-14iLS110,MS112,RS110..BTP,DLX198108-198307

BLUE,BLUE,TRIM8#

62313DTRIM, FRONT DOOR OPENING, RH

main62313-30070-02iLS110,MS11#,RS110197909-198108

DARK WINE,RED/MAROON,TRIM3#

main62313-30070-03iLS110,MS112,RS110198108-198307

GRAY,GRAY,TRIM1#

main62313-30070-04iLS110,MS11#,RS110197909-198108

BLUE,BLUE,TRIM8#

main62313-30070-05iLS110,MS11#,RS110197909-198108

GREIGE,BEIGE,TRIM4#

main62313-30070-15iLS110,MS112,RS110198108-198307

BEIGE,BEIGE,TRIM4#

62314DTRIM, FRONT DOOR OPENING, LH

main62313-30070-02iLS110,MS11#,RS110197909-198108

DARK WINE,RED/MAROON,TRIM3#

main62313-30070-03iLS110,MS112,RS110198108-198307

GRAY,GRAY,TRIM1#

main62313-30070-04iLS110,MS11#,RS110197909-198108

BLUE,BLUE,TRIM8#

main62313-30070-05iLS110,MS11#,RS110197909-198108

GREIGE,BEIGE,TRIM4#

main62313-30070-15iLS110,MS112,RS110198108-198307

BEIGE,BEIGE,TRIM4#

62333ATRIM, REAR DOOR OPENING, RH

main62333-30030-02iLS110,MS11#,RS110197909-198108

DARK WINE,RED/MAROON,TRIM3#

main62333-30030-03iLS110,MS112,RS110198108-198307

GRAY,GRAY,TRIM1#

main62333-30030-04iLS110,MS11#,RS110197909-198108

BLUE,BLUE,TRIM8#

main62333-30030-05iLS110,MS11#,RS110197909-198108

GREIGE,BEIGE,TRIM4#

main62333-30030-15iLS110,MS112,RS110198108-198307

BEIGE,BEIGE,TRIM4#

62334ATRIM, REAR DOOR OPENING, LH

main62333-30030-02iLS110,MS11#,RS110197909-198108

DARK WINE,RED/MAROON,TRIM3#

main62333-30030-03iLS110,MS112,RS110198108-198307

GRAY,GRAY,TRIM1#

main62333-30030-04iLS110,MS11#,RS110197909-198108

BLUE,BLUE,TRIM8#

main62333-30030-05iLS110,MS11#,RS110197909-198108

GREIGE,BEIGE,TRIM4#

main62333-30030-15iLS110,MS112,RS110198108-198307

BEIGE,BEIGE,TRIM4#

62411BGARNISH, CENTER PILLAR, UPPER RH

main62401-30060-03iMS112,RS110..ROY,SAL198108-198307

GRAY,GRAY,TRIM1#,8#

main62401-30060-04iMS11#,RS110..ROY,SAL197909-198108

BLUE,BLUE,TRIM8#

main62401-30060-05iMS112,RS110..ROY,SAL198108-198307

BEIGE,BEIGE,TRIM4#

main62401-30060-08iMS11#,RS110..ROY,SAL197909-198108

IVORY,IVORY,TRIM3#,4#

main62401-30060-14iMS112,RS110..ROY,SAL198108-198307

BLUE,BLUE,TRIM8#

main62411-30170-03iLS110,MS112,RS110..BTP,DLX198108-198307

GRAY,GRAY,TRIM1#

main62411-30170-04iLS110,MS11#,RS110..BTP,DLX197909-198108

BLUE,BLUE,TRIM8#

main62411-30170-05iLS110,MS112,RS110..BTP,DLX198108-198307

BEIGE,BEIGE,TRIM4#

main62411-30170-08iLS110,MS11#,RS110..BTP,DLX197909-198108

IVORY,IVORY,TRIM4#

main62411-30170-14iLS110,MS112,RS110..BTP,DLX198108-198307

BLUE,BLUE,TRIM8#

62411EPLUG, HOLE (FOR SEAT BELT)

main90950-01159-04×2iLS110,MS112,RS110..(BTP,DLX)..GEN198108-198307

BLUE,BLUE,TRIM8#

main90950-01159-08×2iLS110,MS11#,RS110..(BTP,DLX)..GEN197909-198108

IVORY,IVORY,TRIM4#

main90950-01159-13×2iLS110,MS112,RS110..(BTP,DLX)..GEN198108-198307

GRAY,GRAY,TRIM1#

main90950-01159-35×2iLS110,MS112,RS110..(BTP,DLX)..GEN198108-198307

BEIGE,BEIGE,TRIM4#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62402-30060-03iMS112,RS110..ROY,SAL198108-198307

GRAY,GRAY,TRIM1#,8#

main62402-30060-04iMS11#,RS110..ROY,SAL197909-198108

BLUE,BLUE,TRIM8#

main62402-30060-05iMS112,RS110..ROY,SAL198108-198307

BEIGE,BEIGE,TRIM4#

main62402-30060-08iMS11#,RS110..ROY,SAL197909-198108

IVORY,IVORY,TRIM3#,4#

main62402-30060-14iMS112,RS110..ROY,SAL198108-198307

BLUE,BLUE,TRIM8#

main62412-30170-03iLS110,MS112,RS110..BTP,DLX198108-198307

GRAY,GRAY,TRIM1#

main62412-30170-04iLS110,MS11#,RS110..BTP,DLX197909-198108

BLUE,BLUE,TRIM8#

main62412-30170-05iLS110,MS112,RS110..BTP,DLX198108-198307

BEIGE,BEIGE,TRIM4#

main62412-30170-08iLS110,MS11#,RS110..BTP,DLX197909-198108

IVORY,IVORY,TRIM4#

main62412-30170-14iLS110,MS112,RS110..BTP,DLX198108-198307

BLUE,BLUE,TRIM8#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62041-30010-02iMS11#,RS110..ROY,SAL197909-198108

DARK WINE,RED/MAROON,TRIM3#

main62041-30010-03iMS112,RS110..ROY,SAL198108-198307

GRAY,GRAY,TRIM1#

main62041-30010-04iMS11#,RS110..ROY,SAL197909-198108

BLUE,BLUE,TRIM8#

main62041-30010-05iMS11#,RS110..ROY,SAL197909-198108

GREIGE,BEIGE,TRIM4#

main62041-30010-15iMS112,RS110..ROY,SAL198108-198307

BEIGE,BEIGE,TRIM4#

main62413-30080-03iLS110,MS112,RS110..BTP,DLX198108-198307

GRAY,GRAY,TRIM1#

main62413-30080-04iLS110,MS11#,RS110..BTP,DLX197909-198108

BLUE,BLUE,TRIM8#

main62413-30080-05iLS110,MS11#,RS110..BTP,DLX197909-198108

GREIGE,BEIGE,TRIM4#

main62413-30080-15iLS110,MS112,RS110..BTP,DLX198108-198307

BEIGE,BEIGE,TRIM4#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62042-30010-02iMS11#,RS110..ROY,SAL197909-198108

DARK WINE,RED/MAROON,TRIM3#

main62042-30010-03iMS112,RS110..ROY,SAL198108-198307

GRAY,GRAY,TRIM1#

main62042-30010-04iMS11#,RS110..ROY,SAL197909-198108

BLUE,BLUE,TRIM8#

main62042-30010-05iMS11#,RS110..ROY,SAL197909-198108

GREIGE,BEIGE,TRIM4#

main62042-30010-15iMS112,RS110..ROY,SAL198108-198307

BEIGE,BEIGE,TRIM4#

main62414-30010-03iLS110,MS112,RS110..BTP,DLX198108-198307

GRAY,GRAY,TRIM1#

main62414-30010-04iLS110,MS112,RS110..BTP,DLX198108-198307

BLUE,BLUE,TRIM8#

main62414-30010-05iLS110,MS11#,RS110..BTP,DLX197909-198108

GREIGE,BEIGE,TRIM4#

main62414-30010-15iLS110,MS112,RS110..BTP,DLX198108-198307

BEIGE,BEIGE,TRIM4#

62427BRACKET, CENTER PILLAR GARNISH, RH

main62427-30030iLS110,MS11#,RS110..(BTP,DLX)..GEN198001-198307

62428BRACKET, CENTER PILLAR GARNISH, LH

main62428-30020iLS110,MS11#,RS110..(BTP,DLX)..GEN198001-198307

62430GARNISH ASSY, ROOF SIDE RAIL, RH

main62430-30140-03iMS112,RS110..ROY,SAL198108-198307

FR,GRAY,GRAY,TRIM1#,8#

main62430-30140-04iMS11#,RS110..ROY,SAL197909-198108

FR,BLUE,BLUE,TRIM8#

main62430-30140-05iMS112,RS110..ROY,SAL198108-198307

FR,BEIGE,BEIGE,TRIM4#

main62430-30140-08iMS11#,RS110..ROY,SAL197909-198108

FR,IVORY,IVORY,TRIM3#,4#

main62430-30140-14iMS112,RS110..ROY,SAL198108-198307

FR,BLUE,BLUE,TRIM8#

main62450-30030-03iMS112,RS110..ROY,SAL198108-198307

RR,GRAY,GRAY,TRIM1#,8#

main62450-30030-04iMS11#,RS110..ROY,SAL197909-198108

RR,BLUE,BLUE,TRIM8#

main62450-30030-05iMS112,RS110..ROY,SAL198108-198307

RR,BEIGE,BEIGE,TRIM4#

main62450-30030-08iMS11#,RS110..ROY,SAL197909-198108

RR,IVORY,IVORY,TRIM3#,4#

main62450-30030-14iMS112,RS110..ROY,SAL198108-198307

RR,BLUE,BLUE,TRIM8#

62440GARNISH ASSY, ROOF SIDE RAIL, LH

main62440-30140-03iMS112,RS110..ROY,SAL198108-198307

FR,GRAY,GRAY,TRIM1#,8#

main62440-30140-04iMS11#,RS110..ROY,SAL197909-198108

FR,BLUE,BLUE,TRIM8#

main62440-30140-05iMS112,RS110..ROY,SAL198108-198307

FR,BEIGE,BEIGE,TRIM4#

main62440-30140-08iMS11#,RS110..ROY,SAL197909-198108

FR,IVORY,IVORY,TRIM3#,4#

main62440-30140-14iMS112,RS110..ROY,SAL198108-198307

FR,BLUE,BLUE,TRIM8#

main62460-30080-03iMS112,RS110..ROY,SAL198108-198307

RR,GRAY,GRAY,TRIM1#,8#

main62460-30080-04iMS11#,RS110..ROY,SAL197909-198108

RR,BLUE,BLUE,TRIM8#

main62460-30080-05iMS112,RS110..ROY,SAL198108-198307

RR,BEIGE,BEIGE,TRIM4#

main62460-30080-08iMS11#,RS110..ROY,SAL197909-198108

RR,IVORY,IVORY,TRIM3#,4#

main62460-30080-14iMS112,RS110..ROY,SAL198108-198307

RR,BLUE,BLUE,TRIM8#

62461GARNISH, ROOF SIDE TRIM, RH

main62470-30150-03iLS110,MS112,RS110..SED..(BTP,DLX)198108-198307

GRAY,GRAY,TRIM1#

sub62470-30160

main62470-30150-04iLS110,MS11#,RS110..SED..(BTP,DLX)197909-198108

BLUE,BLUE,TRIM8#

sub62470-30160

main62470-30150-05iLS110,MS112,RS110..SED..(BTP,DLX)198108-198307

BEIGE,BEIGE,TRIM4#

sub62470-30160

main62470-30150-08iLS110,MS11#,RS110..SED..(BTP,DLX)197909-198108

IVORY,IVORY,TRIM4#

sub62470-30160

main62470-30170-03iMS112..LHD..SAL..EFI;MS112,RS110..(ROY,SAL)..(ARL,GEN)198108-198307

GRAY,GRAY,TRIM1#,8#

main62470-30170-04iMS112..LHD..SAL..EFI;MS11#,RS110..(ROY,SAL)..(ARL,GEN)197909-198108

BLUE,BLUE,TRIM8#

main62470-30170-05iMS112..LHD..SAL..EFI;MS112,RS110..(ROY,SAL)..(ARL,GEN)198108-198307

BEIGE,BEIGE,TRIM4#

main62470-30170-08iMS112..LHD..SAL..EFI;MS11#,RS110..(ROY,SAL)..(ARL,GEN)197909-198108

IVORY,IVORY,TRIM3#,4#

main62470-30210-03iMS112..RHD..EUR198108-198307

GRAY,GRAY,TRIM1#,8#

main62470-30210-04iMS112..RHD..EUR197909-198108

BLUE,BLUE,TRIM8#

main62470-30210-05iMS112..RHD..EUR198108-198307

BEIGE,BEIGE,TRIM4#

main62470-30210-08iMS112..RHD..EUR197909-198108

IVORY,IVORY,TRIM3#,4#

62462GARNISH, ROOF SIDE TRIM, LH

main62480-30110-03iLS110,MS112,RS110..SED..(BTP,DLX)198108-198307

GRAY,GRAY,TRIM1#

sub62480-30120

main62480-30110-04iLS110,MS11#,RS110..SED..(BTP,DLX)197909-198108

BLUE,BLUE,TRIM8#

sub62480-30120

main62480-30110-05iLS110,MS112,RS110..SED..(BTP,DLX)198108-198307

BEIGE,BEIGE,TRIM4#

sub62480-30120

main62480-30110-08iLS110,MS11#,RS110..SED..(BTP,DLX)197909-198108

IVORY,IVORY,TRIM4#

sub62480-30120

main62480-30130-03iMS112..LHD..SAL..EFI;MS112,RS110..(ROY,SAL)..(ARL,GEN)198108-198307

GRAY,GRAY,TRIM1#,8#

main62480-30130-04iMS112..LHD..SAL..EFI;MS11#,RS110..(ROY,SAL)..(ARL,GEN)197909-198108

BLUE,BLUE,TRIM8#

main62480-30130-05iMS112..LHD..SAL..EFI;MS112,RS110..(ROY,SAL)..(ARL,GEN)198108-198307

BEIGE,BEIGE,TRIM4#

main62480-30130-08iMS112..LHD..SAL..EFI;MS11#,RS110..(ROY,SAL)..(ARL,GEN)197909-198108

IVORY,IVORY,TRIM3#,4#

main62480-30170-03iMS112..RHD..EUR198108-198307

GRAY,GRAY,TRIM1#,8#

main62480-30170-04iMS112..RHD..EUR197909-198108

BLUE,BLUE,TRIM8#

main62480-30170-05iMS112..RHD..EUR198108-198307

BEIGE,BEIGE,TRIM4#

main62480-30170-08iMS112..RHD..EUR197909-198108

IVORY,IVORY,TRIM3#,4#

62535PAD, QUARTER WHEEL HOUSE TRIM

main62611-30020×2iLS110,MS11#,RS110..SED197909-198307

main62611-91704×3iLS110,MS11#..WG197909-198307

62536COVER, QUARTER WHEEL HOUSE TRIM FRONT, RH

main62613-30010iLS110,MS11#,RS110..SED..(BTP,DLX,SAL)197909-198307

62537COVER, QUARTER WHEEL HOUSE TRIM FRONT, LH

main62613-30010iLS110,MS11#,RS110..SED..(BTP,DLX,SAL)197909-198307

62550GARNISH ASSY, REAR BODY PILLAR, RH

main62581-30030-03iLS110,MS112,RS110..SED198108-198307

GRAY,GRAY,TRIM1#,8#

main62581-30030-04iLS110,MS11#,RS110..SED197909-198108

BLUE,BLUE,TRIM8#

main62581-30030-05iLS110,MS112,RS110..SED198108-198307

BEIGE,BEIGE,TRIM4#

main62581-30030-08iLS110,MS11#,RS110..SED197909-198108

IVORY,IVORY,TRIM3#,4#

main62581-30030-14iLS110,MS112,RS110..SED198108-198307

BLUE,BLUE,TRIM8#

62551ACOVER, REAR SEAT SIDE, RH

main62551-30020-02iMS11#..ROY..GEN197909-198108

DARK WINE,RED/MAROON,TRIM3#

main62551-30020-04iMS11#..ROY..GEN197909-198108

BLUE,BLUE,TRIM8#

main62551-30020-05iMS11#..ROY..GEN197909-198108

GREIGE,BEIGE,TRIM4#

62552ACOVER, REAR SEAT SIDE, LH

main62552-30010-02iMS11#..ROY..GEN197909-198108

DARK WINE,RED/MAROON,TRIM3#

main62552-30010-04iMS11#..ROY..GEN197909-198108

BLUE,BLUE,TRIM8#

main62552-30010-05iMS11#..ROY..GEN197909-198108

GREIGE,BEIGE,TRIM4#

62554PAD, REAR SEAT SIDE

main62553-30020×2iLS110,MS11#,RS110..SED..(BTP,DLX,SAL)197909-198307

62560GARNISH ASSY, REAR BODY PILLAR, LH

main62582-30020-03iLS110,MS112,RS110..SED198108-198307

GRAY,GRAY,TRIM1#,8#

main62582-30020-04iLS110,MS11#,RS110..SED197909-198108

BLUE,BLUE,TRIM8#

main62582-30020-05iLS110,MS112,RS110..SED198108-198307

BEIGE,BEIGE,TRIM4#

main62582-30020-08iLS110,MS11#,RS110..SED197909-198108

IVORY,IVORY,TRIM3#,4#

main62582-30020-14iLS110,MS112,RS110..SED198108-198307

BLUE,BLUE,TRIM8#

63295LID, CENTER PILLAR GARNISH BELT HOLE, LOWER

main73295-30010-03×2iLS110,MS112,RS110..(BTP,DLX)..GEN198108-198307

GRAY,GRAY,TRIM1#

main73295-30010-04×2iLS110,MS11#,RS110..(BTP,DLX)..GEN197909-198108

BLUE,BLUE,TRIM8#

main73295-30010-05×2iLS110,MS11#,RS110..(BTP,DLX)..GEN197909-198108

GREIGE,BEIGE,TRIM4#

main73295-30010-15×2iLS110,MS112,RS110..(BTP,DLX)..GEN198108-198307

BEIGE,BEIGE,TRIM4#

63297LID, CENTER PILLAR GARNISH BELT HOLE, RH

main73297-30010-03iLS110,MS112,RS110..(BTP,DLX)..GEN198108-198307

GRAY,GRAY,TRIM1#

main73297-30010-04iLS110,MS11#,RS110..(BTP,DLX)..GEN197909-198108

BLUE,BLUE,TRIM8#

main73297-30010-05iLS110,MS11#,RS110..(BTP,DLX)..GEN197909-198108

GREIGE,BEIGE,TRIM4#

main73297-30010-15iLS110,MS112,RS110..(BTP,DLX)..GEN198108-198307

BEIGE,BEIGE,TRIM4#

63298LID, CENTER PILLAR GARNISH BELT HOLE, LH

main73298-30010-03iLS110,MS112,RS110..(BTP,DLX)..GEN198108-198307

GRAY,GRAY,TRIM1#

main73298-30010-04iLS110,MS112,RS110..(BTP,DLX)..GEN198108-198307

BLUE,BLUE,TRIM8#

main73298-30010-05iLS110,MS11#,RS110..(BTP,DLX)..GEN197909-198108

GREIGE,BEIGE,TRIM4#

main73298-30010-15iLS110,MS112,RS110..(BTP,DLX)..GEN198108-198307

BEIGE,BEIGE,TRIM4#

7104

6777112010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12010

6777220021WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-20021

9018304016

main90183-04016

9018905010

main90189-05010

9018905018

main90189-05018

9046306106

main90463-06106

9046306113

main90463-06113

9046705010

main90467-05010

9046708008

main90467-08008

9046710011

main90467-10011

9046712166

main90467-12166

9046805011

main90468-05011

9046805017

main90468-05017

9161161020

main91611-61020

9354014014

main93540-14014

9356054012

main93560-54012

9356055016

main93560-55016

9356055025

main93560-55025

52 parts on this diagram · 2 diagrams in section
