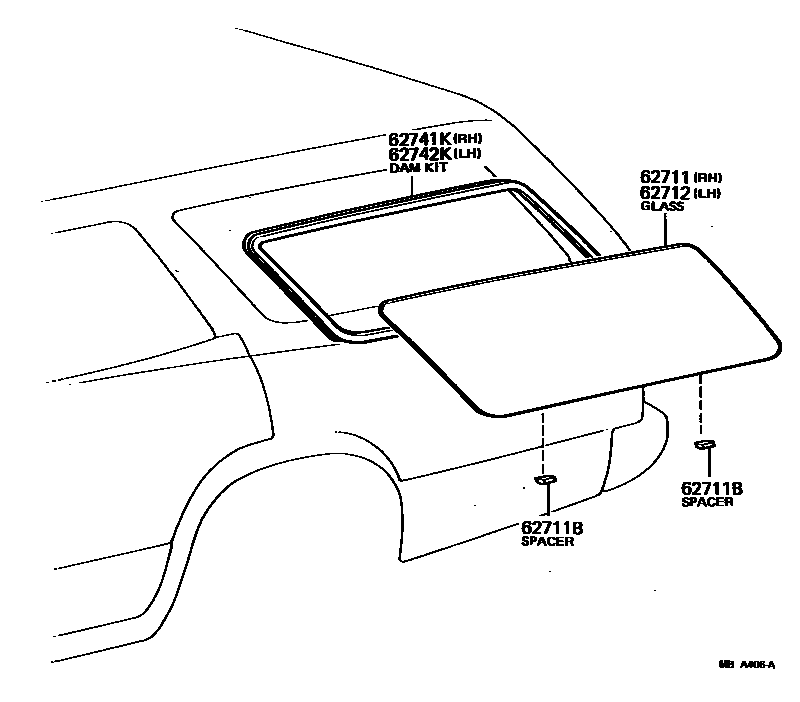

QUARTER WINDOW

62711GLASS, QUARTER WINDOW, RH

main62711-91703iLS110,MS11#..WG..BTP197909-198108

*TEM,T=4.0

main62711-91704iLS110,MS11#..WG197909-198108

*TT,T=4.0

main62711-91705iLS110,MS112..WG198108-198307

*TT,T=4.0

main62711-91706iLS110..WG198108-198307

*TEM,T=4.0

62711BSPACER, QUARTER WINDOW GLASS, NO.2

main62785-91701×6iLS110,MS11#..WG197909-198307

62712GLASS, QUARTER WINDOW, LH

main62712-91703iLS110,MS11#..WG..BTP197909-198108

*TEM,T=4.0

main62712-91704iLS110,MS11#..WG197909-198108

*TT,T=4.0

main62712-91705iLS110,MS112..WG198108-198307

*TT,T=4.0

main62712-91706iLS110..WG198108-198307

*TEM,T=4.0

62741KDAM KIT, QUARTER WINDOW, RH

main04621-30011iLS110,MS11#..WG197909-198307

62742KDAM KIT, QUARTER WINDOW, LH

main04621-30011iLS110,MS11#..WG197909-198307

5 parts on this diagram · 1 diagram in section
