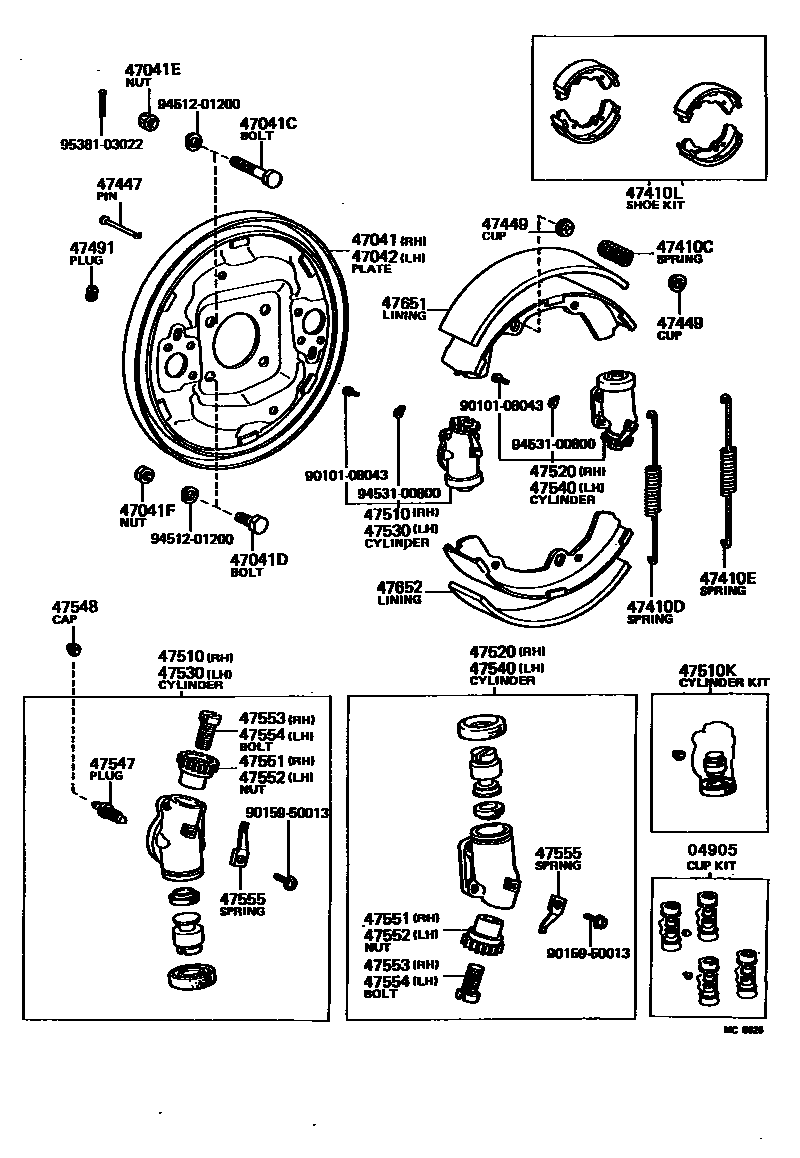

FRONT DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04905CUP KIT, FRONT WHEEL CYLINDER

main04905-30030iLS110,RS110..SED..BTP..GEN197909-198108

47041PLATE SUB-ASSY, BRAKE BACKING, FRONT RH

main47041-30080iLS110,RS110..SED..BTP..GEN197909-198108

sub47041-30090

47041CBOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)

main90102-12044×4iLS110,RS110..SED..BTP..GEN197909-198108

*12-1.5PX61.5-24

47041DBOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

main90101-12013×4iLS110,RS110..SED..BTP..GEN197909-198108

*12-1.25PX30-19

sub90101-12030

47041ENUT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)

main94145-71200×4iLS110,RS110..SED..BTP..GEN197909-198108

47041FNUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

main94115-71200×4iLS110,RS110..SED..BTP..GEN197909-198108

47042PLATE SUB-ASSY, BRAKE BACKING, FRONT LH

main47042-30080iLS110,RS110..SED..BTP..GEN197909-198108

sub47042-30090

47410CSPRING(FOR FRONT BRAKE SHOE HOLD DOWN)

main90501-20756×4iLS110,RS110..SED..BTP..GEN197909-198108

47410DSPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90506-23005×2iLS110,RS110..SED..BTP..GEN197909-198108

47410ESPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90506-23005×2iLS110,RS110..SED..BTP..GEN197909-198108

47410LSHOE KIT, FRONT BRAKE

main04494-30030iLS110,RS110..SED..BTP..GEN197909-198108

sub04494-30031

47447PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47447-22010×4iLS110,RS110..SED..BTP..GEN197909-198108

47449CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47449-30020×8iLS110,RS110..SED..BTP..GEN197909-198108

47491PLUG, HOLE(FOR FRONT BRAKE)

main47491-35030×4iLS110,RS110..SED..BTP..GEN197909-198108

47510CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)

main47510-39105iLS110,RS110..SED..BTP..GEN197909-198108

ID=25.40

sub47510-30062

47510KCYLINDER KIT, FRONT WHEEL

main04473-30030iLS110,RS110..SED..BTP..GEN197909-198108

47520CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)

main47520-39075iLS110,RS110..SED..BTP..GEN197909-198108

ID=25.40

sub47520-30042

47530CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)

main47530-39105iLS110,RS110..SED..BTP..GEN197909-198108

ID=25.40

sub47530-30062

47540CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)

main47540-39075iLS110,RS110..SED..BTP..GEN197909-198108

ID=25.40

sub47540-30042

47547PLUG, BLEEDER(FOR FRONT DRUM BRAKE)

main47547-20030×2iLS110,RS110..SED..BTP..GEN197909-198108

47548CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)

main31478-30010×2iLS110,RS110..SED..BTP..GEN197909-198108

47551NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47551-40010×2iLS110,RS110..SED..BTP..GEN197909-198108

47552NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47552-40010×2iLS110,RS110..SED..BTP..GEN197909-198108

47553BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47553-30051×2iLS110,RS110..SED..BTP..GEN197909-198108

47554BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47554-30051×2iLS110,RS110..SED..BTP..GEN197909-198108

47555SPRING, ADJUSTER LOCK(FOR FRONT BRAKE)

main47555-30070×4iLS110,RS110..SED..BTP..GEN197909-198108

47651LINING, FRONT BRAKE SHOE(FOR FRONT OR UPPER)

main47651-30080×2iLS110,RS110..SED..BTP..GEN197909-198108

47652LINING, FRONT BRAKE SHOE(FOR REAR OR LOWER)

main47651-30080×2iLS110,RS110..SED..BTP..GEN197909-198108

9010108043

main90101-08043

9015950013

main90159-50013

9451201200

main94512-01200

9453100800

main94531-00800

9538103022

main95381-03022

33 parts on this diagram · 1 diagram in section
