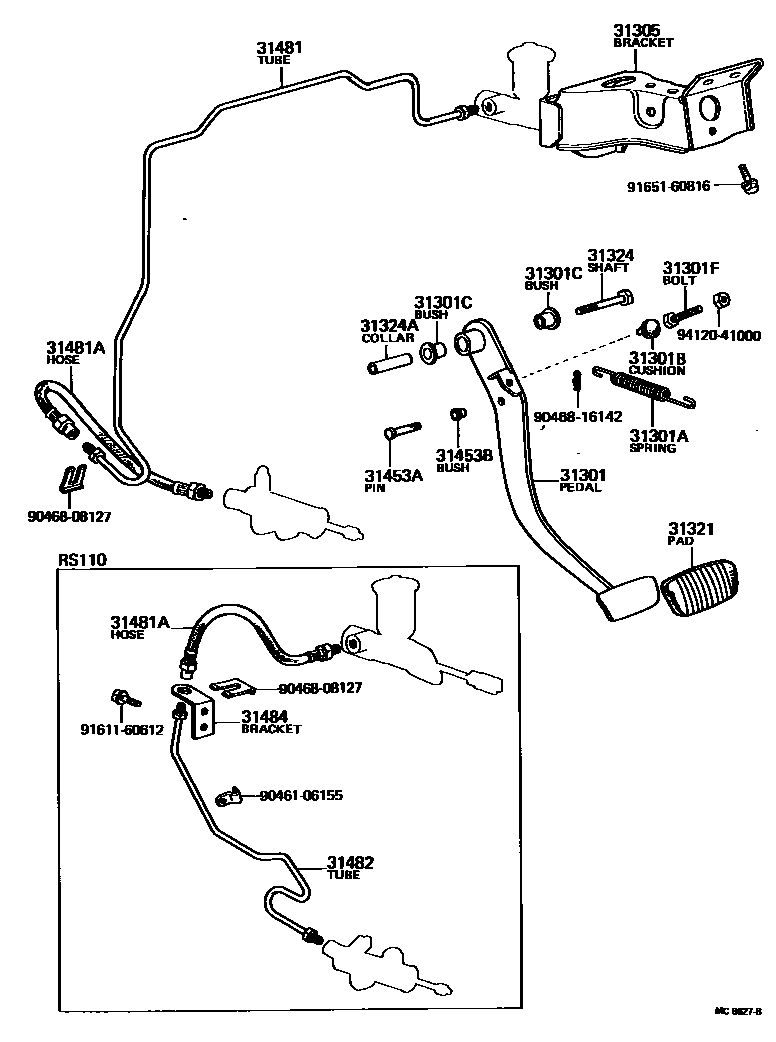

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-30130iLS110,MS11#,RS110..RHD..MTM197909-198307

main31301-30140iLS110,MS11#,RS110..LHD..MTM197909-198307

31301ASPRING(FOR CLUTCH PEDAL)

main90506-12026iLS110,MS11#,RS110..MTM197909-198307

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06008iLS110,MS11#,RS110..MTM197909-198307

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13192×2iLS110,MS11#,RS110..MTM197909-198307

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10067iLS110,MS111,RS110..RHD..MTM197909-197912

main90101-10074iLS110,MS11#,RS110..LHD..MTM197909-197912

main90101-10369iLS110,MS11#,RS110..MTM197912-198307

31305BRACKET SUB-ASSY, CLUTCH PEDAL

main55107-30080iLS110,MS11#,RS110..RHD..MTM197909-198307

main55107-30100iLS110,MS11#,RS110..LHD..MTM197909-198307

31321PAD, CLUTCH PEDAL

main31321-30040iLS110,MS11#,RS110..MTM197909-198307

31324SHAFT, CLUTCH PEDAL

main90101-10039iLS110,MS11#,RS110..MTM197909-198307

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iLS110,MS11#,RS110..MTM197909-198307

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08018iMS112..MTM; RS110..LHD198011-198307

L=29.5

main90249-08028iRS110..RHD198011-198207

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08010iLS110,MS11#,RS110..MTM197909-198307

31481TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE

main31481-30100iLS110,MS11#..LHD..MTM197909-198307

main31481-30110iRS110..LHD197909-198307

main31481-30120iLS110,MS11#..RHD..MTM197909-198307

31481AHOSE, CLUTCH, NO.1

main96930-32605iRS110..LHD197909-198307

main96940-32405iRS110..RHD197909-198207

main96940-33005iLS110,MS11#..MTM197909-198307

31482TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE

main31482-30135iRS110..LHD197909-198108

main31482-30136iRS110..LHD198108-198307

main31482-30181iRS110..RHD197909-198207

31484BRACKET, FLEXIBLE HOSE(FOR CLUTCH)

main31484-30114iRS110..LHD197909-198307

main31484-30150iRS110..RHD197909-198207

9046106155

main90461-06155

9046808127

main90468-08127

9046816142

main90468-16142

9161160612

main91611-60612

9165160816

main91651-60816

9412041000

main94120-41000

21 parts on this diagram · 2 diagrams in section
