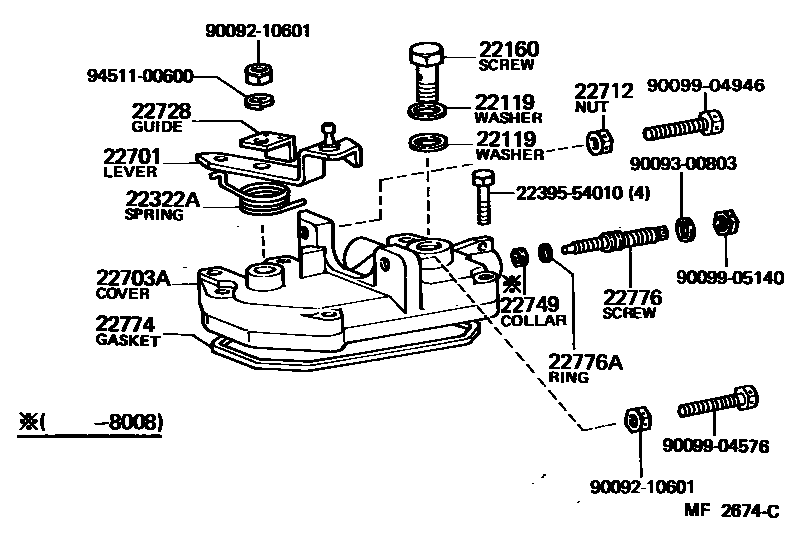

INJECTION PUMP BODY
22119WASHER, AIR BLEEDER NIPPLE
sub90201-12109
22322ASPRING, RETURN
22701LEVER SUB-ASSY, ADJUSTING
HONG KONG,SINGAPORE,NO MARK
NO MARK
HONG KONG,SINGAPORE,MARK"0"
MARK "0"
22703ACOVER SUB-ASSY, GOVERNOR
HONG KONG SPEC,SINGAPORE SPEC
sub22703-54080
sub22703-64150
HIGH ALTITUDE SPEC
HIGH ALTITUDE SPEC
22712NUT, ROCK
22728GUIDE, RETURN SPRING
22749COLLAR, SMOKE SET ADJUSTING
T=2.0
T=2.2
T=2.4
T=2.6
T=2.8
T=3.0
T=3.2
T=3.4
T=3.6
T=3.8
22774GASKET, GOVERNOR COVER
sub22774-54270
22776ARING, O(FOR SMOKE SET SCREW)
sub22193-54771
2239554010BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-54010
9009210601
main90092-10601
9009300803
main90093-00803
9009904576
main90099-04576
9009904946
main90099-04946
9009905140
main90099-05140
9451100600
main94511-00600
18 parts on this diagram · 4 diagrams in section
