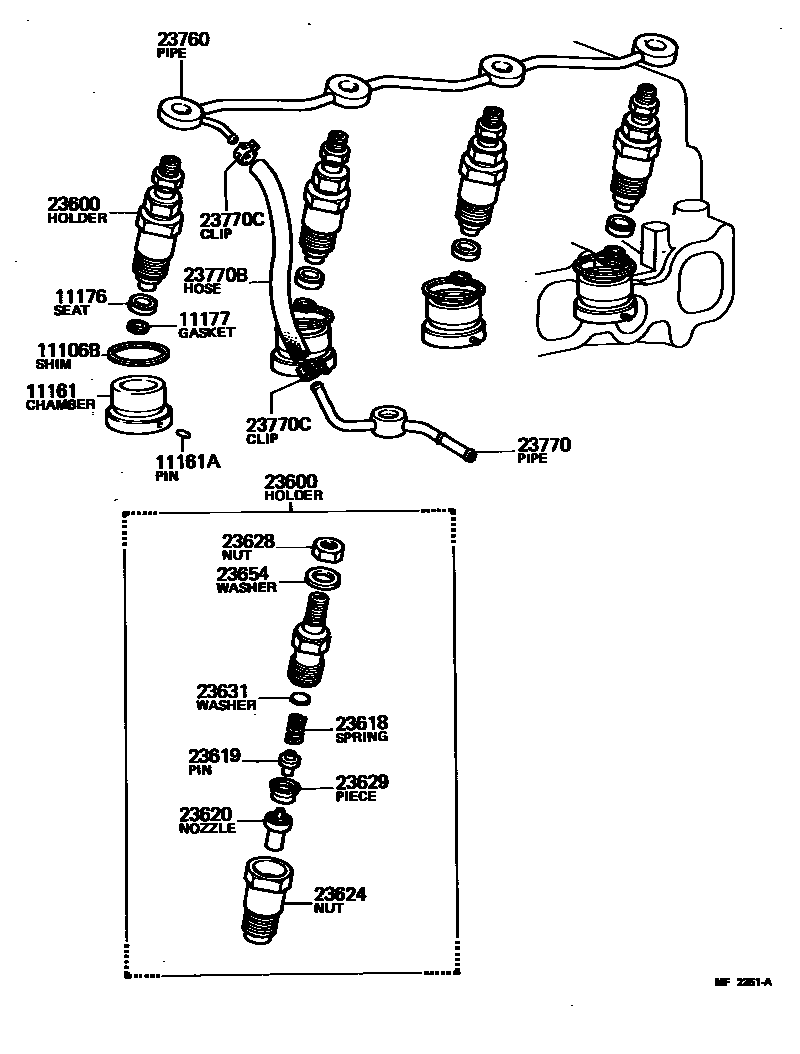

INJECTION NOZZLE
11106BSHIM(FOR COMBUSTION CHAMBER)
T=0.05
T=0.05
T=0.10
T=0.10
T=0.15
T=0.15
T=0.20
T=0.20
11161APIN, STRAIGHT(FOR COMBUSTION CHAMBER)
11176SEAT, INJECTION NOZZLE
23600HOLDER & NOZZLE SET, NOZZLE
HONG KONG SPEC,SINGA PORE SPEC
23618SPRING, NOZZLE HOLDER PRESSURE
HONG KONG SPEC,SINGA PORE SPEC
23619PIN, NOZZLE HOLDER PRESSURE
23620NOZZLE ASSY
HONG KONG SPEC,SINGA PORE SPEC
23624NUT, NOZZLE RETAINING
sub23624-58080
23628NUT(FOR RING PACKING SETTING)
23629PIECE, DISTANCE(FOR NOZZLE)
23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)
T=1.000
T=1.050
T=1.100
T=1.150
T=1.200
T=1.250
T=1.300
T=1.350
T=1.400
T=1.450
T=1.500
T=1.550
T=1.600
T=1.650
T=1.700
T=1.750
T=1.800
T=1.850
T=1.900
T=1.950
23654WASHER(FOR RING PACKING)
23760PIPE ASSY, NOZZLE LEAKAGE
23770BHOSE, FUEL
23770CCLAMP OR CLIP(FOR FUEL HOSE SET)
sub96132-51000
18 parts on this diagram · 2 diagrams in section
