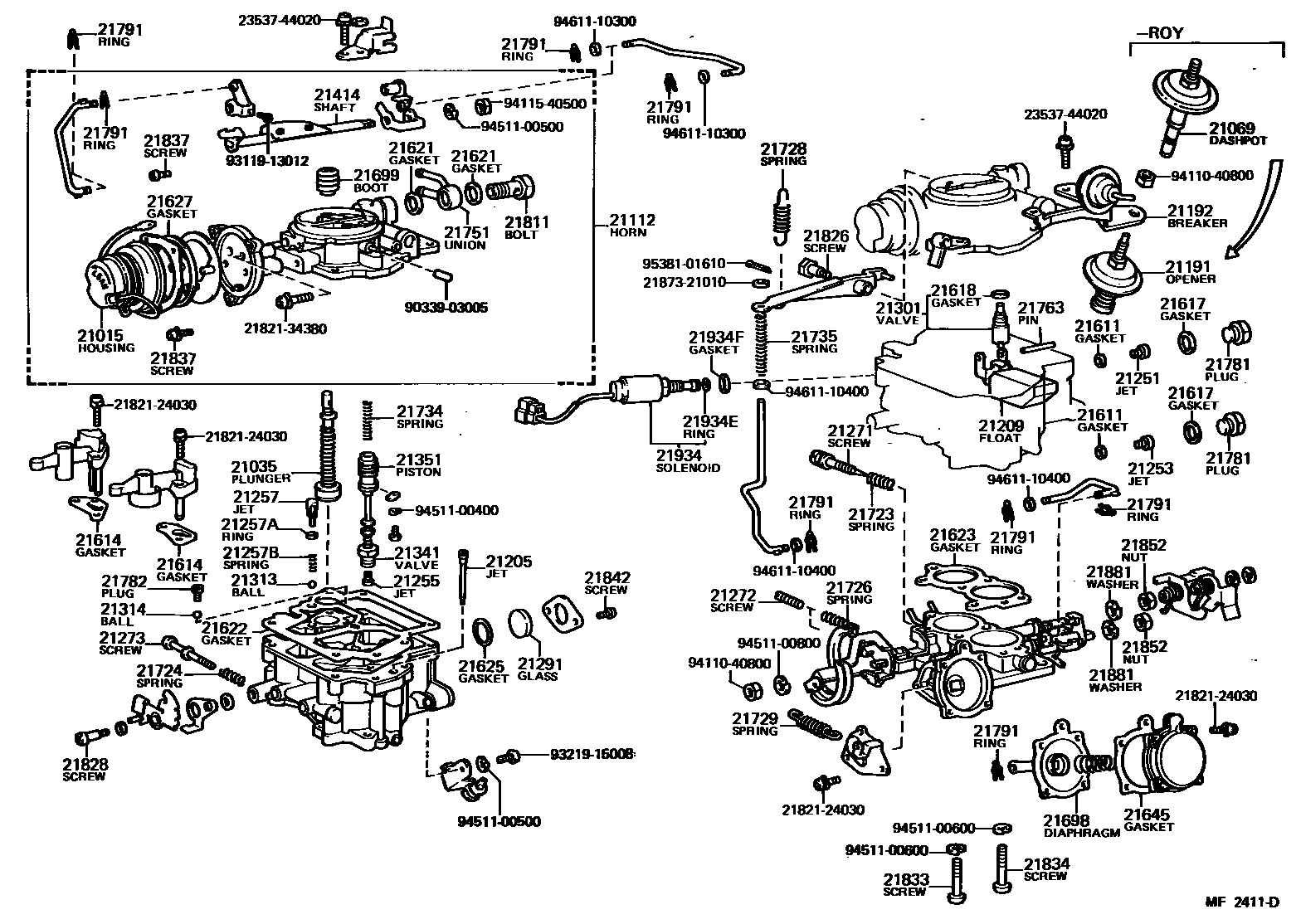

CARBURETOR
21015HOUSING SUB-ASSY, COIL
21035PLUNGER SUB-ASSY, PUMP
21069DASH POT SUB-ASSY
21112HORN, AIR
21191OPENER
21192BREAKER
21205JET SUB-ASSY, SLOW
ID=0.60
ID=0.70
21251JET, 1ST MAIN
ID=1.05
ID=1.07
ID=1.14
ID=1.05
21253JET, 2ND MAIN
ID=1.74
ID=1.80
ID=1.85
ID=1.85
21257JET, PUMP
21257ARING, O(FOR PUMP JET)
21257BSPRING(FOR PUMP JET)
21272SCREW, 1ST IDLE ADJUSTING
21273SCREW, THROTTLE ADJUSTING
21291GLASS, LEVEL GAGE
21313BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
21341VALVE, POWER
21611GASKET, MAIN JET
21614GASKET, VENTURI
1ST
2ND
21617GASKET, MAIN PASSAGE PLUG
21618GASKET, NEEDLE VALVE SEAT
21621GASKET, UNION NIPPLE
21622GASKET, AIR HORN
21623GASKET, BODY FLANGE
21625GASKET, LEVEL GAGE
21627GASKET, COIL HOUSING
21723SPRING, IDLE ADJUSTING
21724SPRING, THROTTLE ADJUSTING
21726SPRING, 1ST IDLE ADJUSTING
21728SPRING, THROTTLE VALVE RETURN
21734SPRING, POWER PISTON
21735SPRING, PUMP ARM
21781PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
sub21781-16510
21782PLUG, NUT(FOR ACCELERATING SYSTEM)
21791RING, SNAP, NO.1(FOR CARBURETOR LINK)
sub21791-13011
21811BOLT, UNION NIPPLE
21826SCREW, PUMP ARM SET
21828SCREW, 1ST IDLE SET
21833SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
*6-1.0PX27.5-13
*6-1.0PX27.5-13
21834SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
21837SCREW, COIL HOUSING SET
21842SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
21852NUT, THROTTLE LEVER SET
21881WASHER, LOCK(FOR THROTTLE SHAFT)
21934ERING, O(FOR SOLENOID VALVE)
21934FGASKET
2182124030SCREW, 2ND THROTTLE VALVE SET
main21821-24030
2182134380SCREW, 2ND THROTTLE VALVE SET
main21821-34380
2187321010WASHER, PLUNGER
main21873-21010
2353744020SCREW(FOR 2ND REGULATOR COVER SET)
main23537-44020
9033903005
main90339-03005
9311913012
main93119-13012
9321915008
main93219-15008
9411040800
main94110-40800
9411540500
main94115-40500
9451100400
main94511-00400
9451100500
main94511-00500
9451100600
main94511-00600
9451100800
main94511-00800
9461110300
main94611-10300
9461110400
main94611-10400
9538101610
main95381-01610
76 parts on this diagram · 3 diagrams in section
