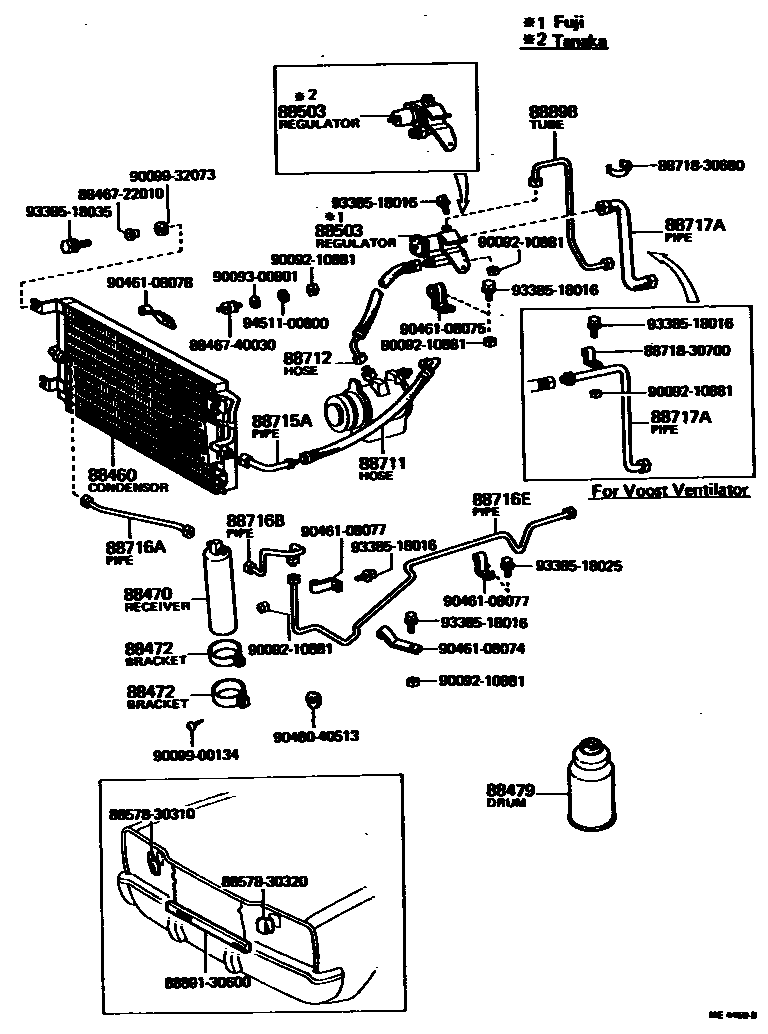

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0009 1

88460CONDENSER ASSY, COOLER

main88460-30370iMS8#,95197410-197802

main88460-30371iMS8#,95197802-197908

88470RECEIVER & DRYER ASSY, COOLER

main88471-30260iMS8#,95197410-197908

88472BRACKET, RECEIVER TANK, NO.1

main88473-30250×2iMS8#,95197410-197908

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main88434-30010×2iMS8#,95197410-197908

88503REGULATOR ASSY, PRESSURE

main88503-30270iMS8#,95..RHD197410-197707

FUJI

main88503-30280iMS8#,95..RHD197410-197707

TANAKA

main88503-30281iMS8#,95..RHD197707-197908

main88503-30290iMS8#,95..LHD197410-197707

FUJI

main88503-30300iMS8#,95..LHD197410-197707

TANAKA

main88503-30301iMS8#,95..LHD197707-197908

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-30410iMS85..ROY197511-197611

main88711-30430iMS8#,95..BTP,DLX,SAL,STD197410-197611

main88711-30440iMS8#,95197611-197707

FOR HEATER

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-12160iMS8#,95..LHD197802-197908

FOR HEATER

main88712-14170iMS8#,95..RHD197802-197908

main88712-14350iMS8#,95..LHD197802-197908

FOR BOOST VENTILATOR

main88712-22070iMS8#,95..RHD197611-197707

main88712-30450iMS8#,95..LHD197410-197707

main88712-30480iMS8#,95..RHD197410-197611

main88712-30500iMS8#,95197707-197802

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88715-30270iMS8#,95..BTP,DLX,SAL,STD197410-197611

main88715-30271iMS8#,95197802-197908

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-30880iMS8#,95197410-197802

main88716-30881iMS8#,95197802-197908

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-30800iMS8#,95..LHD197410-197802

main88716-30801iMS8#,95..LHD197802-197908

main88716-30870iMS8#,95..RHD..(BTP,DLX,SAL,STD)197410-197802

main88716-30872iMS8#,95..RHD..(BTP,DLX,SAL,STD)197802-197908

main88716-30890iMS85..RHD..ROY197511-197707

main88716-30891iMS85..RHD..ROY197707-197802

main88716-30892iMS85..RHD..ROY197802-197804

main88716-30893iMS85..RHD..ROY197804-197908

88716EPIPE, COOLER REFRIGERANT LIQUID, E

main88710-30271iMS8#,95..RHD..(BTP,DLX,SAL,STD)197802-197908

main88710-30280iMS8#,95..LHD197802-197908

main88710-30320iMS85..ARL197901-197908

main88716-30750iMS85..RHD..ROY197511-197804

main88716-30751iMS85..RHD..ROY197804-197908

main88716-30780iMS8#,95..RHD..(BTP,DLX,SAL,STD)197410-197707

main88716-30781iMS8#,95..RHD..(BTP,DLX,SAL,STD)197707-197802

main88716-30810iMS8#,95..LHD197611-197707

FOR BOOST VENTILATOR

main88716-30820iMS8#,95..LHD197410-197611

main88716-30821iMS8#,95..LHD197707-197802

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-30720iMS85..RHD..ROY197511-197707

main88717-30721iMS85..RHD..ROY197707-197908

main88717-30750iMS85..3FC..ARL;MS85,95..RHD..GEN;MS85..4F..SAL..ARL197410-197611

REAR

main88717-30780iMS8#,95..BTP,DLX,SAL,STD197410-197611

FRONT,FOR HEATER

main88717-30781iMS85..LHD..ROY;MS8#,95..BTP,DLX,SAL,STD197707-197908

W/HEATER

main88717-30810iMS85,88,95..RHD;MS83..RHD..4F..GEN;MS83..RHD..(3FC,3H)197410-197611

FRONT,FOR BOOST VENTILATOR

main88717-30870iMS8#,95..BTP,DLX,SAL,STD197707-197908

FRONT FOR BOOST VENTILATOR

main88717-30900iMS85,95..LHD197410-197908

REAR

88898TUBE SUB-ASSY, EQUALIZER

main88896-30300iMS8#,95..RHD197410-197611

main88896-30320iMS8#,95..LHD197410-197611

main88896-30330iMS85..LHD..ROY;MS8#,95..BTP,DLX,SAL,STD197611-197908

8846722010CUSHION, COOLER CONDENSER, NO.1

main88467-22010

8846740030CUSHION, COOLER CONDENSER, NO.1

main88467-40030

8857830310PAKING, COOLER AIR DUCT

main88578-30310

8857830320PAKING, COOLER AIR DUCT

main88578-30320

8871830680PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-30680

8871830700PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-30700

8889130600PACKING (FOR COOLER)

main88891-30600

9009210881

main90092-10881

9009300801

main90093-00801

9009900134

main90099-00134

9009932073

main90099-32073

9046108074

main90461-08074

9046108075

main90461-08075

9046108077

main90461-08077

9046108078

main90461-08078

9048040513

main90480-40513

9338518016

main93385-18016

9338518025

main93385-18025

9338518035

main93385-18035

9451100800

main94511-00800

33 parts on this diagram · 8 diagrams in section
