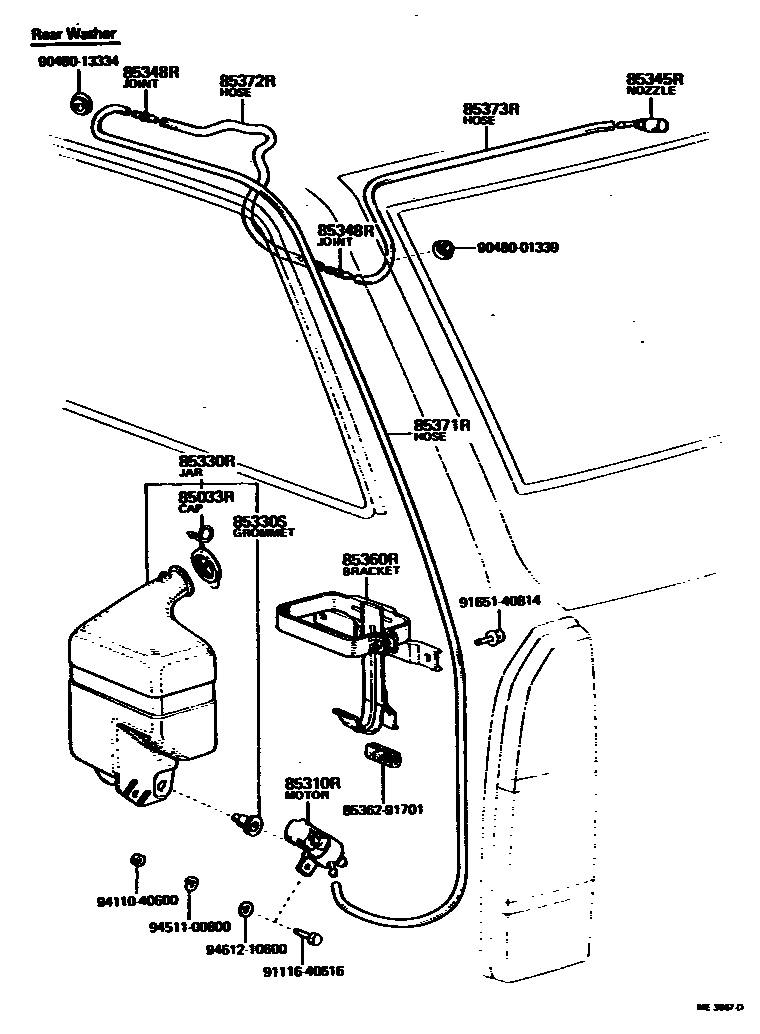

REAR WASHER

85033RCAP ASSY, REAR WASHER

main85033-36120iMS83,88197501-197908

85310RMOTOR ASSY, REAR WASHER

main85310-20100iMS83,88197702-197908

main85310-23010iMS83,88197501-197702

85330RJAR ASSY, REAR WASHER

main85330-23010iMS83,88197501-197702

main85330-23011iMS83,88197702-197908

85330SBUSH, REAR WASHER JAR

main90099-32057iMS83,88197501-197702

main90099-32089iMS83,88197702-197908

85345RNOZZLE, REAR WASHER

main85035-31010iMS83,88197501-197908

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-12011×2iMS83,88197501-197908

85360RBRACKET ASSY, REAR WASHER

main85360-31010iMS83,88197501-197908

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90446-06253iMS83,88197501-197908

L=2000(*H,L=1400)

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33031iMS83,88197501-197908

L=1000(*H,L=670)

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90446-06320iMS83,88197501-197908

L=1000(*H,L=620)

8536291701BRACKET, WASHER, NO.2

main85362-91701

9048001339

main90480-01339

9048013334

main90480-13334

9111640616

main91116-40616

9165140814

main91651-40814

9411040600

main94110-40600

9451100600

main94511-00600

9461210600

main94612-10600

18 parts on this diagram · 1 diagram in section
