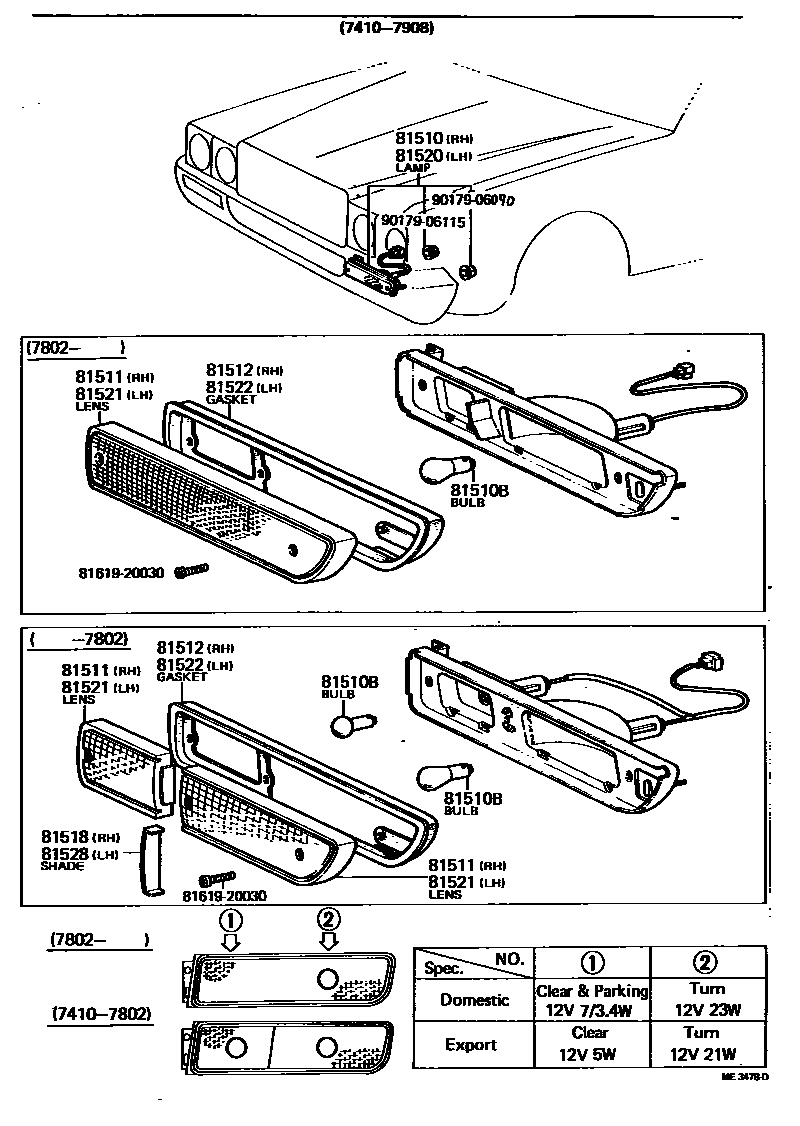

FRONT TURN SIGNAL LAMP

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-39215iMS8#,95,RS80197410-197802

AMBER-CLEAR

main81510-39305iMS8#,95,RS80197802-197908

AMBER

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11050iMS8#,95,RS80197410-197802

12V 5W,12V 5W

main99132-11210iMS8#,95,RS80197410-197908

12V 21W,12V 21W

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-30180iMS8#,95,RS80197410-197802

AMBER

main81511-30200iMS8#,95,RS80197802-197908

AMBER

main81519-30180iMS8#,95,RS80197410-197802

CLEAR

81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH

main81512-30180iMS8#,95,RS80197410-197908

81518SHADE, FRONT TURN SIGNAL LAMP, RH

main81517-30180iMS8#,95,RS80197410-197802

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-39225iMS8#,95,RS80197410-197802

AMBER-CLEAR

main81520-39305iMS8#,95,RS80197802-197908

AMBER

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-30170iMS8#,95,RS80197410-197802

AMBER

main81521-30360iMS8#,95,RS80197802-197908

AMBER

main81529-30170iMS8#,95,RS80197410-197802

CLEAR

81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH

main81522-30170iMS8#,95,RS80197410-197908

81528SHADE, FRONT TURN SIGNAL LAMP, LH

main81517-30180iMS8#,95,RS80197410-197802

8161920030

main81619-20030

9017906070

main90179-06070

9017906115

main90179-06115

12 parts on this diagram · 1 diagram in section
