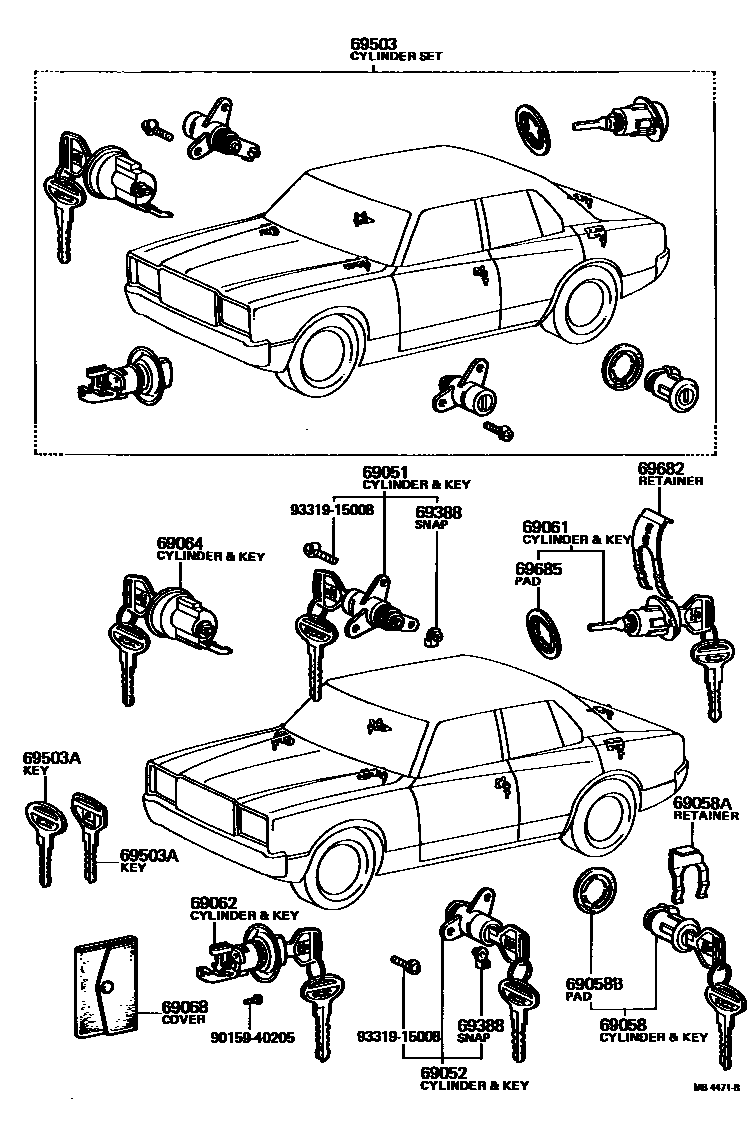

LOCK CYLINDER SET

0001 1 0002 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-39025iMS8#,95,RS80197410-197802

sub69051-39026

main69051-39026iMS8#,95,RS80197802-197908

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-39025iMS8#,95,RS80197410-197802

sub69052-39026

main69052-39026iMS8#,95,RS80197802-197908

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-39015iMS8#,95,RS80197410-197802

main69058-39016iMS8#,95,RS80197802-197908

69058ARETAINER, FUEL FILLER LID CYLINDER

main69581-30010iMS85,95,RS80197410-197908

main69681-20040iMS83,88197504-197908

69058BPAD, FUEL FILLER LID CYLINDER

main69685-12010iMS8#,95,RS80197410-197908

69061CYLINDER & KEY SET, LUGGAGE LOCK

main69055-30010iMS85,RS80197410-197908

main69055-30020iMS95197410-197908

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-22010iMS83,85,95..DLX,ROY,SAL197611-197908

main69056-30010iMS8#,95,RS80197410-197611

sub69056-22010

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-30010iMS8#,95,RS80197410-197802

sub69057-30011

main69057-30011iMS8#,95,RS80197802-197908

sub69057-22020

69068COVER SUB-ASSY, KEY

main69555-20010iMS8#,95,RS80197410-197908

69388SNAP, ROD(FOR DOOR LOCK)

main69377-30020iMS8#,95,RS80197410-197908

69503CYLINDER SET, LOCK

main69005-39015iMS85,RS80197410-197611

sub69005-39016

main69005-39016iMS85,RS80197611-197802

main69005-39017iMS85..DLX,ROY,SAL197802-197908

main69005-39035iMS95197410-197611

sub69005-39036

main69005-39036iMS95197611-197802

main69005-39037iMS95197802-197908

main69005-39045iMS83,88197501-197611

sub69005-39046

main69005-39085iMS83197611-197908

main69005-39095iMS88197611-197908

main69005-39105iMS85,RS80..BTP197802-197908

69503AKEY, BLANK

main90999-00069iMS8#,95,RS80197410-197908

MASTER KEY,FOR MASTER KEY

sub90999-00099

main90999-00070iMS8#,95,RS80197410-197908

FOR SUB KEY

sub90999-00100

69682RETAINER, LOCK CYLINDER

main69561-30010iMS85,95,RS80197410-197908

main69682-91501iMS83,88197501-197908

69685PAD, LOCK CYLINDER

main69563-30011iMS85,RS80197410-197908

main69563-30021iMS95197410-197908

main69685-91601iMS83,88197501-197908

9015940205

main90159-40205

9331915008

main93319-15008

16 parts on this diagram · 2 diagrams in section
