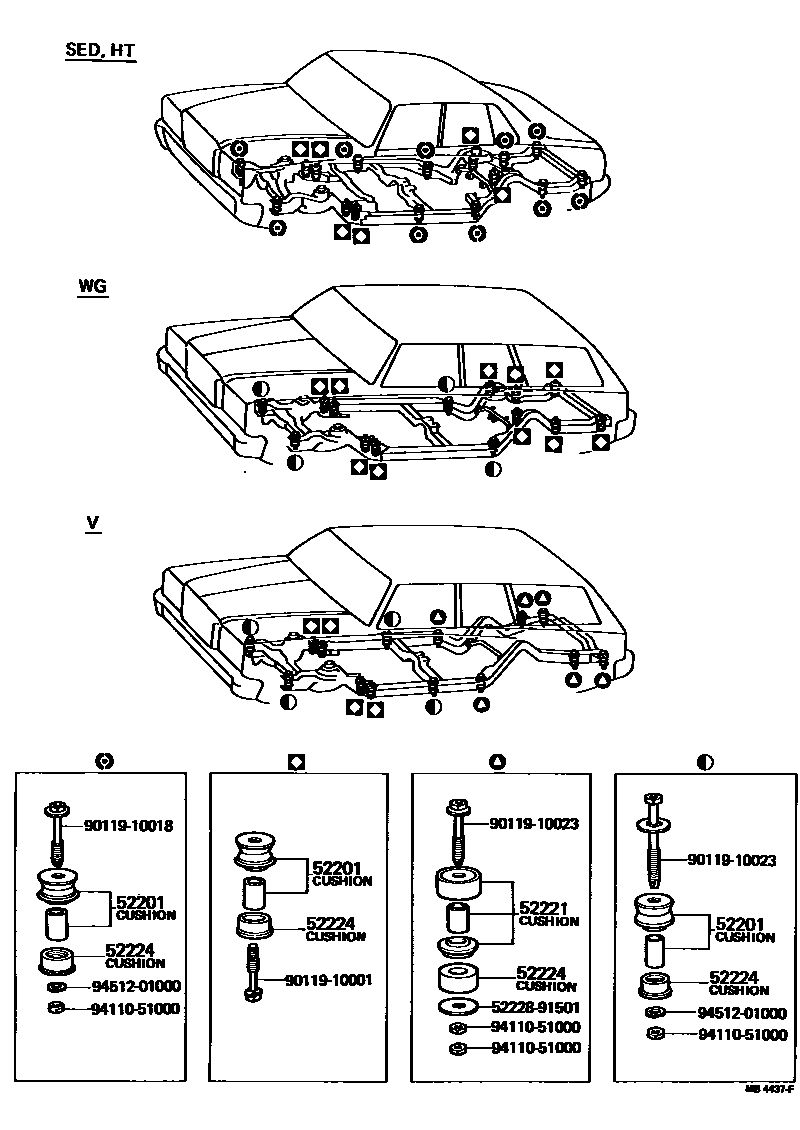

BODY MOUNTING

52201CUSHION ASSY, BODY MOUNTING, UPPER

main52201-30905×14iMS83,85,95,RS80197410-197908

52221CUSHION, BODY MOUNT, NO.2 UPPER

52224CUSHION, BODY MOUNT, NO.2 LOWER

5222891501HOLDER, BODY MOUNT BOLT SPACER, NO.2

main52228-91501

9011910001

main90119-10001

9011910018

main90119-10018

9011910023

main90119-10023

9411051000

main94110-51000

9451201000

main94512-01000

9 parts on this diagram · 1 diagram in section
