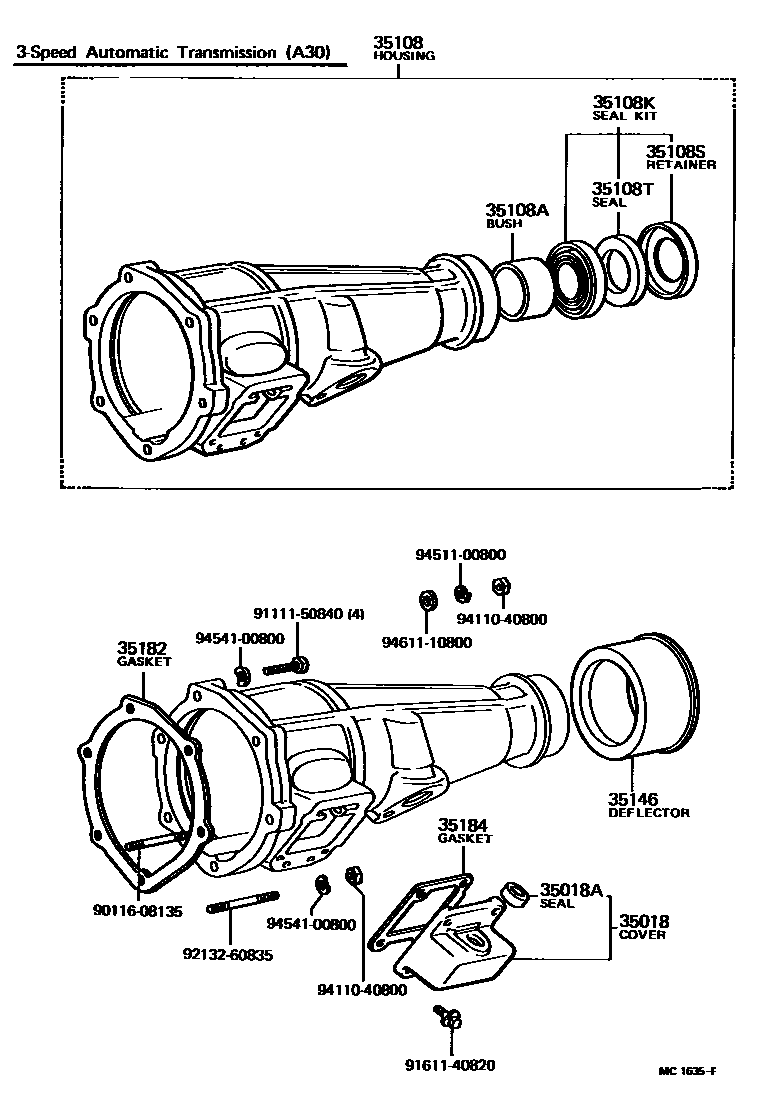

EXTENSION HOUSING (ATM)

0001 1 0002 1

35018COVER SUB-ASSY, EXTENSION HOUSING

main35018-30011iMS83,85,95..ATM197410-197611

35018ASEAL, OIL (FOR EXTENSION HOUSING COVER)

main90311-10082iMS83,85,95..ATM197410-197611

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-30050iMS83,85,95..ATM197410-197608

main35108-30051iMS83,85,95..ATM197608-197611

main35108-30080iMS83,85,95..ATM197611-197904

main35108-30090iMS83,85,95..ATM197904-197908

35108ABUSH, BIMETAL FORMED (FOR ATM EXTENSION HOUSING)

main90999-73035iMS83,85,95..ATM197410-197611

35108KSEAL KIT, OIL(FOR AUTOMATIC EXTENSION HOUSING)

main04332-30020iMS83,85,95..ATM197410-197908

35108SRETAINER, EXTENSION HOUSING DUST SEAL (ATM)

main33145-30010iMS83,85,95..ATM197410-197908

35108TSEAL, DUST (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90303-38010iMS83,85,95..ATM197410-197908

35146DEFLECTOR, EXTENSION HOUSING DUST (ATM)

main33146-30010iMS83,85,95..ATM197410-197908

35182GASKET, EXTENSION HOUSING (ATM)

main35182-22010iMS83,85,95..ATM197611-197908

main35182-30021iMS83,85,95..ATM197410-197611

35184GASKET, EXTENSION HOUSING COVER

main35184-30011iMS83,85,95..ATM197410-197611

9011608135

main90116-08135

9111150840

main91111-50840

9161140820

main91611-40820

9213260835

main92132-60835

9411040800

main94110-40800

9451100800

main94511-00800

9454100800

main94541-00800

9461110800

main94611-10800

18 parts on this diagram · 2 diagrams in section
