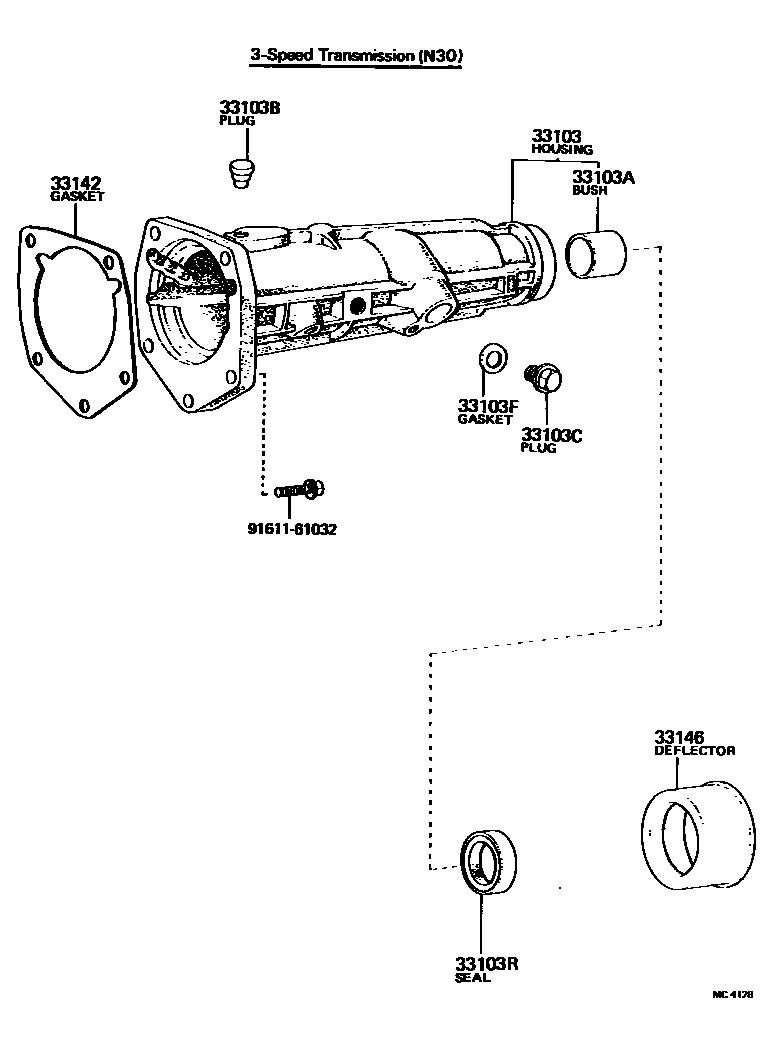

EXTENSION HOUSING (MTM)

0001 1 0002 1 0003 1

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-20090iMS8#,95,RS80..4F197410-197908

main33103-30120iMS8#,RS80..3H197410-197510

main33103-30150iMS8#,RS80..3H197510-197908

main33103-31021iRS80..RHD..4H197410-197908

main33103-31031iRS80..LHD..4H197410-197908

33103ABUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90999-72023iMS8#,RS80..4F,4H197510-197908

main90999-73077iMS8#,RS80..3H197510-197908

33103BPLUG, BREATHER(FOR TRANSMISSION EXTENSION HOUSING)

main90930-03001iMS8#,RS80..3H197410-197908

main90930-03038iRS80..4H197410-197908

33103CPLUG, NO.1(FOR EXTENSION HOUSING)

main90341-18002iMS8#,RS80..3H197410-197510

33103FGASKET(FOR EXTENSION HOUSING PLUG NO.1)

main12157-10010iMS8#,RS80..3H197410-197510

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-38140iMS8#,RS80..3H197410-197908

33142GASKET, EXTENSION HOUSING(MTM)

main33142-30030iMS8#,RS80..3H197410-197510

main33142-30040iMS8#,RS80..3H197510-197908

main33142-31010iMS8#,95,RS80..4F,4H197410-197908

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-30010iMS8#,95,RS80..MTM197410-197908

9161161032

main91611-61032

9 parts on this diagram · 3 diagrams in section
