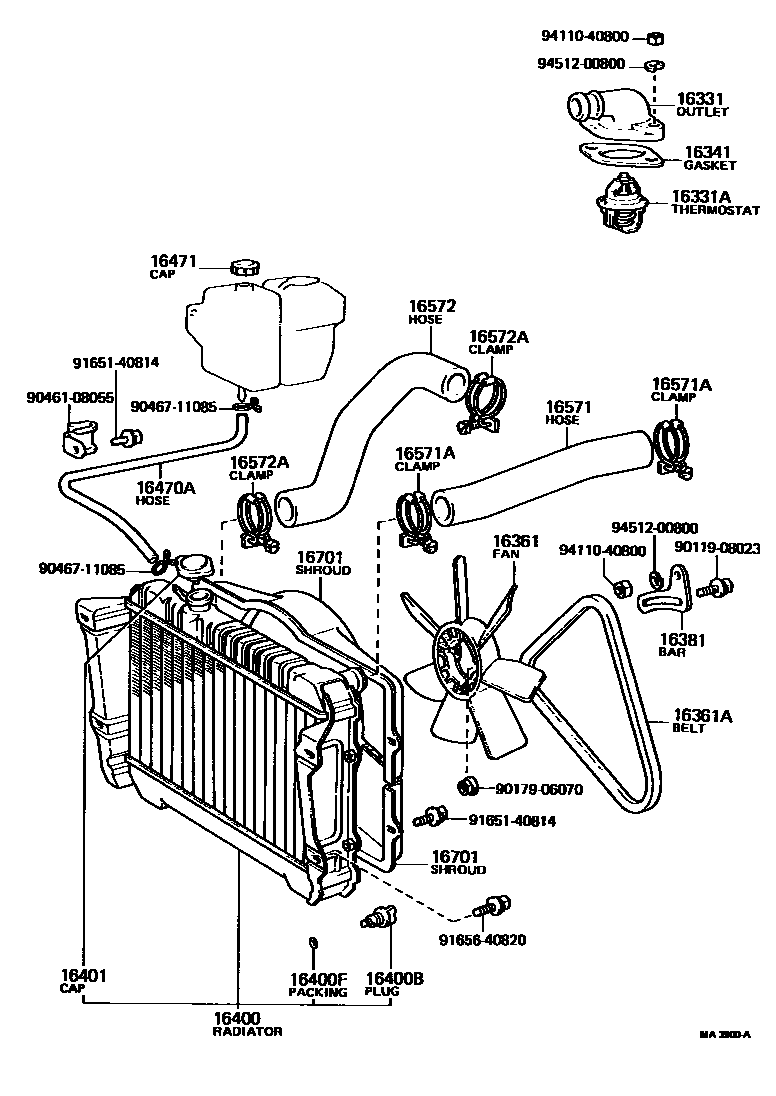

RADIATOR & WATER OUTLET

0001 1 0002 1 0004 1 0005 1

16331OUTLET, WATER

main16331-41041i4M..MS8#,95..EUR,GEN197604-197706

main16331-41071i4M..MS8#,95..EUR,GEN197706-197908

sub16331-43020

main16331-44020i5R..RS80197410-197908

main16331-45020i4M..MS83,85..ARL197604-197706

main16331-45021i4M..MS83,85..ARL197706-197908

sub16331-45030

16331ATHERMOSTAT

main90916-03033i5R..RS80197410-197608

WAX 82-95 FUJI-THOMSON

main90916-03034i4M..MS8#,95197608-197908

WAX 82-95 FUJI-THOMSON

main90916-03037i4M..MS8#,95197905-197908

WAX 82-95 KUZEH

sub90916-03083

16341GASKET, WATER OUTLET

main16341-38010i4M..MS8#,95197808-197908

sub16341-38012

main16341-40010i5R..RS80197410-197701

main16341-49010i5R..RS80197701-197809

16361FAN

main16361-40050i5R..RS80197410-197908

4 BLADES

main16361-41060i4M..MS8#,95197410-197707

7 BLADES

main16361-41070i4M..MS8#,95197707-197908

7 BLADES

sub16361-41071

main16361-44030i5R..RS80..LHD..4H197504-197510

IRAQ TAXI SPEC.4 BLADES

main16361-44031i5R..RS80..LHD..(4F,4H)197510-197802

IRAQ TAXI SPEC.5 BLADES

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02074i4M..MS8#,95197707-197908

DOUBLE V BELTS

main99322-00930i5R..RS80..LHD..(4F,4H)197809-197908

MIDDLE EAST SPEC. L=930

main99322-00940i5R..RS80197809-197908

L=940

main99522-10904i4M..MS8#,95..BTP,DLX,SAL,STD197410-197611

L=904

sub99322-00900

main99522-10925i4M..MS85..ROY197511-197611

L=925,55A ALTERNATOR

sub99322-00920

main99522-10934i5R..RS80197410-197512

L=934

main99522-10942i5R..RS80197512-197809

L=942

16381BAR, FAN BELT ADJUSTING

main16381-41030i4M..MS8#,95..GEN197604-197611

main16381-44011i5R..RS80197410-197908

main16381-45011i4M..MS83,85..ARL197604-197611

16400RADIATOR ASSY

main16400-44130i5R..RS80197410-197908

main16400-45050i4M..MS85,88,95..MTM;4M..MS83..MTM..(EUR,GEN)197604-197908

main16400-45060i4M..MS83,85,95..ATM197410-197604

main16400-45100i4M..MS83,85..4F..ARL197604-197908

main16400-45110i4M..MS83,85..3FC..ARL197604-197908

main16400-45150i4M..MS85..MTM..GEN;4M..MS83,88,95..MTM;4M..MS85..4F..SAL..EUR197905-197908

MIDDLE EAST,FIN PITCH 3.5

main16400-45160i4M..MS83,85,95..ATM..(EUR,GEN)197905-197908

MIDDLE EAST,FIN PITCH 3.5

16400BPLUG, RADIATOR DRAIN COCK

main90910-09054i5R..RS80197410-197908

16400FPACKING(FOR RADIATOR DRAIN COCK)

main96710-01007i4M..MS8#,95197410-197908

sub96711-19007

16401CAP SUB-ASSY, RADIATOR

main16401-36010i4M..MS83,85,95197410-197811

MAKER "NIPPON DENSO"

main16401-36011i4M..MS83,85,95197811-197908

MAKER "NIPPON DENSO"

main16401-41020i4M..MS88197501-197811

MAKER "TOYO RADIATOR"

main16401-41021i4M..MS88197811-197908

MAKER "TOYO RADIATOR"

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12521i4M..MS8#,95197410-197908

16471CAP SUB-ASSY, RESERVE TANK

main85332-20030i4M..MS8#,95197410-197908

16571HOSE, RADIATOR, INLET

main16571-41050i4M..MS8#,95197410-197706

main16571-41051i4M..MS8#,95197706-197908

main16571-44040i5R..RS80197410-197908

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90460-47036×2i4M..MS8#,95197410-197706

main90467-37001i4M..MS8#,95197706-197908

WATER OUTLET SIDE

sub90467-37003

main96111-10430×2i5R..RS80197410-197908

16572HOSE, RADIATOR, OUTLET

main16572-41030i4M..MS8#,95197410-197505

main16572-41031i4M..MS8#,95197505-197908

main90916-01027i5R..RS80197410-197908

ENGINE INLET

main90916-01140i5R..RS80197410-197908

RADIATOR OUTLET

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90460-47036×4i5R..RS80197410-197908

16701SHROUD SUB-ASSY, FAN

main16701-44070i5R..RS80197410-197606

main16701-44080i5R..RS80197606-197908

main16711-41030i4M..MS8#,95197410-197707

UPPER

main16711-41031i4M..MS8#,95197707-197908

UPPER

main16712-41030i4M..MS8#,95197410-197707

LOWER

main16712-41031i4M..MS8#,95197707-197908

LOWER

9011908023

main90119-08023

9017906070

main90179-06070

9046108055

main90461-08055

9046711085

main90467-11085

9165140814

main91651-40814

9165640820

main91656-40820

9411040800

main94110-40800

9451200800

main94512-00800

25 parts on this diagram · 4 diagrams in section
