ENGINE OIL PUMP

0001 1 0002 1

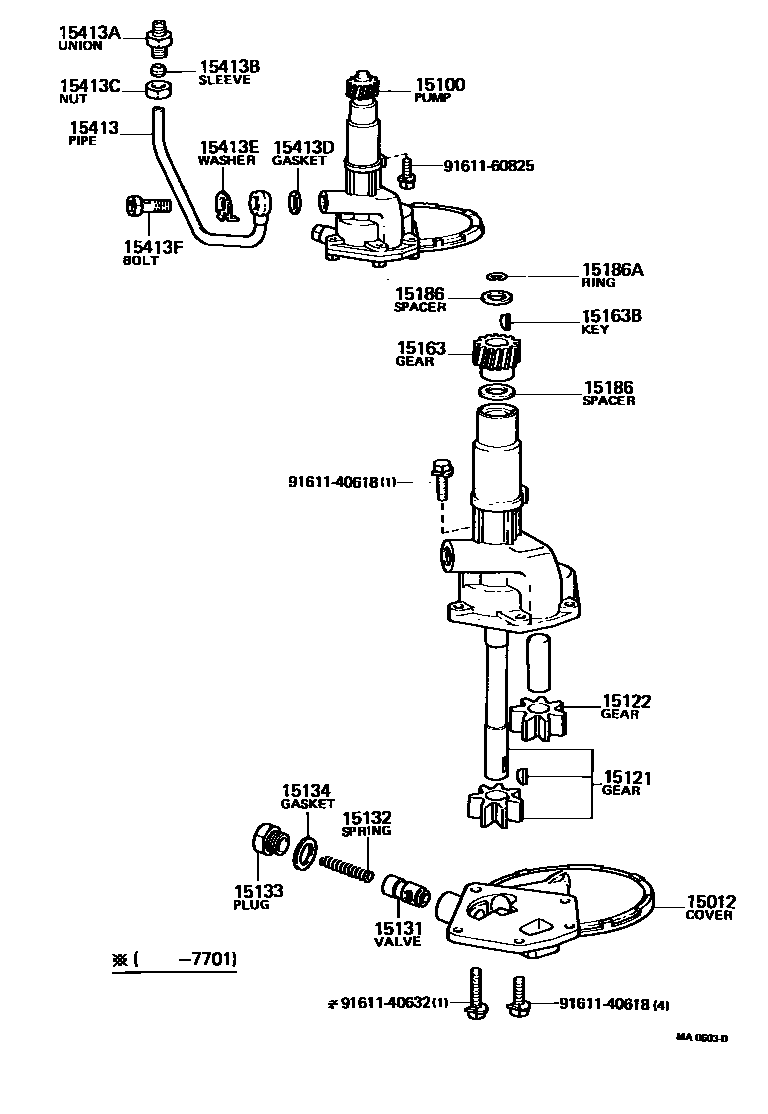

15012COVER SUB-ASSY, OIL PUMP

main15012-45011i4M..MS8#,95197410-197701

main15012-45012i4M..MS8#,95197701-197908

15100PUMP ASSY, OIL

main15100-44011i5R..RS80197410-197908

main15100-45020i4M..MS8#,95197410-197701

sub15100-45021

main15100-45021i4M..MS8#,95197701-197908

15121GEAR, OIL PUMP DRIVE

main15102-45010i4M..MS8#,95197410-197908

sub15102-43050

15122GEAR, OIL PUMP DRIVEN

main15122-45010i4M..MS8#,95197410-197908

N=7

sub15122-43050

15131VALVE, OIL PUMP RELIEF

main15131-40010i5R..RS80197410-197908

main15131-41010i4M..MS8#,95197410-197908

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i5R..RS80197410-197908

main15132-46010i4M..MS8#,95197410-197908

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i5R..RS80197410-197908

main15133-41030i4M..MS8#,95197608-197908

sub15133-20010

15134GASKET, OIL PUMP RELIEF VALVE

main15134-20010i5R..RS80197410-197908

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-45020i4M..MS8#,95197410-197908

N=16

15163BKEY, WOODRUFF(FOR OIL PUMP DRIVE SHAFT GEAR)

main90280-03005i4M..MS8#,95197410-197908

15186SPACER(FOR OIL PUMP DRIVE SHAFT GEAR)

main15186-41010i4M..MS8#,95197410-197908

15186ARING, SHAFT SNAP(FOR OIL PUMP DRIVE SHAFT GEAR)

main90520-11031i4M..MS8#,95197410-197908

15413PIPE, OIL PUMP OUTLET

main15403-41020i4M..MS8#,95197410-197908

main15413-40010i5R..RS80197410-197908

15413AUNION(FOR OIL PUMP OUTLET PIPE)

main90404-16008i5R..RS80197410-197908

main96335-12009i4M..MS8#,95197410-197908

15413BSLEEVE, BALL(FOR OIL PUMP OUTLET PIPE)

main90410-11005i5R..RS80197410-197908

main96395-72000i4M..MS8#,95197410-197908

15413CNUT, UNION(FOR OIL PUMP OUTLET PIPE)

main90402-16042i5R..RS80197410-197908

main96315-12009i4M..MS8#,95197410-197908

15413DGASKET(FOR OIL PUMP OUTLET PIPE)

main90430-18012i4M..MS8#,95197410-197908

15413EWASHER, LOCK(FOR OIL PUMP OUTLET PIPE)

main15454-41010i4M..MS8#,95197410-197611

sub15454-41011

main15454-41011i4M..MS8#,95197611-197908

15413FBOLT, UNION(FOR OIL PUMP OUTLET PIPE)

main90401-18079i4M..MS8#,95197410-197908

sub90401-18014

9161140618

main91611-40618

9161140632

main91611-40632

9161160825

main91611-60825

22 parts on this diagram · 2 diagrams in section
