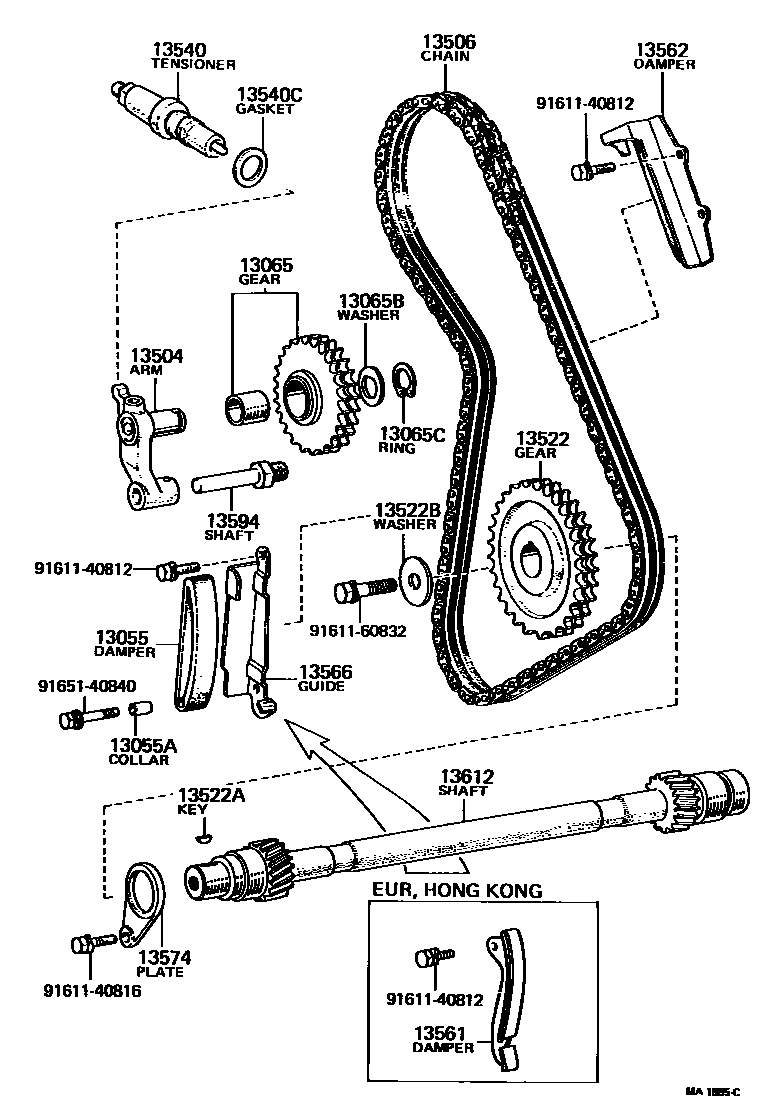

TIMING CHAIN
13055DAMPER SUB-ASSY, CHAIN
13055ACOLLAR(FOR CHAIN DAMPER)
13065GEAR SUB-ASSY, TENSION
13065BWASHER, TIMING CHAIN TENSION GEAR CLAW
13065CRING, SHAFT SNAP(FOR TENSION GEAR)
13504ARM SUB-ASSY, TENSION
13522GEAR, PUMP DRIVE SHAFT
N=30
13522AKEY, WOODRUFF(FOR PUMP DRIVE SHAFT GEAR)
13522BWASHER, PLATE(FOR PUMP DRIVE SHAFT GEAR)
13540TENSIONER ASSY, CHAIN, NO.1
13540CGASKET(FOR CHAIN TENSIONER)
13561DAMPER, CHAIN VIBRATION, NO.1
FOR HONG KONG
13562DAMPER, CHAIN VIBRATION, NO.2
13566GUIDE, CHAIN DAMPER
13574PLATE, PUMP DRIVE SHAFT
13594SHAFT, TENSION GEAR ARM
13612SHAFT, PUMP DRIVE
9161140812
main91611-40812
9161140816
main91611-40816
9161160832
main91611-60832
9165140840
main91651-40840
22 parts on this diagram · 2 diagrams in section
