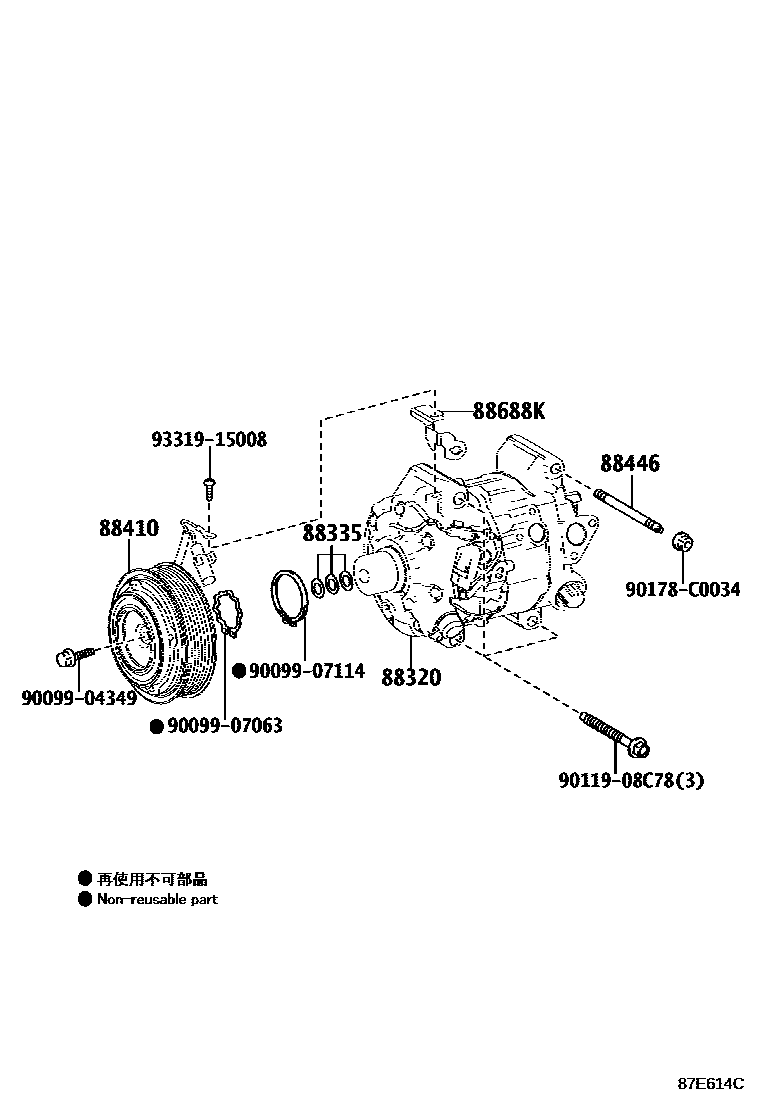

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88320COMPRESSOR ASSY, COOLER

main88320-0N010iGRS218201501-201604

main88320-0N020iARS212201508-201601

main88320-3A510iGRS218201604-201712

88335GASKET KIT, OVERHAUL

main88335-14020iARS212,GRS218201501-201712

88410CLUTCH ASSY, MAGNET

main88410-0N010iARS212..B201712-201910

main88410-33190iGRS218201501-201712

88446BOLT, IDLE PULLEY

main88446-60050×2iARS212201508-201712

88688KBRACKET, COOLER COMPRESSOR

main88688-33570iARS212,GRS218201501-201712

9009904349

main90099-04349

9009907063

main90099-07063

9009907114

main90099-07114

9011908C78

main90119-08C78

90178C0034

main90178-C0034

9331915008

main93319-15008

11 parts on this diagram · 2 diagrams in section
