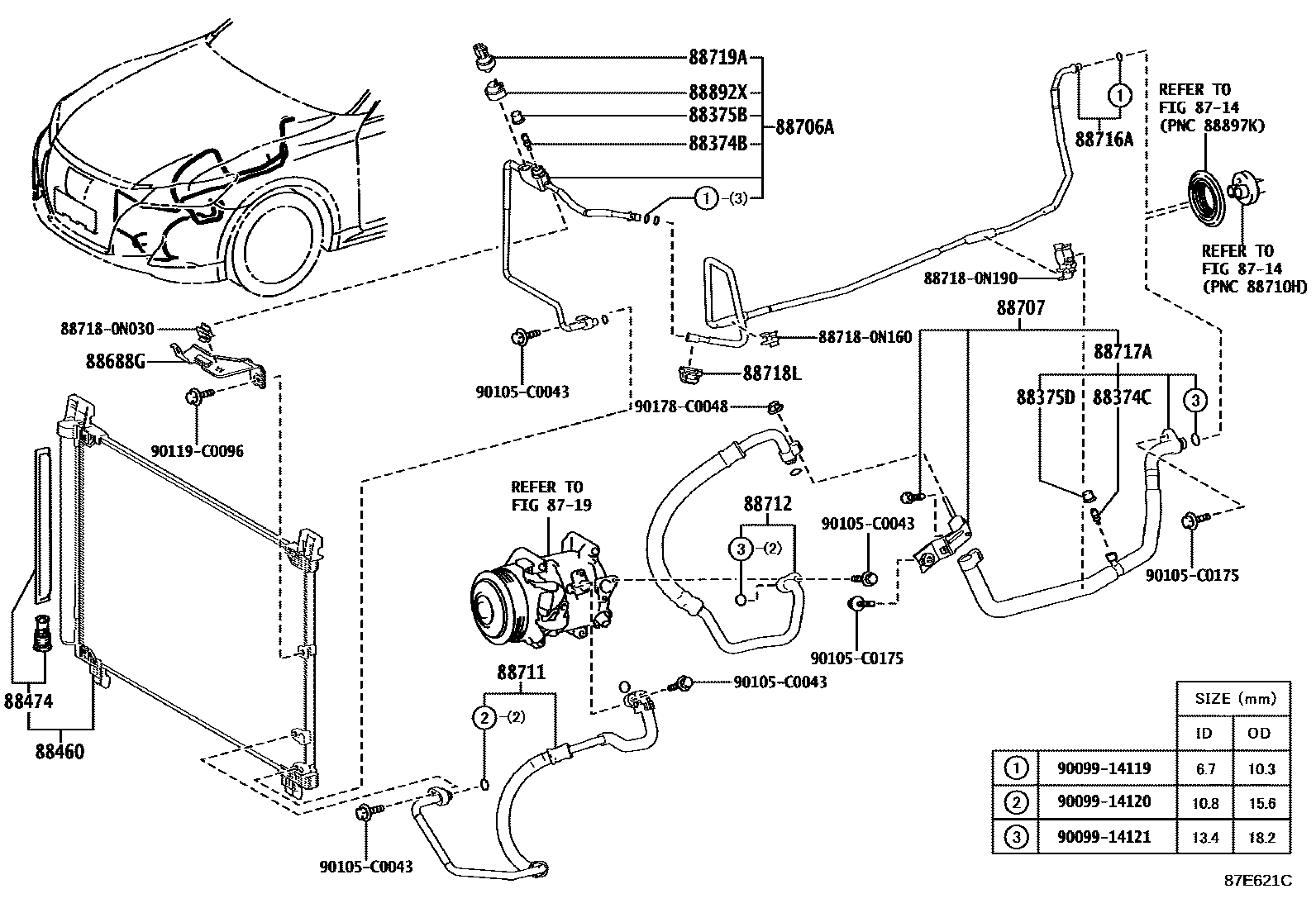

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1FRONT W/O(REAR COOLER) 0002 1FRONT W(REAR COOLER) 0003 1FRONT W/O(REAR COOLER) 0004 1FRONT W(REAR COOLER) 0005 1REAR

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010iARS212..B201712-201910

88374CVALVE, SERVICE, NO.2

main88374-30010iARS212,GRS218201501-201712

88375BCAP, SERVICE VALVE, NO.1

main88375-0D010iARS212,GRS218201501-201712

88375DCAP, SERVICE VALVE, NO.2

main88375-30290iARS212,GRS218201501-201712

88460CONDENSER ASSY, COOLER

main88460-0N040iGRS218201501-201712

main88460-0N050iARS212201508-201712

88474DRYER, COOLER

main88474-12010iARS212..P,Q,S,U201712

88688GBRACKET, COOLER REFRIGERANT PIPE

main88688-0N080iARS212,GRS218201501-201712

88706ATUBE SUB-ASSY, LIQUID, A

main88706-0N090iGRS218201501-201712

main88706-0N100iARS212..B201712-201910

88707PIPE SUB-ASSY, SUCTION

main88707-0N070iGRS218..B,Q,S201501-201712

main88707-0N080iGRS218..U201501-201712

main88707-0N090iARS212..P,Q,S201712

main88707-0N100iARS212..U201508-201712

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-0N050iGRS218201501-201712

main88711-0N060iARS212..B201712-201910

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-0N050iGRS218201501-201712

main88712-0N060iARS212201508-201712

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-0N030iGRS218..B,Q,S201501-201712

main88716-0N040iGRS218..U201501-201712

main88716-0N050iARS212..P,Q,S201712

main88716-0N060iARS212..U201712

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-0N010iGRS218..B,Q,S201501-201712

main88717-0N020iGRS218..U201501-201712

main88717-0N030iARS212..B201712-201910

main88717-0N040iARS212..U201508-201712

88718LCLAMP, PIPING

main88718-2D150iARS212,GRS218201501-201712

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iARS212,GRS218201501-201712

88892XCOVER, COOLER, NO.2

main88892-50120iARS212,GRS218201501-201712

887180N030PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-0N030

887180N160PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-0N160

887180N190PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-0N190

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

90105C0043

main90105-C0043

90105C0175

main90105-C0175

90119C0096

main90119-C0096

90178C0048

main90178-C0048

28 parts on this diagram · 5 diagrams in section
