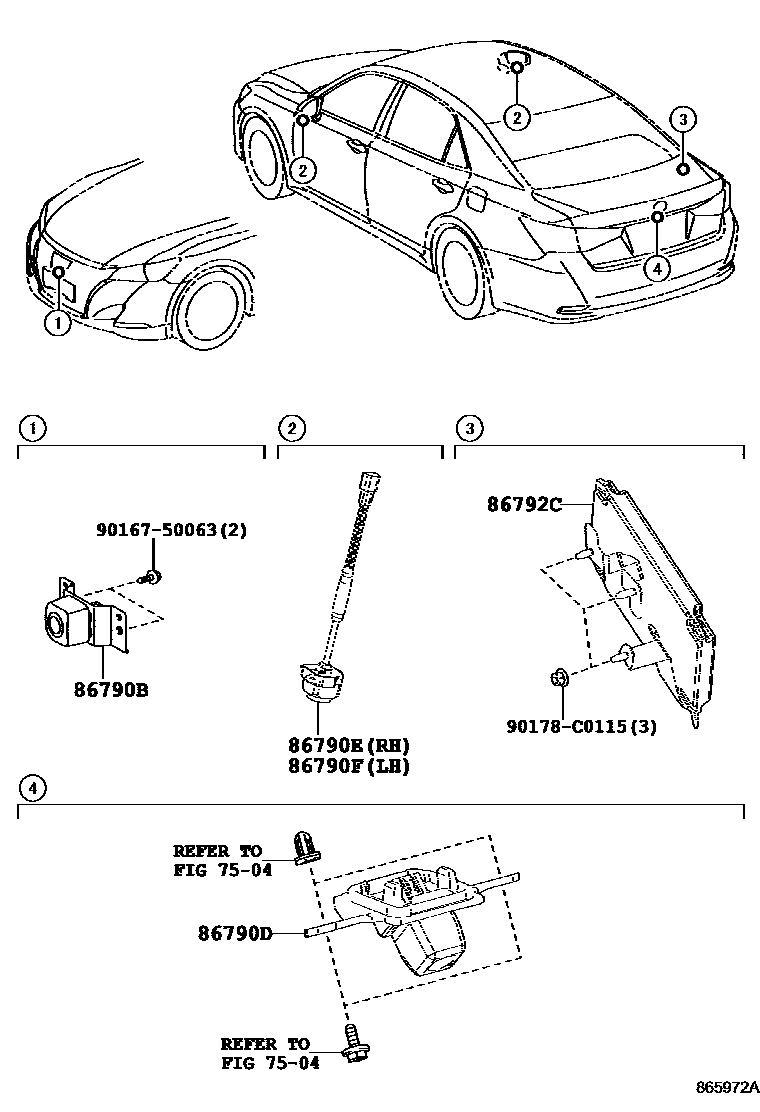

CAMERA & REAR MONITOR DISPLAY

7504REAR MOULDING

→ Go to FIG 75-04

86790BCAMERA ASSY, TELEVISION, FR

main86790-30210-B0iARS212..P,Q,U201712

GREY METALLIC,062 ,1F7 ,202 ,3R0 ,4X5 ,8X8

86790DCAMERA ASSY, TELEVISION, RR

main86790-0N020iARS212,GRS218..Q,S,U201501-201712

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86790-0N040iARS212..P,Q,U201712

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86790-0N030iARS212..P,Q,U201712

86792CCOMPUTER, PARKING ASSIST

main86792-30440iARS212..P201712

main86792-30450iARS212..Q,U201712

main86792-30341iARS212,GRS218..U201501-201712

WITH(PANORAMIC VIEW MONITOR)

9016750063

main90167-50063

90178C0115

main90178-C0115

8 parts on this diagram · 1 diagram in section
